2-8 IC697VAL348 8-Channel, 16-bit Digital-to-Analog Converter Board User’s Manual GFK-2059
– December 2001
2
Digital Code Selection
The DAC board is factory configured for offset binary coding. To change the DAC input coding to
two’s complement binary, remove jumper JA and install jumper JB (see Figure 2-3 below).

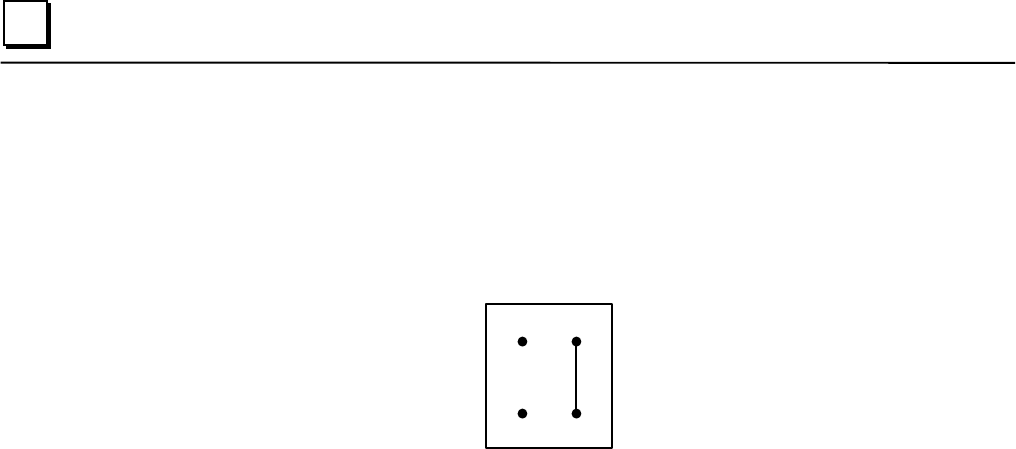

Figure 2-3: Digital Code Selection
JA
JB
(TWO’S COMPLEMENT CODE)(OFFSET BINARY)
