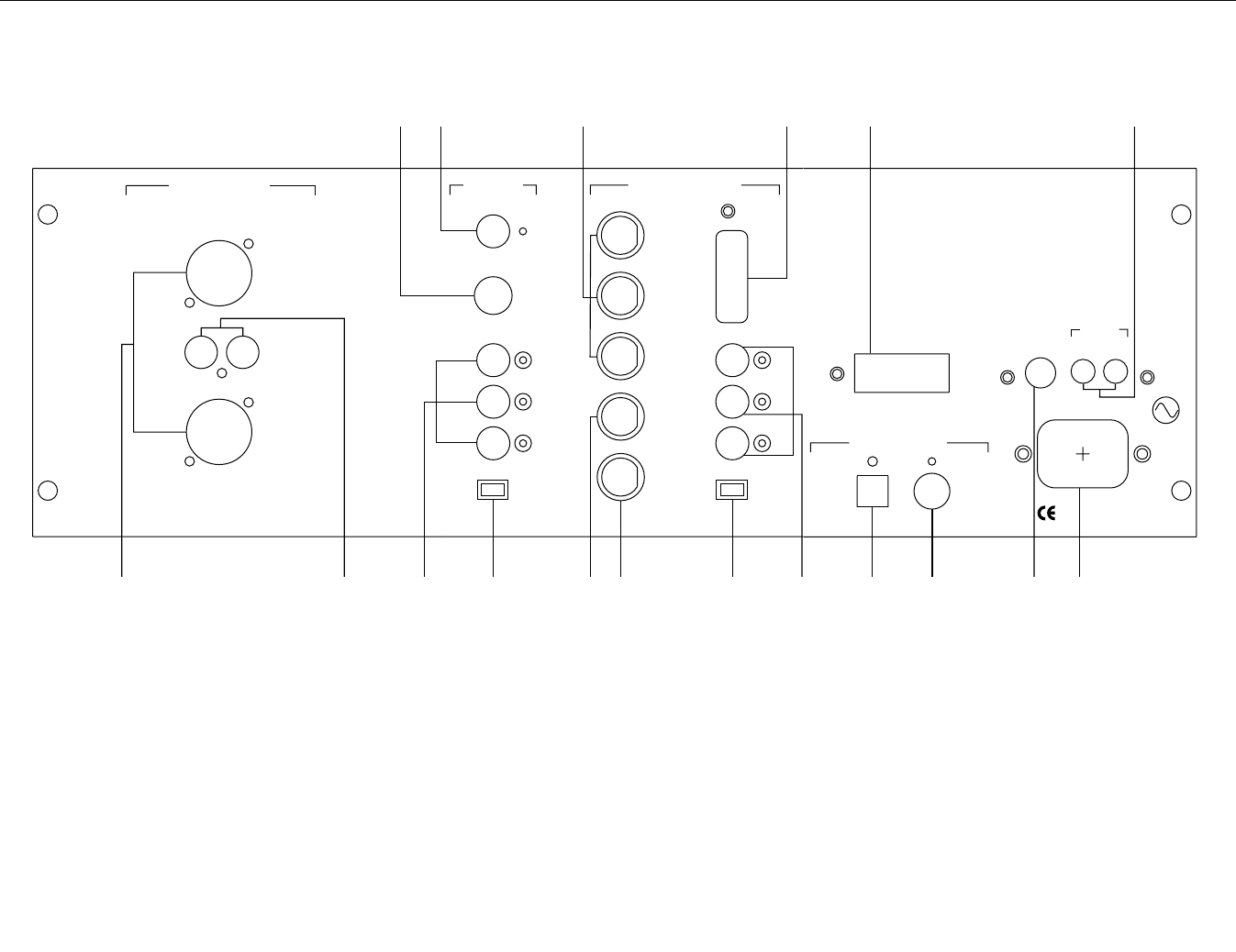

Figure 2 The DVD Standard Back Panel
INOUT
RC-5
IN
12VDC
MADE IN USA
COAXOPTICS
DIGITAL OUTPUTS
DVD Standard
50/60Hz
RS-232
R
COMPOSITE
S-VIDEO
VIDEO OUT
VIDEO OUT
PROGRESSIVE SCAN
YPbPr
G
HSYNC
B
VSYNC
COMPONENT
PAL
NTSC RGB
Pb
Y
Pr
Pb
Y
Pr
LEFT
ANALOG OUTPUTS
RIGHT
LEFT
RIGHT
NO USER SERVICEABLE PARTS INSIDE
22 26 29 363423
3525 33 32 3731282120 2724 30
Analog Audio Outputs
20 Left and Right Balanced
Audio Outputs
21 Left and Right Single-ended
Audio Outputs
Standard Video Outputs
22 Composite Standard
Video Output
23 S-Video Standard
Video Output
24 Component Standard
Video Output
25 NTSC/PAL Switch
Progressive Scan
Video Outputs
26 Progressive 480p Video
Outputs R, G, and B
27 HSYNC 480p Horizontal
Sync Output
28 VSYNC 480p Vertical
Sync Output
29 DB-15 Progressive
RGB/YPbPr Output
30 Progressive Video
Outputs Y, Pb, and Pr
31 RGB/YPbPr Switch
Digital Audio Outputs
32 Coaxial Digital Output
33 Optics Digital Output
Remote Connections
34 RS-232 Communication Port
35 RC-5 In
36 12 VDC Out and In
Power
37 IEC Connector
