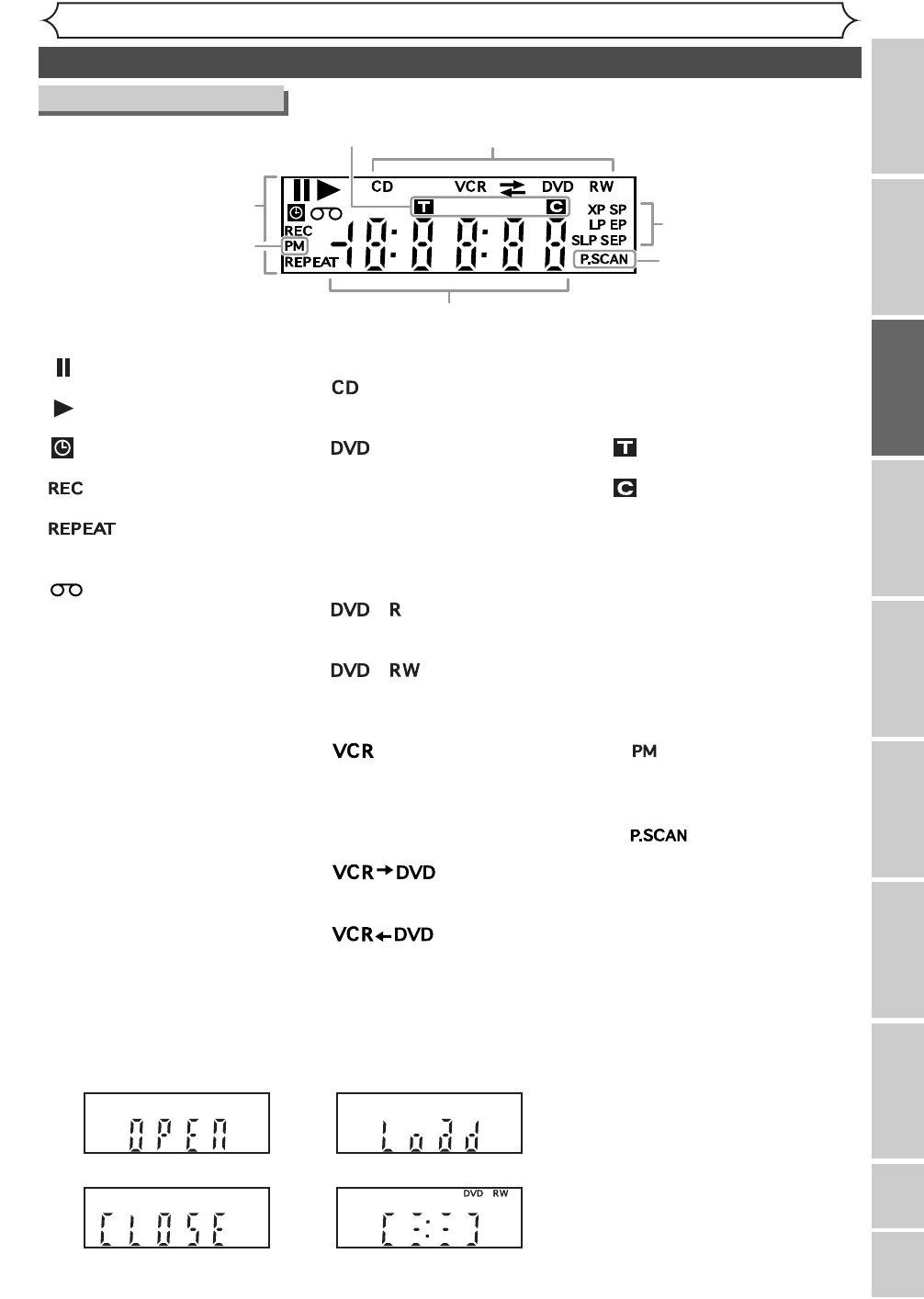

Front Panel Display Guide
1. Current status of the unit
: Appears when disc/tape
play is paused.
: Appears when playing a
disc/tape.
: Appears when timer pro-
gramming has been set.
: Appears during recording
process.
:
Appears when repeat
playback is turned on.
: Appears when a tape is in
the unit.
2. Disc type and Current
status of the unit
:
Appears when an audio CD
or a disc with MP3 files is
inserted in the DVD/VCR.
:
Appears when a DVD disc
is inserted in the DVD/VCR.
Appears when a DVD
timer recording is pro-
ceeding.
Appears when DVD is in
the timer recording stand-
by mode.
:
Appears when a DVD-R disc
is inserted in the DVD/VCR.
:
Appears when a DVD-
RW disc is inserted in
the DVD/VCR.
:
Appears when a VCR
timer recording is pro-
ceeding.
Appears when VCR is in
the timer recording stand-
by mode.
:
Appears during VCR to DVD
duplication process.
:
Appears during DVD to VCR
duplication process.
Display message
1
2
3
4
3. Recording speed
Indicates the recording speed of
the disc or the tape.
4. Title/Track and Chapter
mark
: Appears when indicating
a title/track number.
: Appears when indicating
a chapter number.
5. Displays the following
•Playing time / remaining time
• Current title / chapter / track
number
• Recording time
• Clock
• Channel number
• VCR tape counter
•OTR remaining time
6. : Appears when the cur-
rent time is in the ‘pm’
portion of the day.
7. :
Appears when the pro-
gressive scan video out-
put is activated.
1. Appears when the disc tray is
opening.
2. Appears when the disc tray is
closing or closed.
3. Appears when a disc is loading
inside the DVD/VCR.
4. Appears when data is record-
ing onto the disc.
