Functional overview
Before you start
Changing the SETUP menu
Playing discs
VCR functionsBefore you start Connections
Getting started
Recording Editing
Others Español
7

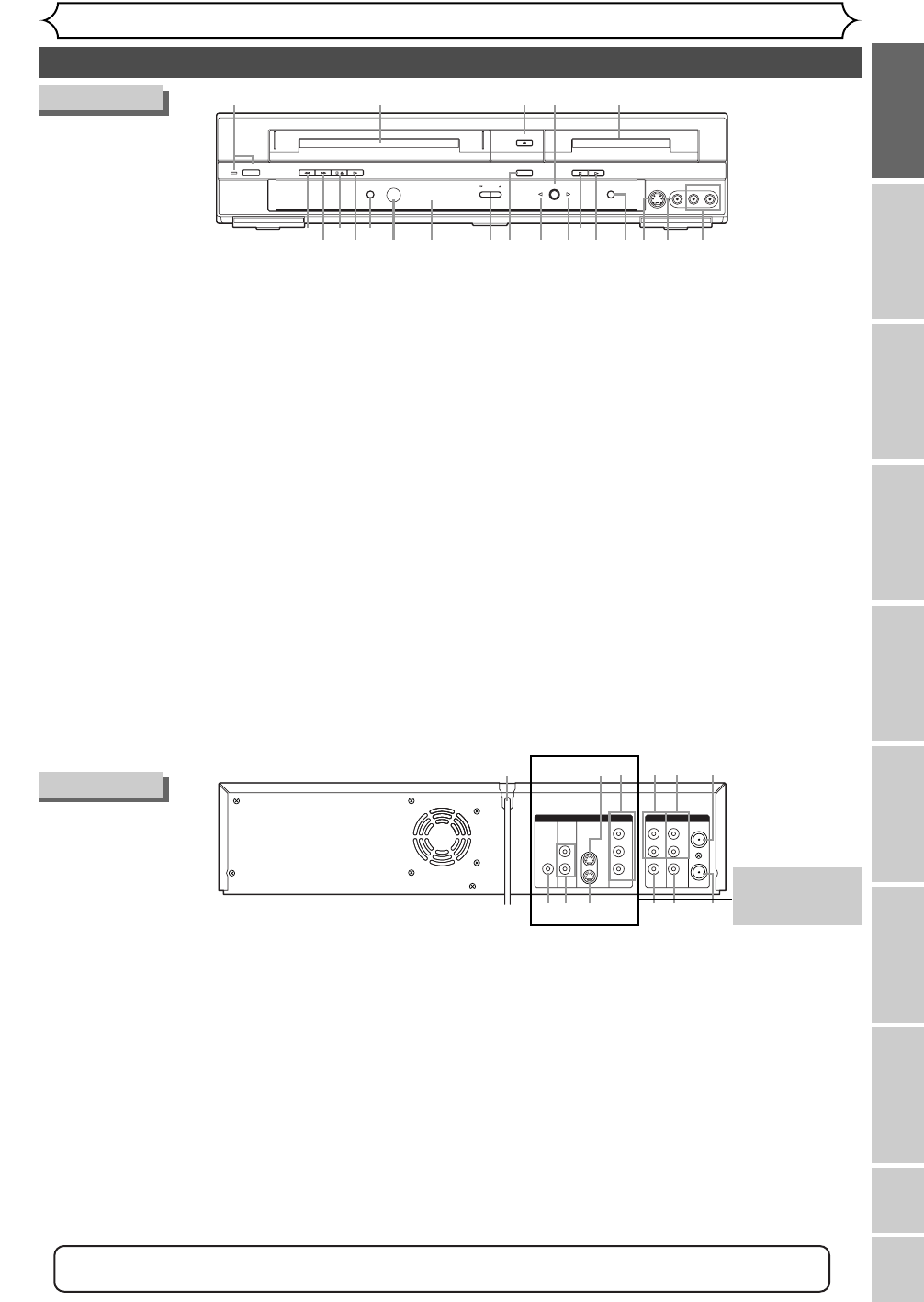

Front Panel
ONE TOUCH
DUBBING
CHANNEL
VCR RECORD DVD RECORD
DVD -RW/-R
OPEN/CLOSE
PLAYREWPOWER F.FWD STOP/EJECT
OUTPUT SELECT
VCR DVD
STOP PLAY
S-VIDEO VIDEO L - AUDIO - R
1
22
21
20
19
2
18
17 1215 14 910
11
534
16 13 8 7 6
1.POWER button / indicator (DVD/VCR)
Press to turn the unit on and off.
If timer programmings have been set, press to set the
unit in timer-standby mode. Press to cancel the timer
standby mode and turn the unit on.
The light besides the POWER button lights up when power is on.
2. Cassette compartment (VCR)
Insert a tape here.
3. A OPEN/CLOSE button (DVD)
Press to open or close the disc tray.
4. OUTPUT SELECT button (DVD/VCR)
Press to select the component you wish to operate.
5.Disc tray (DVD)
Place a disc on the disc tray when it’s open.
6.AUDIO input jacks (LINE2) (DVD/VCR)
Use to connect external equipment with standard audio cables.
7. VIDEO input jack (LINE2) (DVD/VCR)
Use to connect external equipment with a standard video cable.
8. S-VIDEO input jack (LINE2) (DVD only)
Use to connect the S-Video output of external equip-
ment with an S-Video cable (not supplied).
9.DVD RECORD button (DVD)
Press once to start recording.
Press repeatedly to set the time for One-Touch Recording.
10. PLAY button (DVD)
Press to start or resume play.
11.STOP button (DVD)
Press to stop playback or recording.
Press to cancel the proceeding timer recording in DVD.
12.DVD SELECT indicator
This indicator lights up when the DVD output mode is selected.
13. VCR SELECT indicator
This indicator lights up when the VCR output mode is selected.
14. ONE TOUCH DUBBING button (DVD/VCR)
Press to start VCR to DVD or DVD to VCR duplica-
tion you set in the SETUP menu.
15. CHANNEL L / K button (DVD/VCR)
Press to change the channel up and down.
16. Display (DVD/VCR)
Refer to “Front Panel Display Guide” on page 15.
17. Remote control sensor (DVD/VCR)
Receive signals from your remote control so that you
can control the unit from a distance.
18. VCR RECORD button (VCR)
Press once to start a recording. Press repeatedly to
set the time for One-Touch Recording.
19. PLAY button (VCR)
Press to start playback.
20.STOP/EJECT button (VCR)
EJECTbutton-
Press to remove the tape from the unit.
STOP button-Press to stop the tape playback.
Press to cancel the proceeding timer recording in VCR.
21.F.FWD button (VCR)
Press to rapidly advance the tape, or view the picture
rapidly in forward during playback. (Forward Search)
22. REW button (VCR)
Press to rewind the tape, or to view the picture rapidly
in reverse during playback mode. (Rewind Search)
Rear Panel
DVD DVD/VCR
ANTENNA
IN
AUDIO OUTAUDIO IN
S-VIDEO
AUDIO
OUT
DIGITAL
AUDIO OUT
COAXIAL
COMPONENT
VIDEO OUT
VIDEO OUTVIDEO IN
LY
IN
OUT
C
B
CR
L
R
L
R
R
OUT
634521
7
10
98
1112
1.AC Power Cord (DVD/VCR)
Connect to a standard AC outlet to supply power to this unit.
2.S-VIDEO IN jack (LINE1)
(DVD only)
Use to connect the S-Video output of external equip-
ment with an S-Video cable (not supplied).
3.
COMPONENT VIDEO OUT jacks (DVD only)
Use to connect a TV monitor with component video
inputs with component video cables (not supplied).
4.AUDIO IN jacks (LINE1) (DVD/VCR)
Use to connect external equipment with standard
audio cables.
5.AUDIO OUT jacks (DVD/VCR)
Use to connect a TV monitor,AV receiver or other
equipment with standard audio cables.
6. ANTENNA IN jack (DVD/VCR)
Use to connect an antenna.
7. ANTENNA OUT jack (DVD/VCR)
Use to connect an antenna cable to pass the signal
from the ANTENNA IN to your TV monitor.
8. VIDEO OUT jack (DVD/VCR)
Use to connect a TV monitor,AV receiver or other
equipment with a standard video cable.
9.VIDEO IN jack (LINE1) (DVD/VCR)
Use to connect external equipment with a standard
video cable.
10. S-VIDEO OUT jack (DVD only)
Use to connect the S-Video input of a TV monitor,AV
receiver or other equipment with an S-Video cable
(not supplied).
11.AUDIO OUT jacks (DVD only)
Use to connect a TV monitor,AV receiver or other
equipment with standard audio cables.
12.COAXIAL DIGITAL AUDIO OUT jack (DVD
only)
Use to connect an AV receiver, Dolby Digital decoder,
DTS decoder or other equipment with a coaxial digital
input jack with a digital coaxial cable (not supplied).
Note: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause perma-
nent damage to the unit.
•
These jacks are
useful only in
DVD mode.
