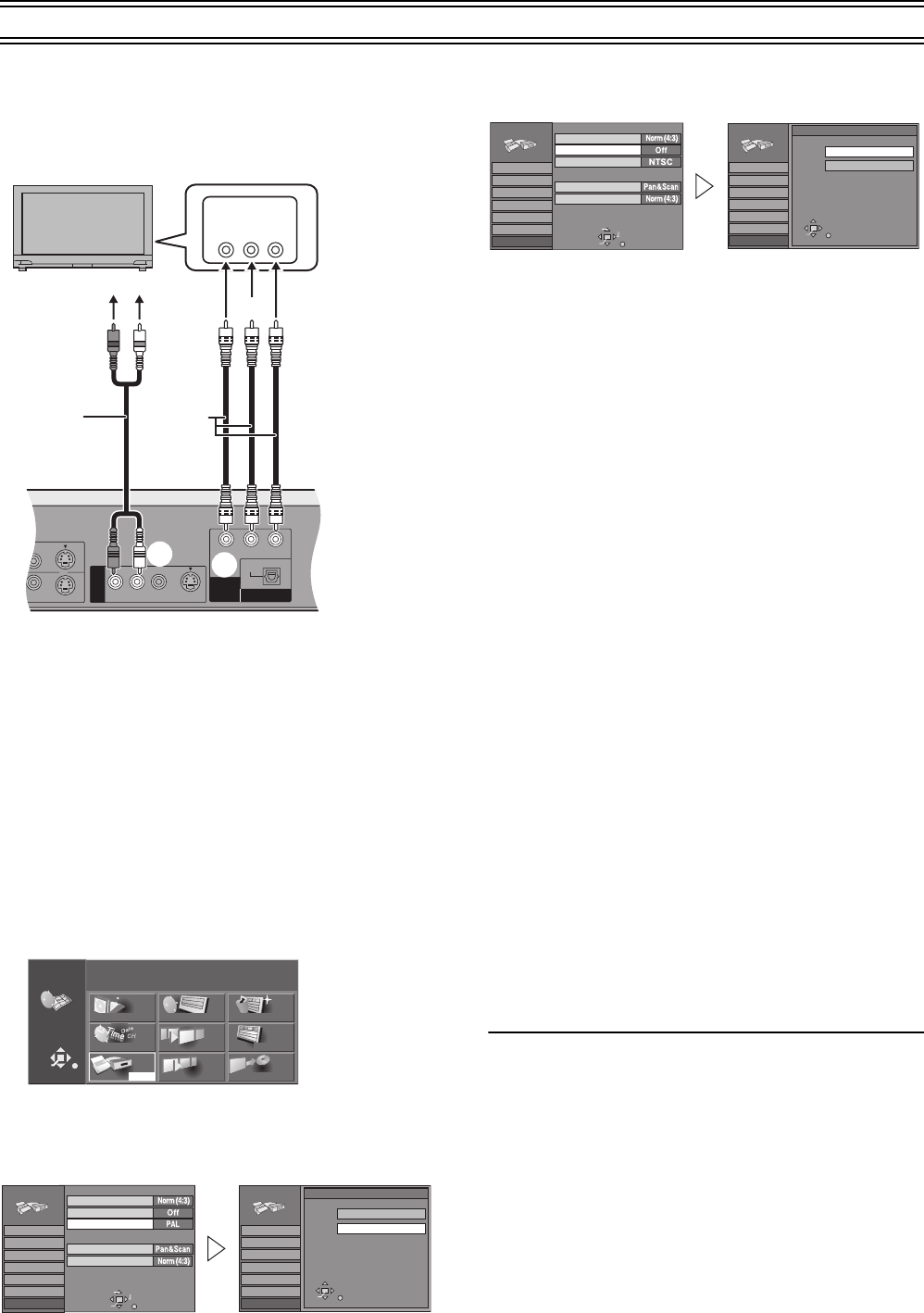

Upgrading your system (continued)
Connecting a Television with
Component video input terminals
(For NTSC TV System only)
(1) Television with Component video input terminals (not supplied)
(2) Audio input (L/R)
(3) Component video input (Y/P
B/PR)
(4) Audio cable (not supplied)
(5) Video cable (not supplied)
(6) To AUDIO OUT (L/R)
(7) To COMPONENT VIDEO OUT (Y/P
B/PR)
Preparation
Switch [DVD, TV] (15) to “DVD”.
1 Press [DVD, Í] (1) to turn this unit on.
2 Press [FUNCTIONS] (11) to show the FUNCTIONS
window.
3 Use [3, 4, 2, 1] (10) to select “SETUP” and press
[ENTER] (10).
4 Use [3, 4] (10) to select the “Connection” and
press [2] or [1] (10).
5 Use [3, 4] (10) to select “TV System” and press
[ENTER] (10).
6 Use [3, 4] (10) to select “NTSC” and press
[ENTER] (10).
7 Use [3, 4] (10) to select “Progressive (NTSC)” and
press [ENTER] (10).
8 Use [3, 4] (10) to select “On” and press [ENTER]
(10).
ªTo return to the previous screen
Press [RETURN] (23).
ªTo enjoy progressive video
Connect to the component video (480P) input terminals on a
television compatible with this unit's copy guard system. (Video will
not be displayed correctly if connected to an incompatible
television.)
All Panasonic televisions that have 480P input terminals are
compatible. Consult the manufacturer if you have another brand
of television.
ªCOMPONENT VIDEO OUT terminal
These terminals can be used for either interlace or progressive
output and provide a purer picture than the S-VIDEO OUT
terminal.
Connection using these terminals outputs the color difference
signals (P
B/PR) and luminance signal (Y) separately in order to
achieve high fidelity in reproducing colors.
The description of the component video input terminals depends
on the television or monitor (e.g. Y/P
B/PR, Y/B-Y/R-Y, Y/CB/CR).
Connect to terminals of the same colour.
When making this connection, ensure you connect the audio
cables to the corresponding audio input terminals on the television.
ªRegarding Progressive Television Picture
Progressive image aspect (height to width ratio) is set at a
standard 16:9. DVD-Video which has been set at 16:9 will be
displayed correctly. However, 4:3 video material will be stretched
to the right and left when displayed.
To view the picture at the right aspect
For televisions that allow the aspect of progressive images to be
adjusted, use the function provided on the television and adjust
as necessary.
For televisions which do not allow the aspect of progressive
images to be adjusted, please set “Progressive (NTSC)” to “Off”
(page 53).
Notes
If the unit is connected to the TV through VIDEO OUT or S-
VIDEO OUT, output will be interlace only (even if you select
progressive output).
When progressive output is on, closed captions can not be
displayed.
