Basic Connections - DVD recorder
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
TV
ANT OUT
RF OUT
ANT IN
RF IN
Cable Box /
Satellite Receiver
(optional)
VCR
TV
(optional)
DVD Recorder
example of your existing antenna
connection
new antenna connection
2
VCR/Cable Box/
Satellite Receiver
OR
1
Quick Setup Overview
Antenna/
cable TV signal
➠
Step 1: Connecting the
antenna cables
These connections enable you to watch
and record TV programs using the DVD
recorder. If the antenna signal is
connected via a VCR, Cable Box or
Satellite Receiver, ensure that these
devices are turned on in order to watch
or record the cable programs.
● If your TV is equipped with an
Antenna In (RF IN) jack only,
see page 15 for the complete connection
to your TV.
● If you want to connect to a VCR
and/or Cable Box/Satellite Receiver,
see page 16~18 for the complete
connection to your TV.

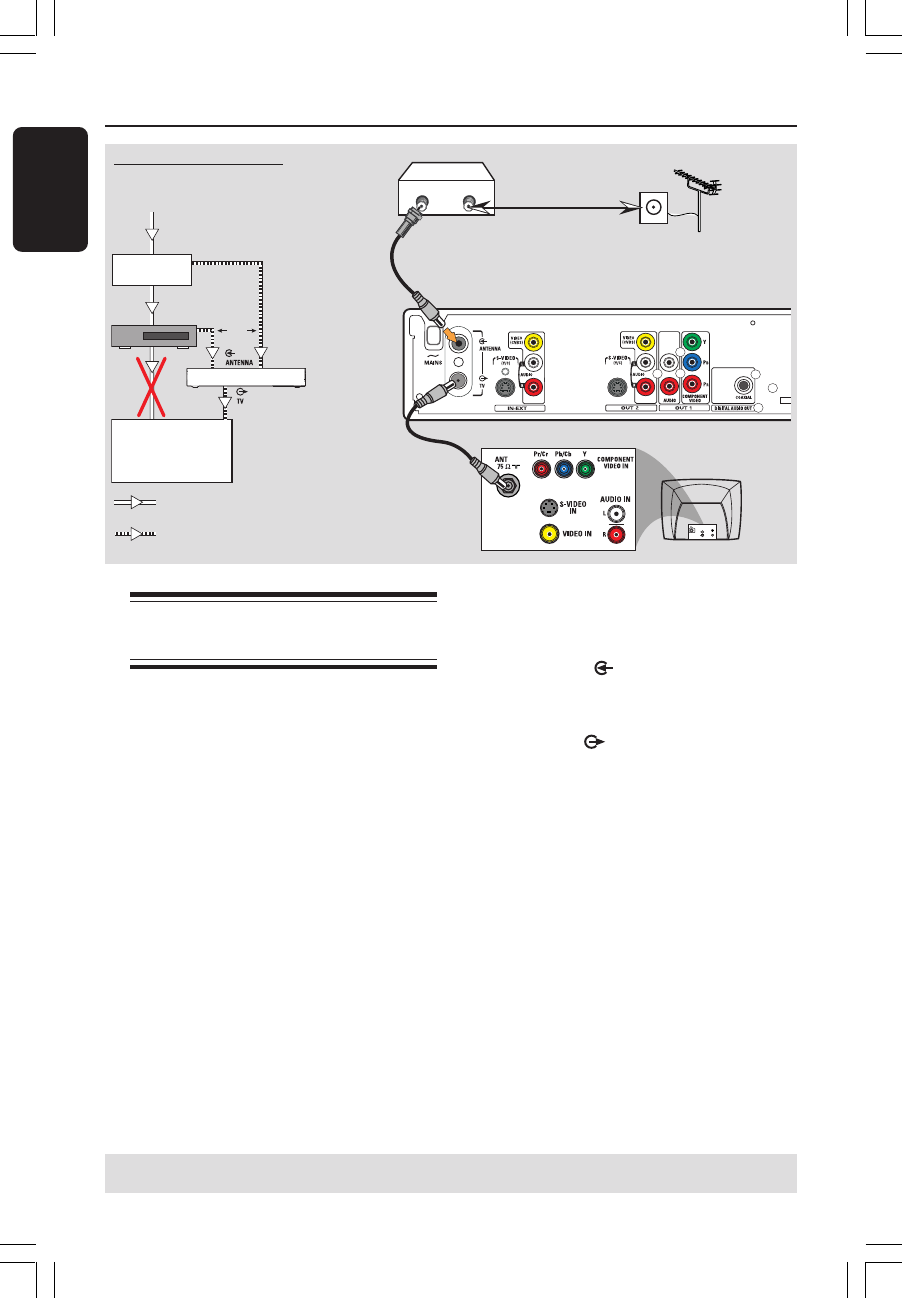

1 Connect existing Antenna/Cable TV signal
(or from the Cable Box/Satellite Receiver,
labeled as RF OUT or TO TV) to the
ANTENNA jack on the DVD
recorder.
2 Use the supplied RF coaxial cable to
connect TV socket on the DVD
recorder to the antenna input jack (or
labeled as VHF/UHF RF IN) on your TV.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected from
the power outlet.
Antenna/cable TV signal
