Other antenna connections
Use one of the following connections to suit the antenna lead.
∫ A single twin lead
∫ A twin lead and a coaxial cable
∫ Two twin leads
≥If your television has both lead and coaxial VHF terminals, use the
lead connection to minimize signal loss.
Use one of the following connections to suit the antenna terminals
on your television. Refer to the television’s operating instructions.
∫ A twin lead and coaxial plug terminal
∫ A twin lead terminal
∫ Two twin lead terminals
∫ Multiple antenna terminals
≥Connect to one of the terminals, then change the television’s
setting as necessary.

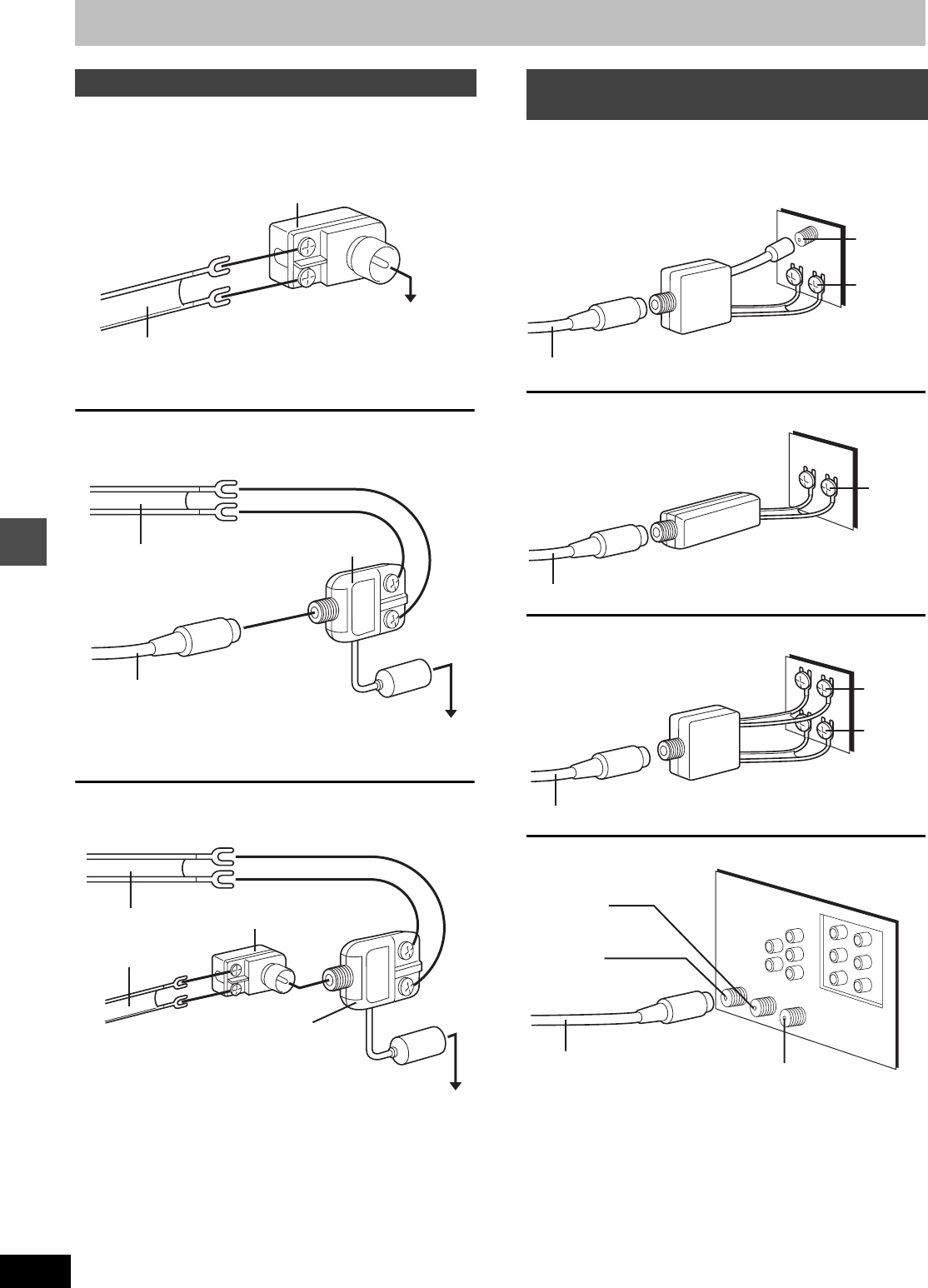

Other antenna connection to the unit
300–75 ≠ transformer
(not included)
from the antenna
(Flat)
Twin lead
300 ≠ cable
To this unit’s
RF IN terminal
from the antenna
(Flat)
Twin lead
300 ≠ cable
To this unit’s
RF IN terminal
(Round)
75 ≠ coaxial cable
VHF/UHF band mixer
(not included)
from the antenna
To this unit’s
RF IN terminal
300–75 ≠ transformer
(not included)
(Flat)
Twin lead
300 ≠ cable
VHF/UHF band mixer
(not included)
Other antenna connection from the unit
to the television
VHF/UHF band separator
(not included)
Television
75 ≠ coaxial cable
VHF
UHF
75 ≠ coaxial cable
75–300 ≠ transformer
(not included)
Television
VHF or
UHF
75 ≠ coaxial cable
VHF/UHF band separator
(not included)
Television
VHF
UHF
ANT 2
ANT 1
Split out
Television
75 ≠ coaxial cable
