Samsung UN19D4003 Flat Panel Television User Manual



7
English
02 Connections

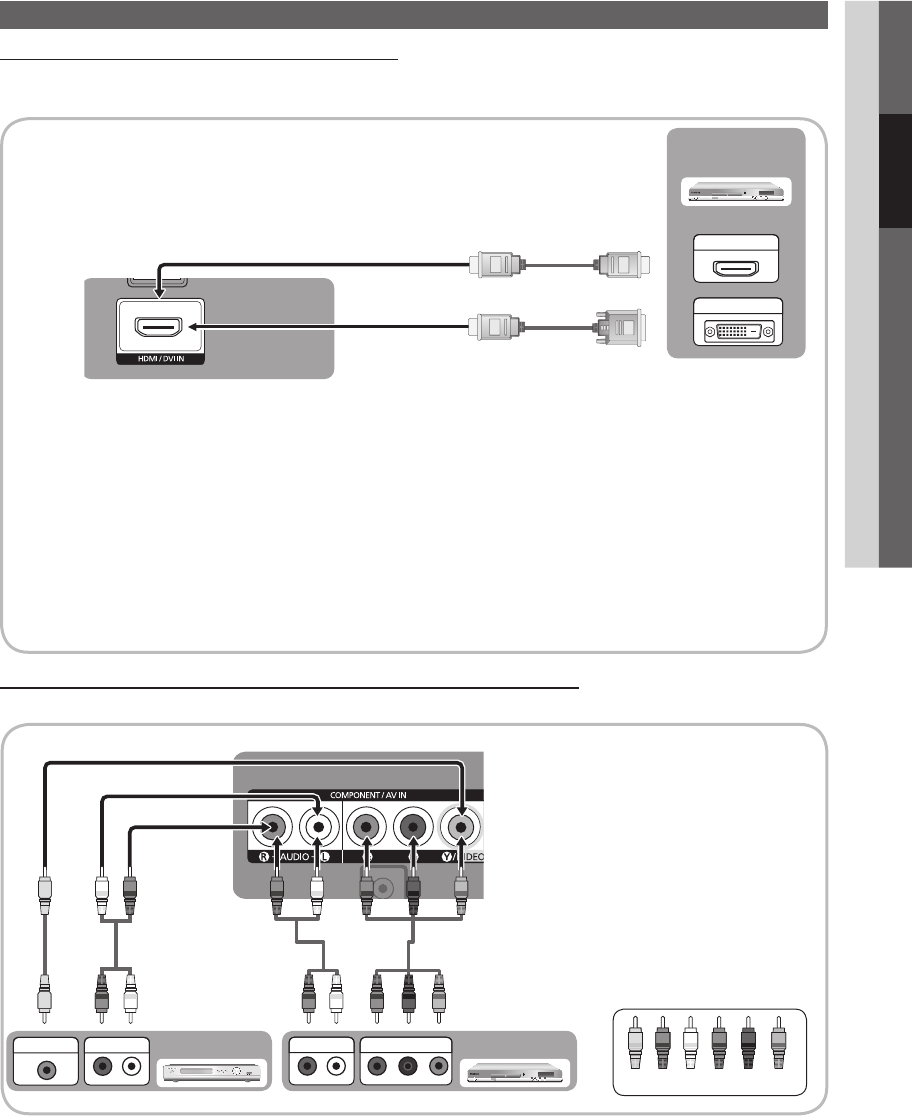

Connecting to an AV Device
Using an HDMI / DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture. Available devices: DVD, Blu-ray player, HD cable
box, HD satellite receiver (STB).
HDMI/DVI IN
x
For better picture and audio quality, connect to a digital device using an HDMI cable.
x
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.
x
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version
of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the
HDMI version and, if out of date, request an upgrade.
x
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.
x
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet
function via HDMI.
x
If an HDMI to DVI cable is connected to the HDMI/DVI IN port, the audio does not work.
Using a Component Cable: (up to 1080p), Using an Audio / Video Cable: (480i only)
Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver
Connections
DVD
BD/DVD player/
HD cable/sat box
R-AUDIO-L
P
R PB Y
HDMI OUT
R-AUDIO-L
P
R PB Y
COMPONENT OUT
R-AUDIO-L
P
R PB Y
AUDIO OUT
Blu-ray player
WY
W Y
B
G
R
W
W
B
G
R
R
R
R
R
R-AUDIO-L
P
R PB Y
VIDEO OUT
VCR
R-AUDIO-L
P
R PB Y
AUDIO OUT
When connecting to AV IN, the color of
the AV IN [Y/VIDEO] jack (Green) does not
match the color of the video cable (Yellow).
For better picture quality, the Component
connection is recommended over the A/V
connection.
W W
B
G
RR
W
Y
Yellow Red White Red Blue Green
TV Rear
TV Rear
R-AUDIO-L
P
R PB Y
DVI OUT
