Chapter 2
Receiver Description and Installation

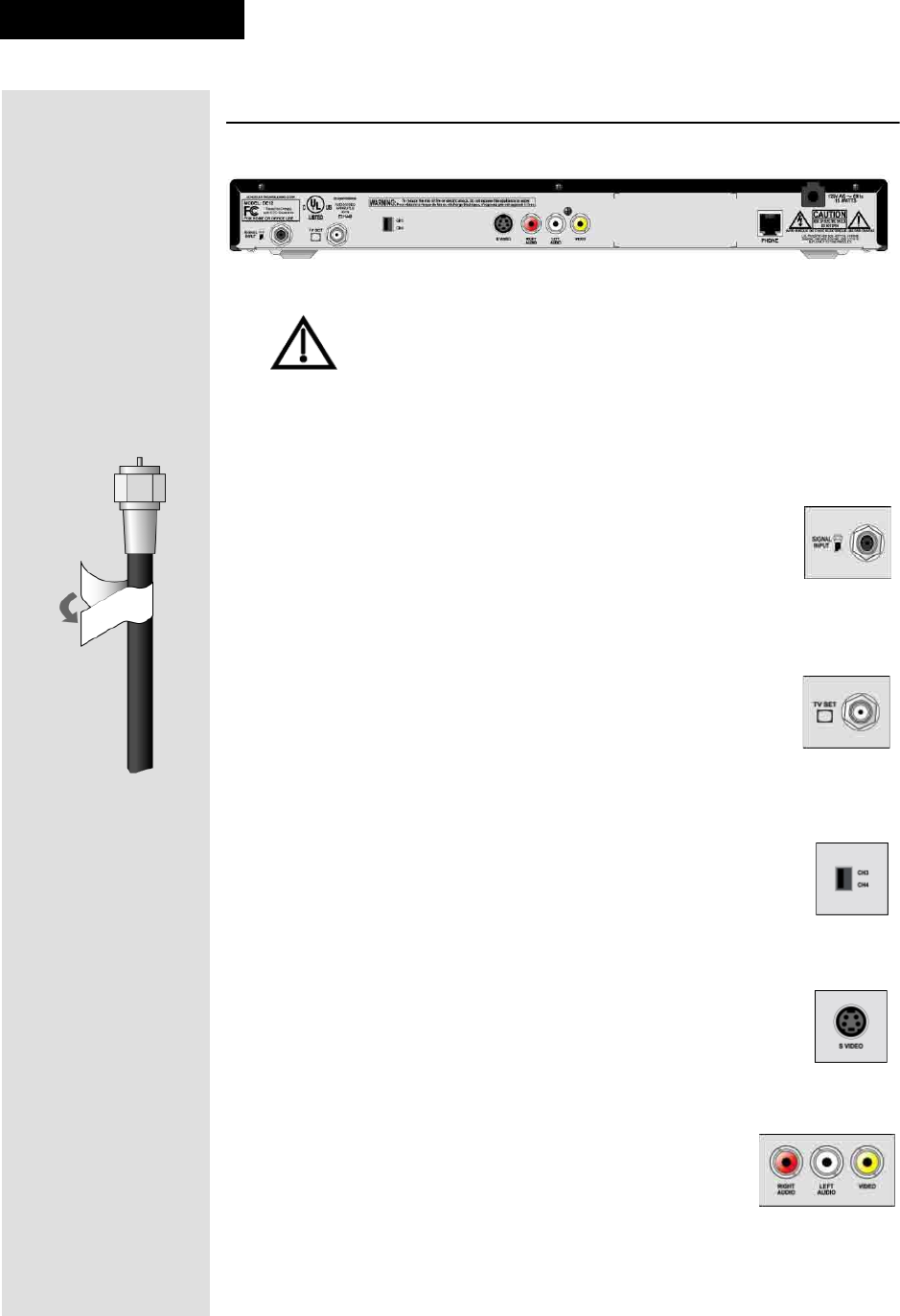

The Receiver Back Panel Connections
Tighten the connections by hand only. If you use a wrench you
might over-tighten the connections and cause damage that
would not be covered by the Limited Warranty.
The back panel of the receiver provides the connections that you use to
connect the receiver to other electronic devices. It also provides the receiver
power cord and telephone jack. Depending on the setup that you have, you
may only use some of these connections.
Signal Input
The television signal enters your receiver through this
connection. Connect an RG-6 coaxial cable from your wall
outlet to the S
IGNAL INPUT connection. The connector is
color coded black. Remember to tighten by hand only. Wrap the black label,
located inside the front cover, around the end of the cable to identify it.
TV Set
Use the TV SET connector as the primary means of
connecting your receiver to your TV. Use either an RG-6 or
an RG-59 coaxial cable. The connector is color coded white.
Remember to tighten by hand only. Wrap the white label, located inside the
front cover, around the end of the cable to identify it.
Channel 3/4 Switch
If you use the TV SET connection as described above, set the
C
HANNEL 3/4 SWITCH to the channel for the signal output.
Select a channel that is not being used by a cable or local
television channel.
S-Video
The S-VIDEO connection provides high quality standard
definition video output. If you use this output for video, you
must connect the audio with the two RCA A
UDIO OUTPUTS
(color coded Red and White).
Phono (RCA) Audio/Video Outputs
These color coded RCA A/V OUTPUT connectors
provide good quality standard definition video and
audio. Use a Phono RCA-type cable to connect these
outputs to your TV or other device.
Tip: Using cable
labels makes it
easy to tell which
cables connect to
the receiver ports.
