Chapter 2
Page 14
Receiver Description and Installation

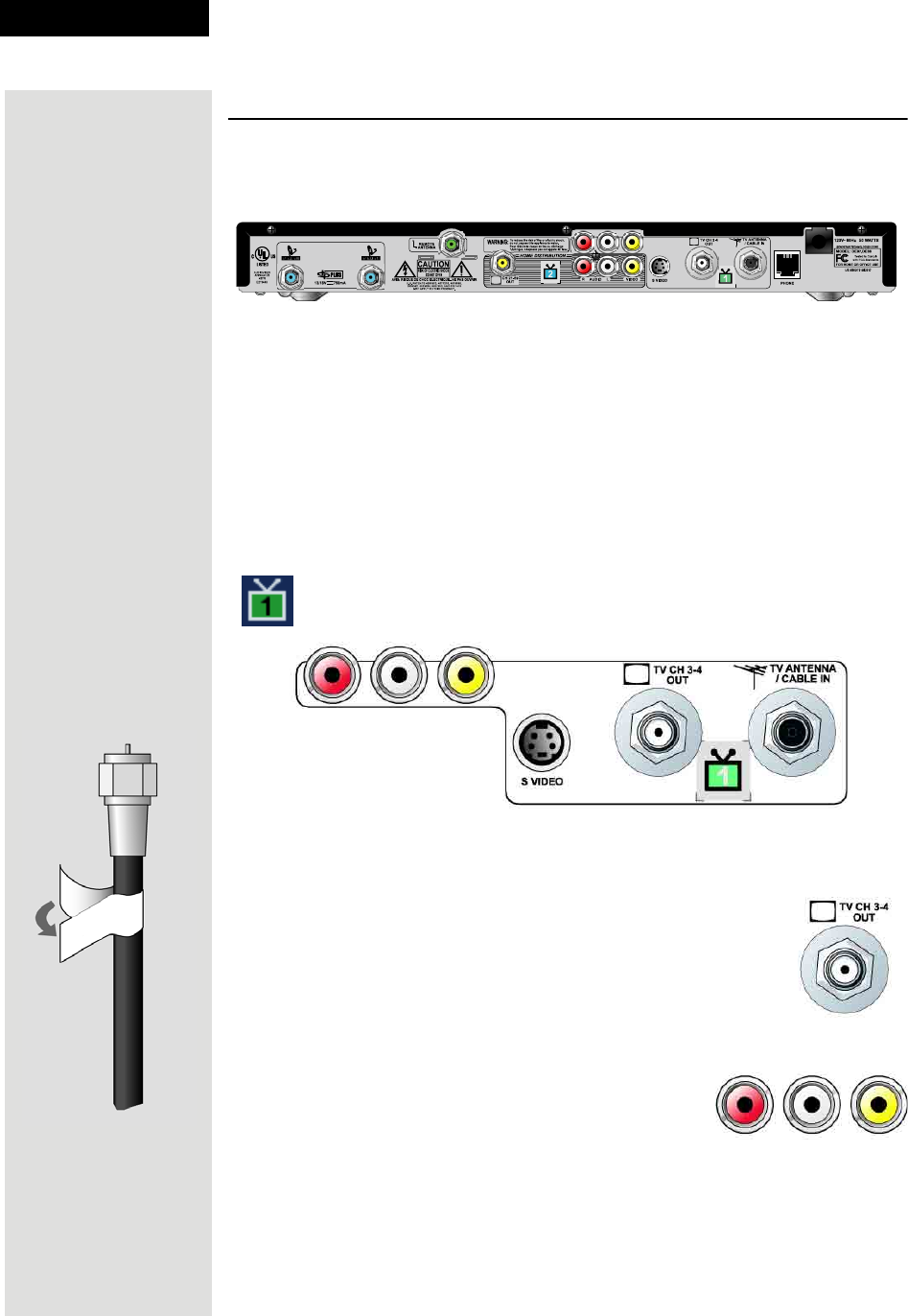

Receiver Back Panel
The receiver connections on the back panel are placed in three groups:
•
TV1 Connections - Use these connections with the nearby TV.
•
TV2 Connections - Use these connections with the remote TV(s).
•
Other Connections - Use these connections with the dish antenna, UHF
antenna, and phone line.
TV1 Connections
The following connections provide TV1 menus and programming to the
nearby TV.
TV CH 3-4 OUT
The CH 3-4 OUT connection provides good quality video
and mono (non-stereo) audio to your nearby TV. Use a
coaxial cable to make the connection. The
CH 3–4 OUT
connection is color coded white.
RCA Out
The RCA audio/video outputs provide high quality
picture and stereo sound to the nearby TV (if your
TV has these connections). Use an RCA-type cable
assembly to make the connection. If the TV has
only one input for this type of audio, connect it to
the right (R) phono (RCA) audio output on the
receiver.
Tip: The six coaxial
connections on the
back of your
receiver are color
coded to make the
connectors easy to
identify. Inside the
front cover of this
guide are stickers
that are color
coded the same
way as the coaxial
connections. See
the installation
instructions
starting on page 19
for information on
how to use the
stickers that go on
the coaxial cables.
