Page 15

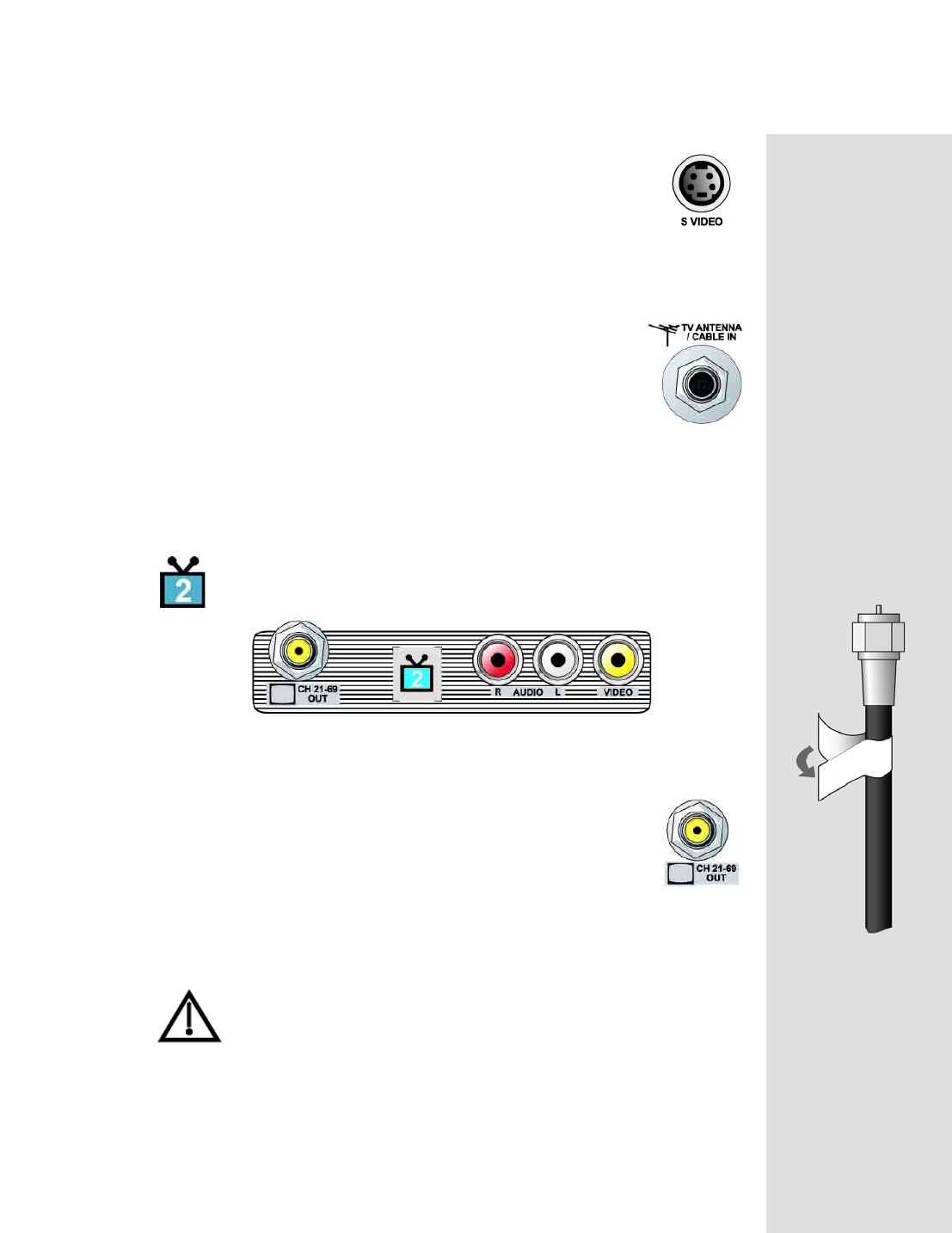

Receiver Back Panel
S-Video Out
The S-VIDEO connection provides the highest quality video
available to your nearby TV (if your TV has this connection).
Use an S-Video cable to make the connection. If you use this
back panel output for video between your receiver and
nearby TV, you must still connect the audio using the
PHONO
(RCA) A
UDIO LEFT/RIGHT OUTPUTS and Phono (RCA) cables.
TV Antenna/Cable In
The TV ANTENNA/CABLE IN is used if you want the satellite
receiver to connect the tuner of the nearby TV to an off-air
antenna or cable TV system when the satellite receiver is
turned off or when using the TV/VIDEO button on Remote
Control 1. Use a coaxial cable to make this connection to an
off-air antenna or cable TV system. The
TV ANTENNA/
C
ABLE IN connection is color coded black. Your nearby TV
must be connected to the
CHANNEL 3-4 output to use this
feature.
TV2 Connections
The following connections provide TV2 menus and programming to the
remote TVs.
Ch 21–69 OUT
The CH 21–69 OUT connection provides good quality video
and mono (non-stereo) audio for the remote TV(s).
Use a coaxial cable to make this connection to your home
cable system. Remote TVs connected to the home cable
system can receive programming from this receiver output.
The
CH 21–69 OUT connection is color coded yellow.
• If connecting directly to a TV tuner port, you must install the
attenuator in the cable between the
CH 21–69 OUT port and the
TV tuner.
• If connecting to your in-home cabling system to distribute the
signal to a TV(s) in other rooms, in most cases you will not
have to install the attenuator for most in-home cabling systems.
When connecting to the home distribution (
CH 21–69 OUT)
coaxial port, you must meet requirements covered under FCC
Compliance in the Appendix. To meet these requirements, an in-
line coaxial attenuator has been included with your receiver and
may need to be installed using the following guidance:
Tip: If you connect
a cable to the TV
A
NTENNA/CABLE IN
port, attach the
black sticker to the
cable near where it
attaches to the
receiver. The
stickers are
located inside the
front cover of this
guide.
