Chapter 2 Basic Setup
:: Basic Connections

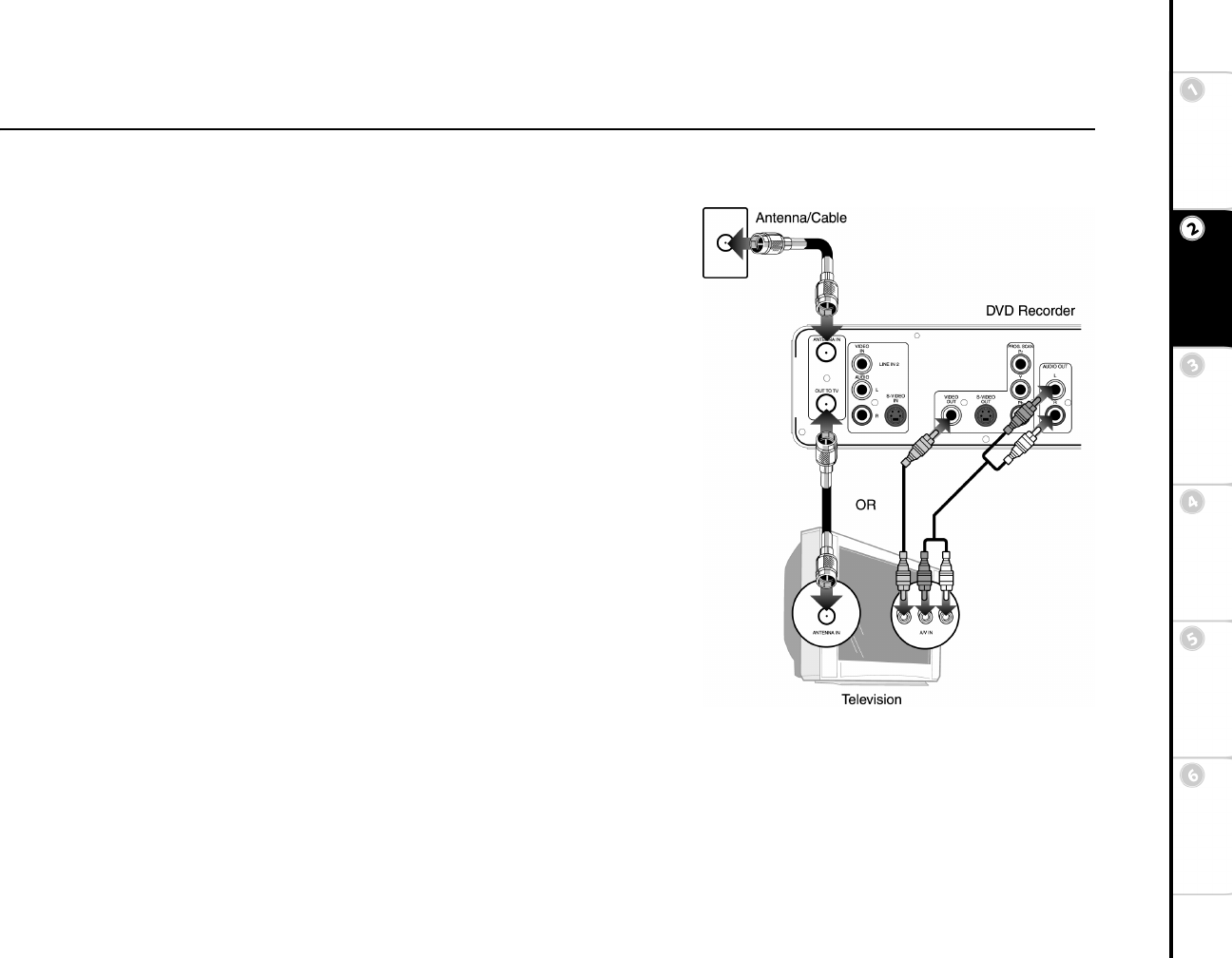

Connecting the R6530 is virtually the same as connecting a standard VCR. Follow these
steps to connect the DVD Recorder to your TV and antenna/basic cable. For advanced
connections, please refer to pages 15-20.
1 Connect Antenna/Cable
Connect the RF cable from your antenna or basic cable TV jack to the ANTENNA IN
jack on the back panel of the DVD Recorder.
2Connect TV
Choose either Antenna Out or Line Out:
a. Antenna Out
Use if you have an older television with only a basic antenna input. Connect the sup-
plied coaxial cable from the OUT TO TV jack on the back panel of the DVD
Recorder to the antenna in jack on your television.
b. Line Out
Use for better sound and picture quality if your television has audio/video inputs.
Connect the supplied audio/video cable from the AUDIO/VIDEO OUT jacks on the
back panel of the DVD Recorder to the line in jacks on your television and/or stereo
receiver.
3 Power on DVD Recorder & TV
Plug the DVD Recorder into a standard electrical outlet, turn on your TV, and press
Power on the front panel of the DVD Recorder.
4Select Channel 3 or Line
If you used the Antenna Out connection, tune your television to channel 3 (or if you prefer to use channel 4, see “Modulator Output” on
page 42). If you used the Line Out connection, set your television to its appropriate video input.
5 Continue with Initial Setup
The Language setup menu will appear. Continue with “Initial Setup” on page 14.
