Alternative Cable Box Connections
This connection method allows you to record from basic cable while watching
scrambled channels simultaneously. However, with this method you will not be
able to record scrambled channels.

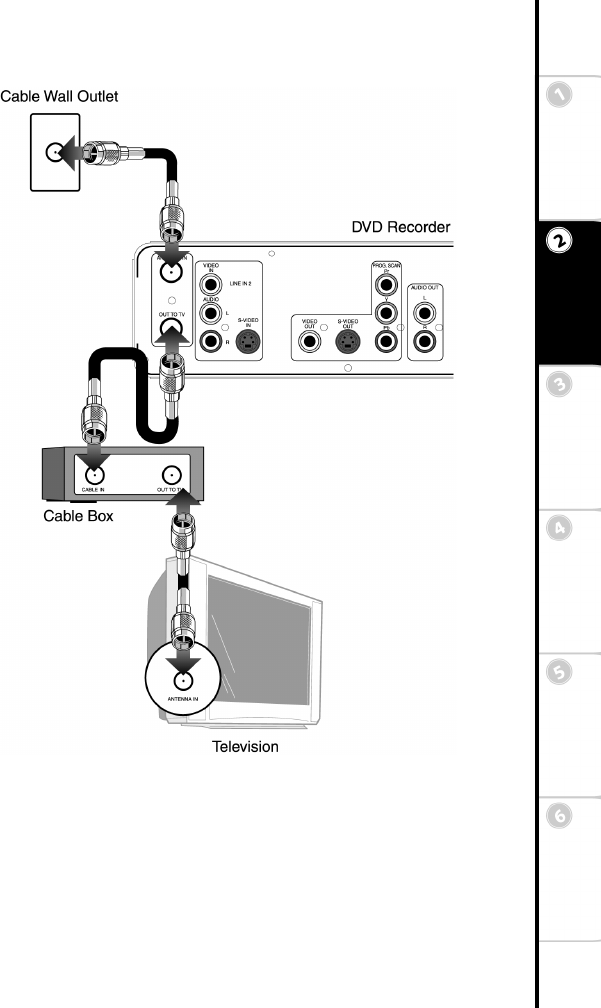

1 Connect Incoming Cable to DVD Recorder
Connect the coaxial cable from your cable TV wall outlet to the ANTENNA IN
jack on the back panel of the DVD Recorder.
2 Connect DVD Recorder to Cable Box
Connect a second coaxial cable from the OUT TO TV jack on the back panel of
the DVD Recorder to the input jack on your cable box.
3 Connect Cable Box to TV
Connect an additional coaxial cable from the output jack on the cable box to the
antenna in jack on your television.
4 Power on DVD Recorder, TV & Cable Box
Plug the DVD Recorder into a standard electrical outlet, and turn on your televi-
sion, DVD Recorder and cable box.
5 Select Channel 3 on TV & Cable Box
• Tune your television and cable box to channel 3.
• To watch the cable box, turn off the DVD Recorder, set your TV to channel
2, 3 or 4 (whichever channel is used by your cable system), and change
channels on the cable box.
• To watch and record basic cable, select the channel to record on the DVD
Recorder and the channel to watch on the cable box.
6 Continue with Initial Setup
The Language setup menu will appear. Continue with “Initial Setup” on
page 14.
