Connections (Continued)
12
Display Formats Overview
• The HD DVR offers various display formats and multiple video outputs. When the HD DVR is connected to A/V
systems, the HD DVR can provide video signal formats 1080i, 720p, 480p, or 480i.
• The HD DVR has digital audio outputs; Dolby Digital 5.1 and PCM. The HD DVR sends out digital audio signal to
OPTICAL audio outputs when the HD DVR is receiving digital broadcasts.
Analog Monitor Connections
1
Connect your Antenna to the “ANT IN” jack on the HD DVR using a coaxial RF cable.
2
Connect your cable TV (CATV) service to the “CABLE IN” jack on the HD DVR with a coaxial RF cable.
3

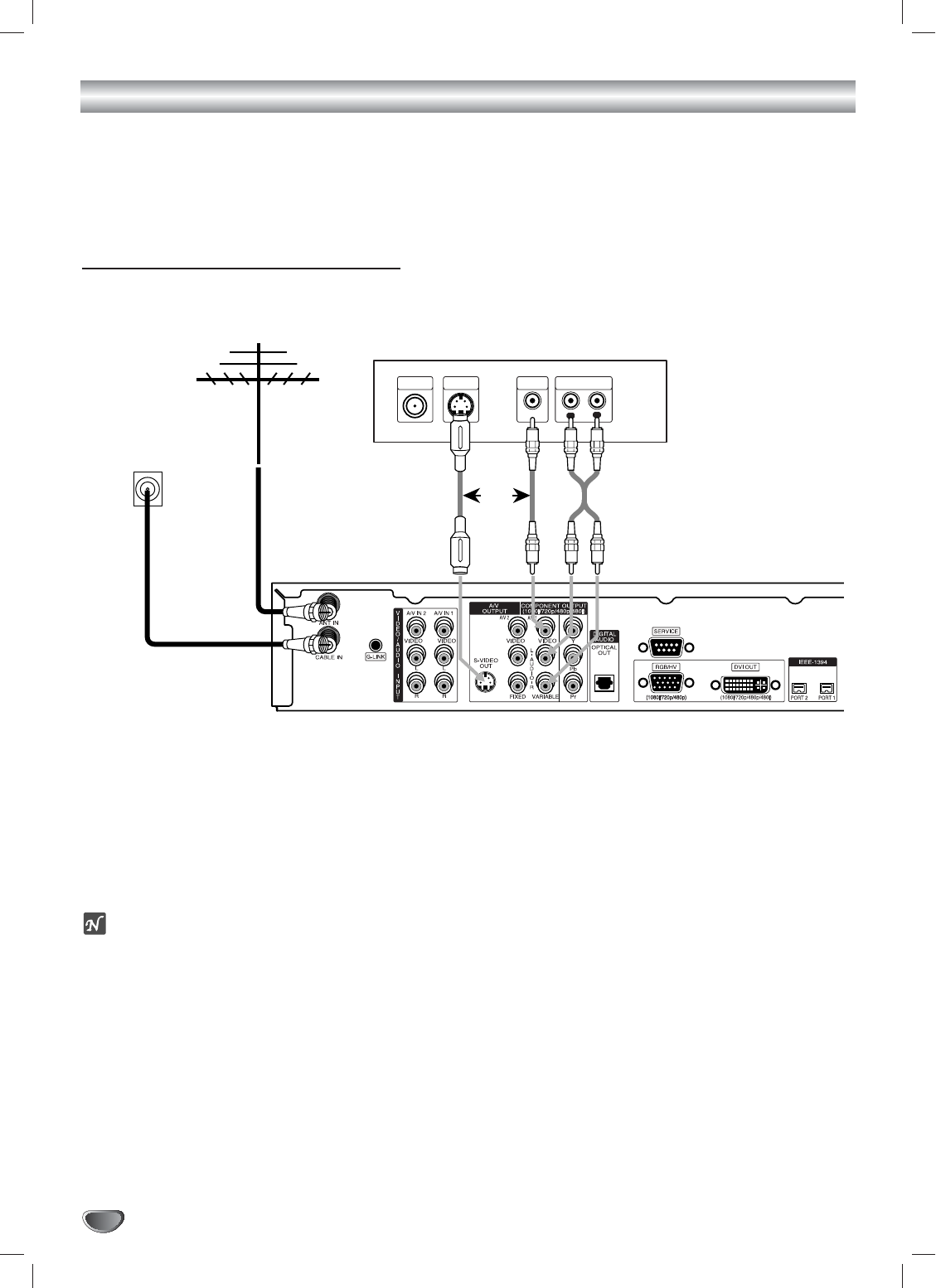

Connect the “AUDIO OUT” and “VIDEO OUT” jacks from the HD DVR to the “A/V IN” jacks on your TV with
RCA-type cables. If your TV is equipped with an S-Video jack, use the S-VIDEO OUT connection instead.
ote
These connections are only available if the display format is 480i.
Cable TV
Wall Jack Panel
Antenna
OR
L
R
AUDIO INPUT
VIDEO
INPUT
S-VIDEO
INPUT
ANTENNA
INPUT
TV Connection Panel
HD DVR Connection Panel
