Connections (Continued)

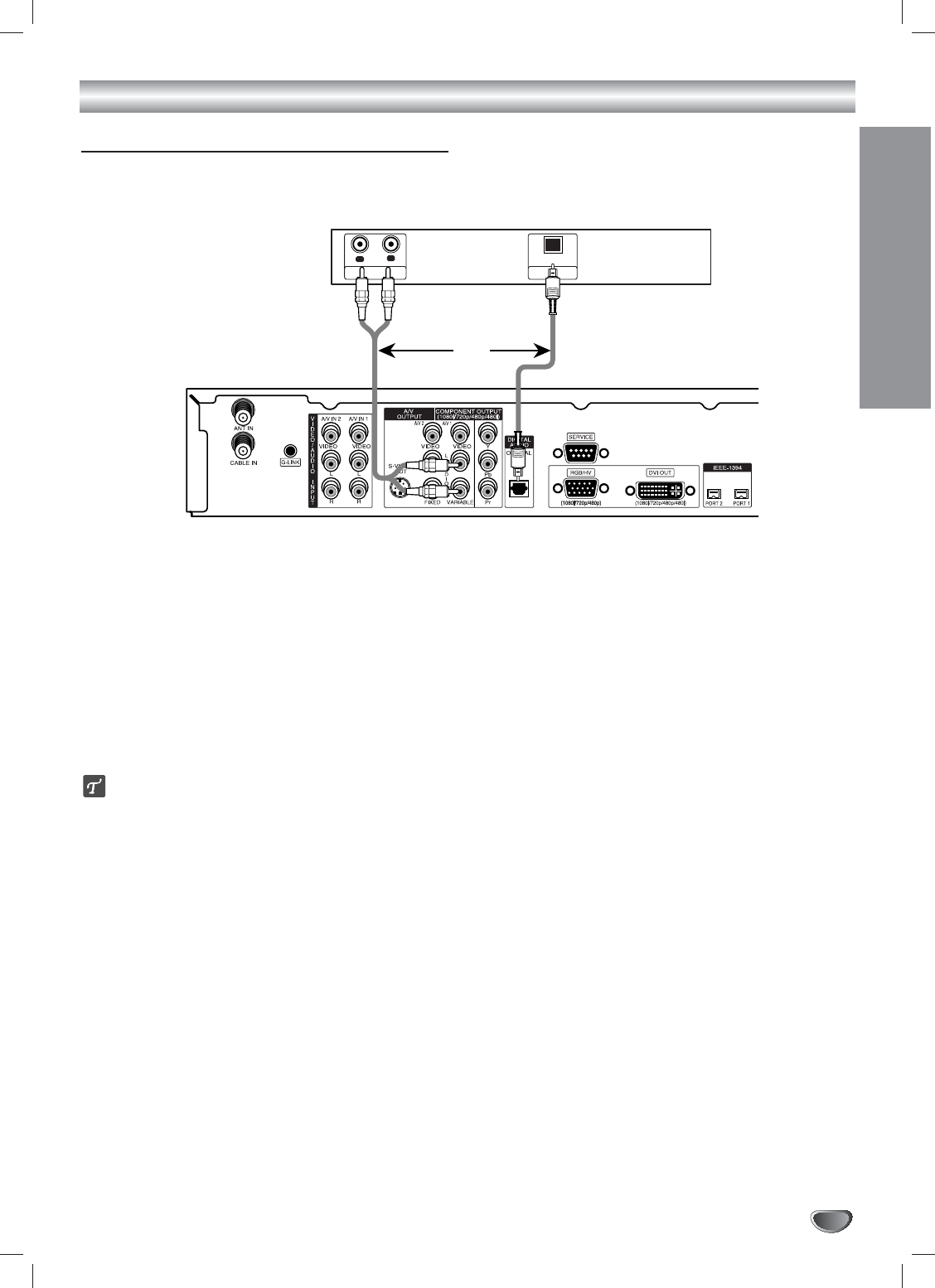

Amplifier (Receiver) Connections
Connection for an amplifier equipped with two channel analog stereo or Dolby Surround
Connect the left and right AUDIO OUT jacks from the HD DVR to the audio left and right in jacks on your amplifier,
receiver, or stereo system, with the audio cables supplied.
Connection for an amplifier equipped with two channel digital stereo (PCM) or to an Audio/ Video
receiver equipped with a multi-channel decoder (Dolby Digital™)
Connect one of the HD DVR’s DIGITAL AUDIO OUT jacks (OPTICAL) to the corresponding input jack on your
amplifier. Use an optional digital (optical) audio cable.
Digital Multi-channel sound
A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video
receiver that supports one or more of the audio formats supported by your HD DVR (Dolby Digital). Check the
receiver manual and the logos on the front of the receiver.
R
L
AUDIO INPUT DIGITAL INPUT
OPTICAL
HD DVR Connection Panel
Amplifier (Receiver) Connection Panel
OR
