14
Connections (Continued)

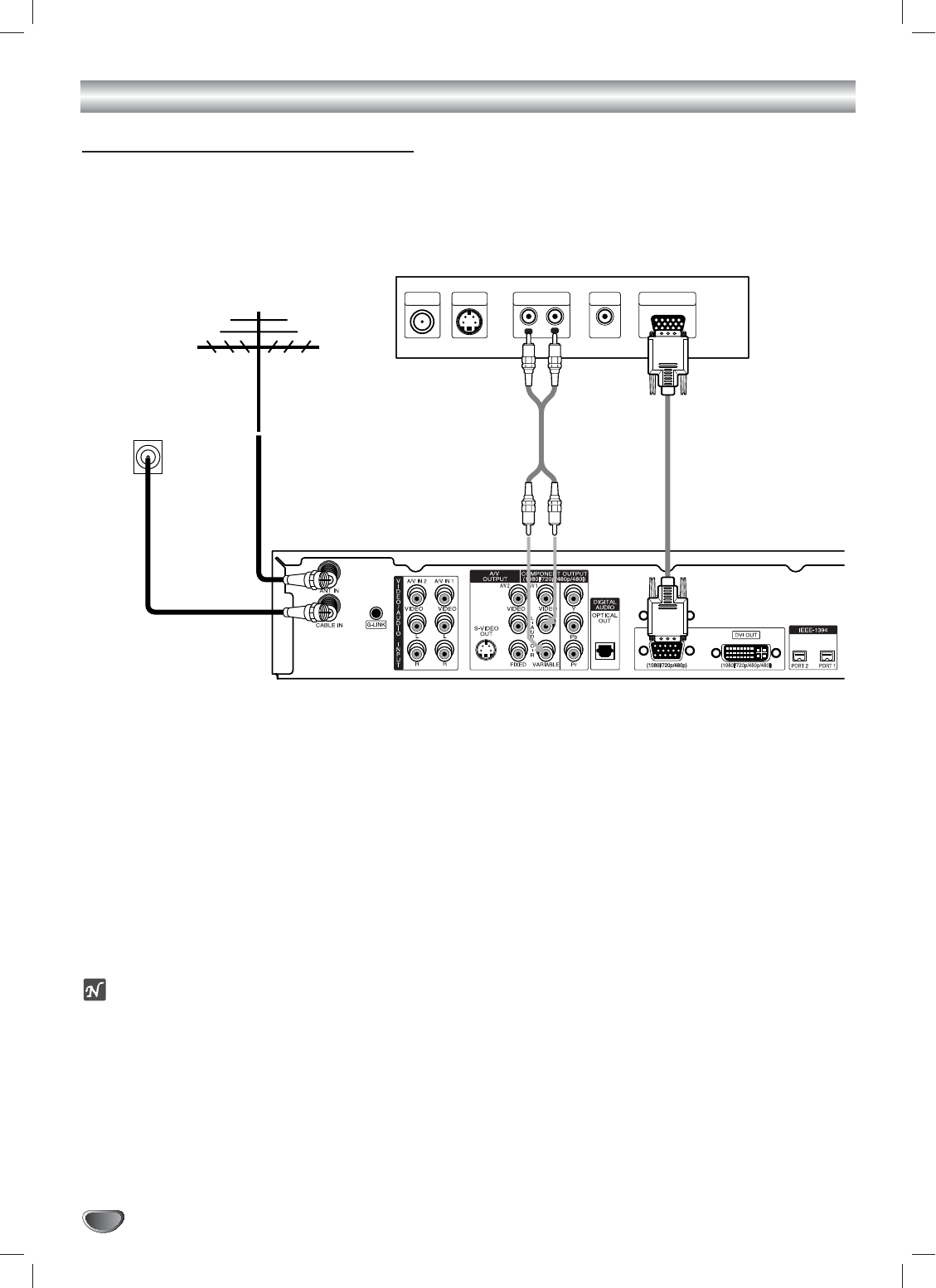

HD Monitor RGB Connections
1
Connect your Antenna to the “ANT IN” jack on the HD DVR with a coaxial RF cable.
2
Connect your cable TV (CATV) service to the “CABLE IN” jack on the HD DVR with a coaxial RF cable.
3
Using a VGA-type cable, connect the “RGB OUT” jack from the HD DVR to the “RGB IN” jack on your TV.
4
Connect the L/R “AUDIO OUT” jacks from the HD DVR to the L/R “AUDIO IN” jacks on your TV with standard
RCA-type cables.
ote
The RGB output is useable only if 1080i, 720p, or 480p display format is selected.
Cable TV
Wall Jack Panel
Antenna
L
R
AUDIO INPUT RGB INPUT
VIDEO
INPUT
S-VIDEO
INPUT
ANTENNA
INPUT
HD Ready TV Connection Panel
HD DVR Connection Panel
