GETTING STARTED

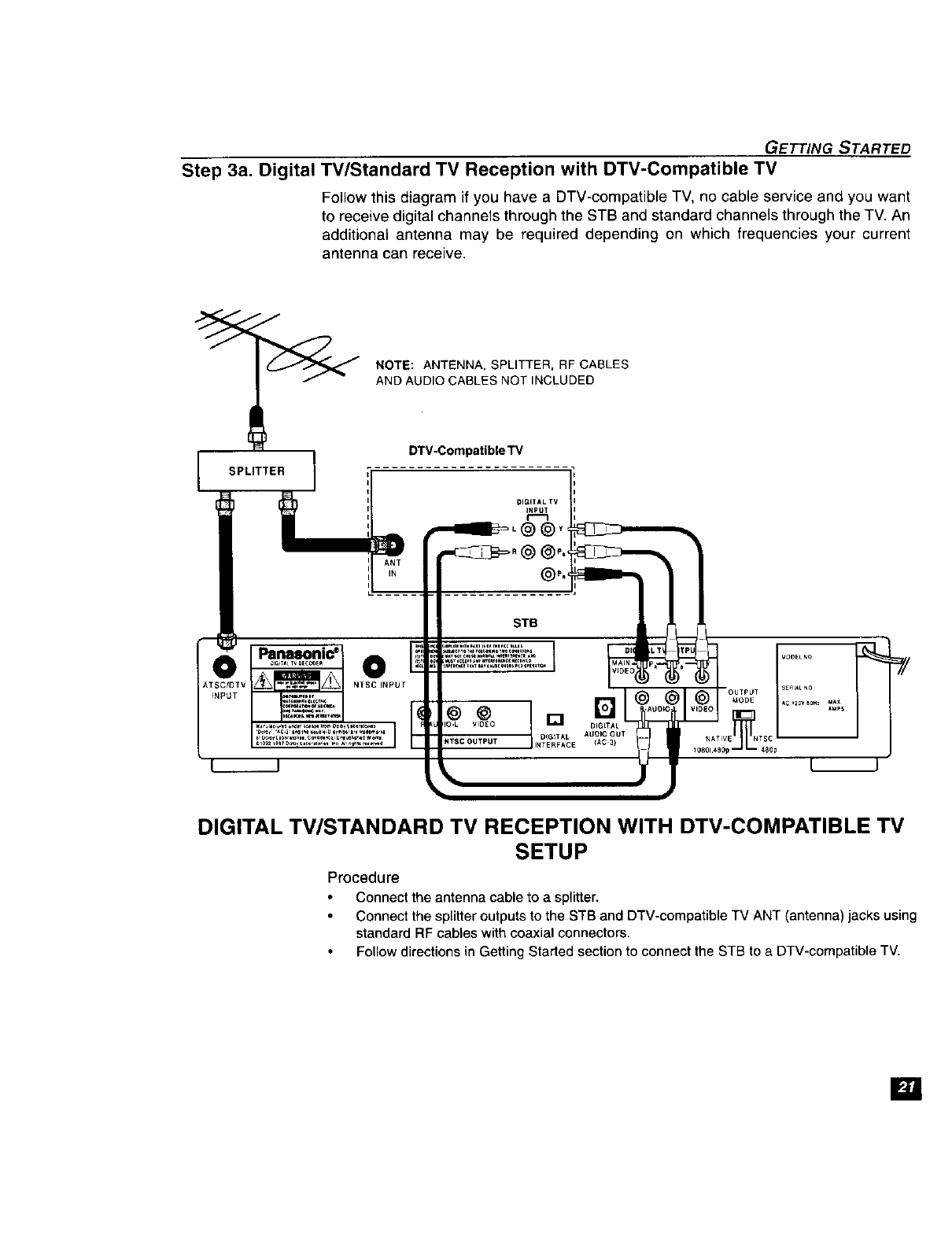

Step 3a. Digital TV/Standard TV Reception with DTV-Compatible TV
Follow this diagram if you have a DTV-compatible TV, no cable service and you want
to receive digital channels through the STB and standard channels through the TV. An
additional antenna may be required depending on which frequencies your current
antenna can receive.
NOTE: ANTENNA, SPLITTER, RF CABLES
AND AUDIO CABLES NOT INCLUDED
SPLITTER
DTV-Compatible TV
DIGITAL TV/STANDARD TV RECEPTION WITH DTV-COMPATIBLE TV
SETUP
Procedure
Connect the antenna cable to a splitter,
Connect the splitter outputs to the STB and DTV-compatible TV ANT (antenna) jacks using
standard RF cables with coaxial connectors.
Follow directions in Getting Started section to connect the STB to a DTV-compatible TV.
[]
