GETTING STARTED

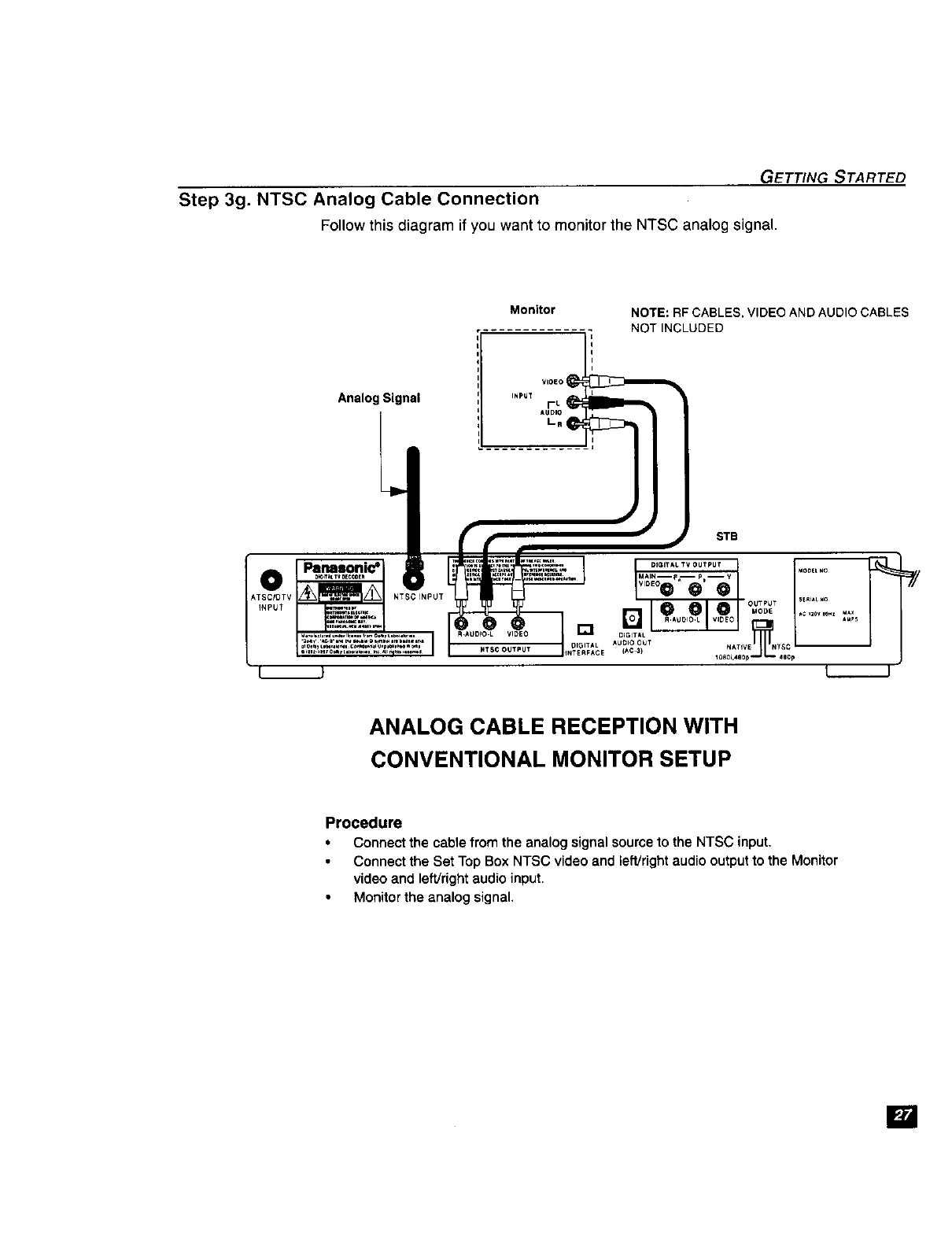

Step 3g. NTSC Analog Cable Connection
Follow this diagram if you want to monitor the NTSC analog signal.
NOTE: RF CABLES, VIDEO AND AUDIO CABLES
NOT INCLUDED
Analog Signal
ANALOG CABLE RECEPTION WITH
CONVENTIONAL MONITOR SETUP
Procedure
• Connect the cable from the analog signal source to the NTSC input,
Connect the Set Top Box NTSC video and left/right audio output to the Monitor
video and left/right audio input.
Monitor the analog signal.
[]
