GETTING STARTED

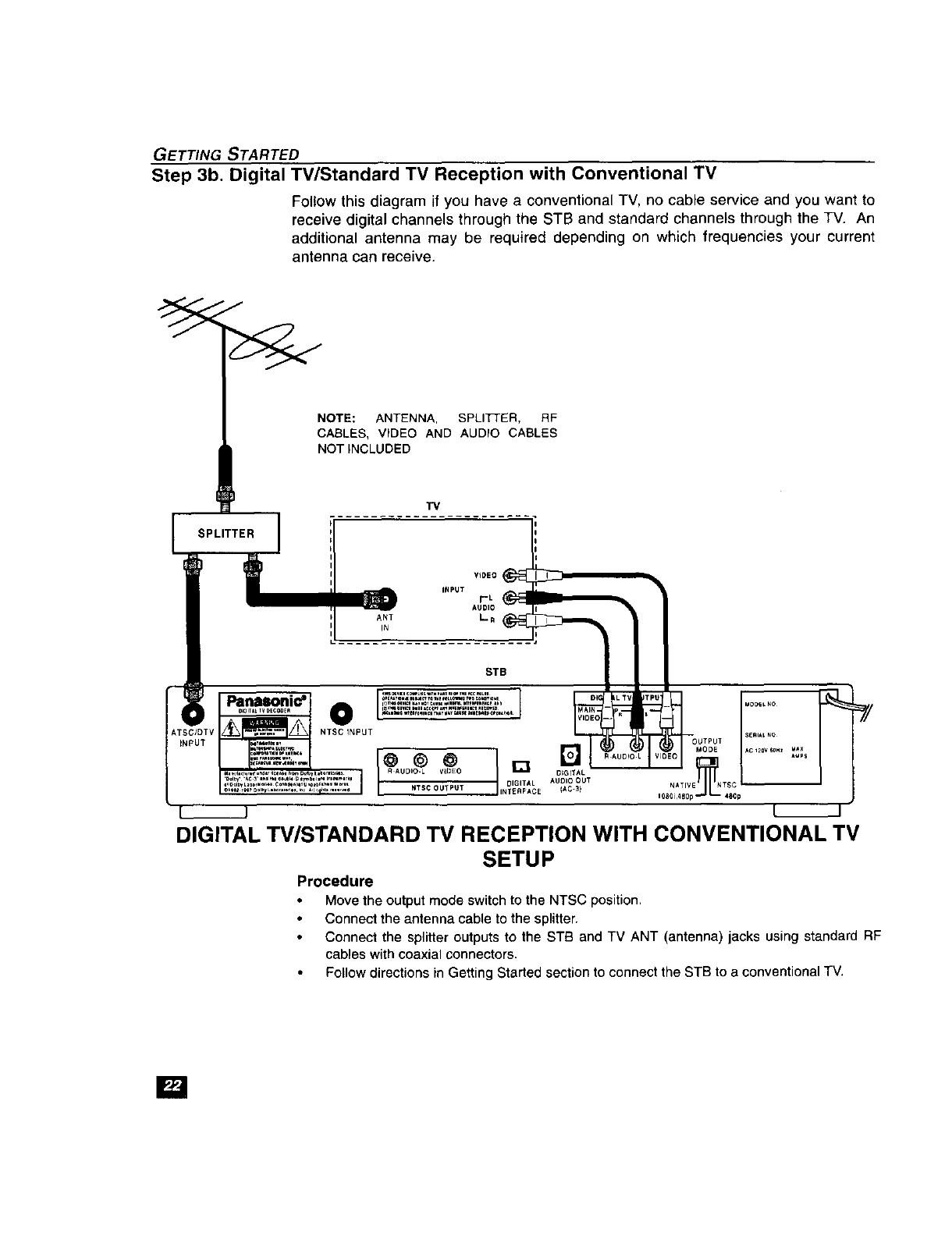

Step 3b. Digital TV/Standard TV Reception with Conventional TV
Foltow this diagram if you have a conventional TV, no cable service and you want to
receive digital channels through the STB and standard channels through the TV. An
additional antenna may be required depending on which frequencies your current
antenna can receive.
NOTE: ANTENNA, SPLITTER, RF
CABLES, VIDEO AND AUDIO CABLES
NOT INCLUDED
SPLITTER I
ANT
IN
NTSCINPUT
"IV
INPUT
i--k [
AUDIo _
STB
r_ i ouT.uT sE......
Io¢o .....
i-UOOL,0,o oo,,L
FITS€OUTPUT IN_ L E AUDIOOUT 1080i480p,_JL, _ 480p
(AC.3} N ATIVE NTSC k
DIGITAL TV/STANDARD TV RECEPTION WITH CONVENTIONAL TV
SETUP
Procedure
Move the output mode switch tothe NTSC position,
Connect the antenna cable to the splitter.
Connect the splitter outputs to the STB and TV ANT (antenna) jacks using standard RF
cables with coaxial connectors.
Follow directions in Getting Started section to connect the STB to a conventional TV.
[]
