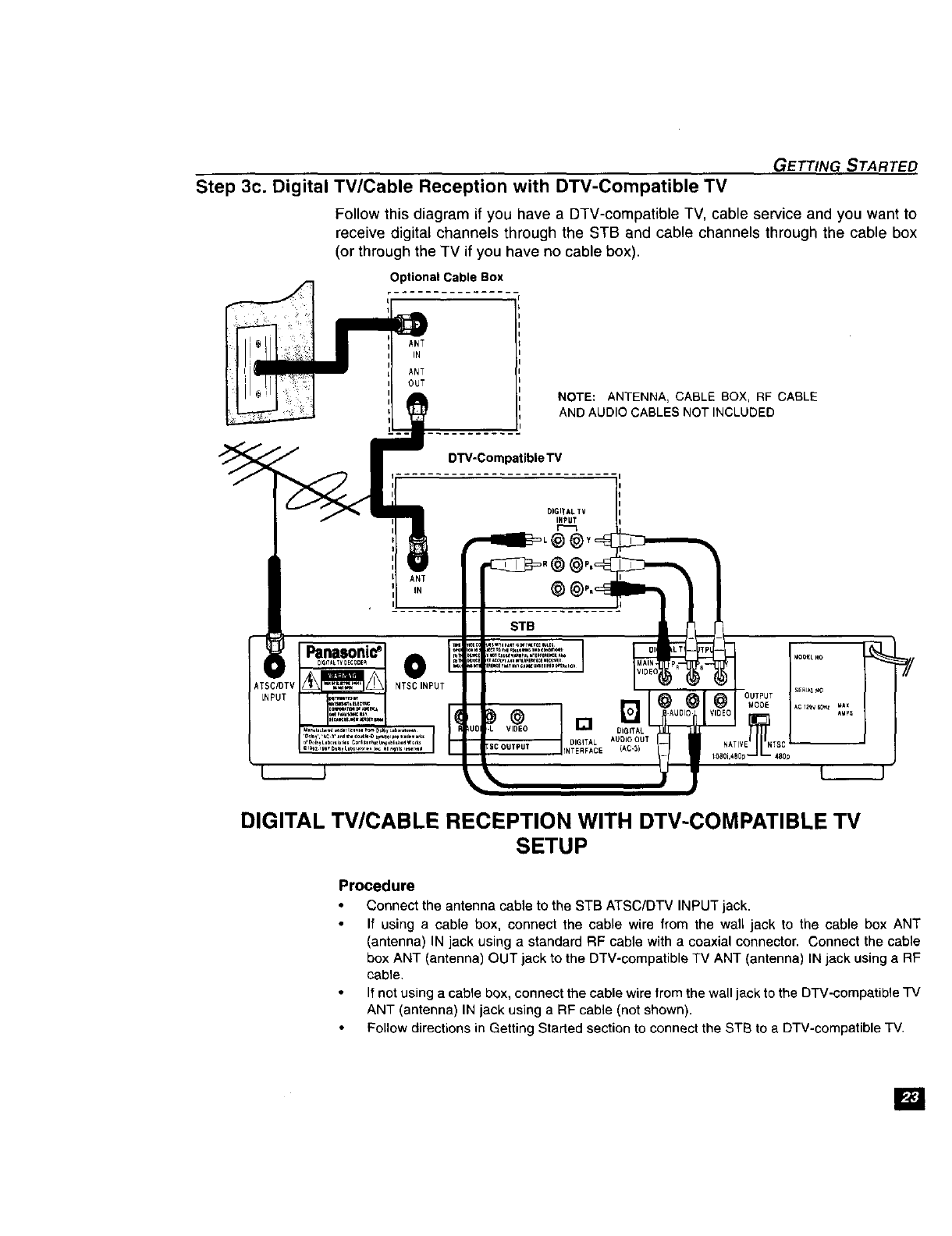

Step 3c. Digital TV/Cable Reception with DTV-Compatible TV
Follow this diagram if you have a DTV-compatible TV, cable service and you want to
receive digital channels through the STB and cable channels through the cable box
(or through the TV if you have no cable box),
Optional Cable Box
NOTE: ANTENNA, CABLE BOX, RF CABLE
AND AUDIO CABLES NOTINCLUDED
DTV-Compatible TV
DIGITALTV
INPUT
NTSC INPUT
DIGITALTV/CABLE RECEPTION WITH DTV-COMPATIBLETV
SETUP
Procedure
Connect the antenna cable to the STB ATSC/DTV INPUT jack.
If using a cable box, connect the cable wire from the wall jack to the cable box ANT
(antenna) IN jack using a standard RF cable with a coaxial connector. Connect the cable
box ANT (antenna) OUT jack to the DTV-compatible TV ANT (antenna) IN jack using a RF
cable.
If not using a cable box, connect the cable wire from the wall jack to the DTV-compatible TV
ANT (antenna) IN jack using a RF cable (not shown).
Follow directions in Getting Started section to connect the STB to a DTV-compatible TV.
[]
