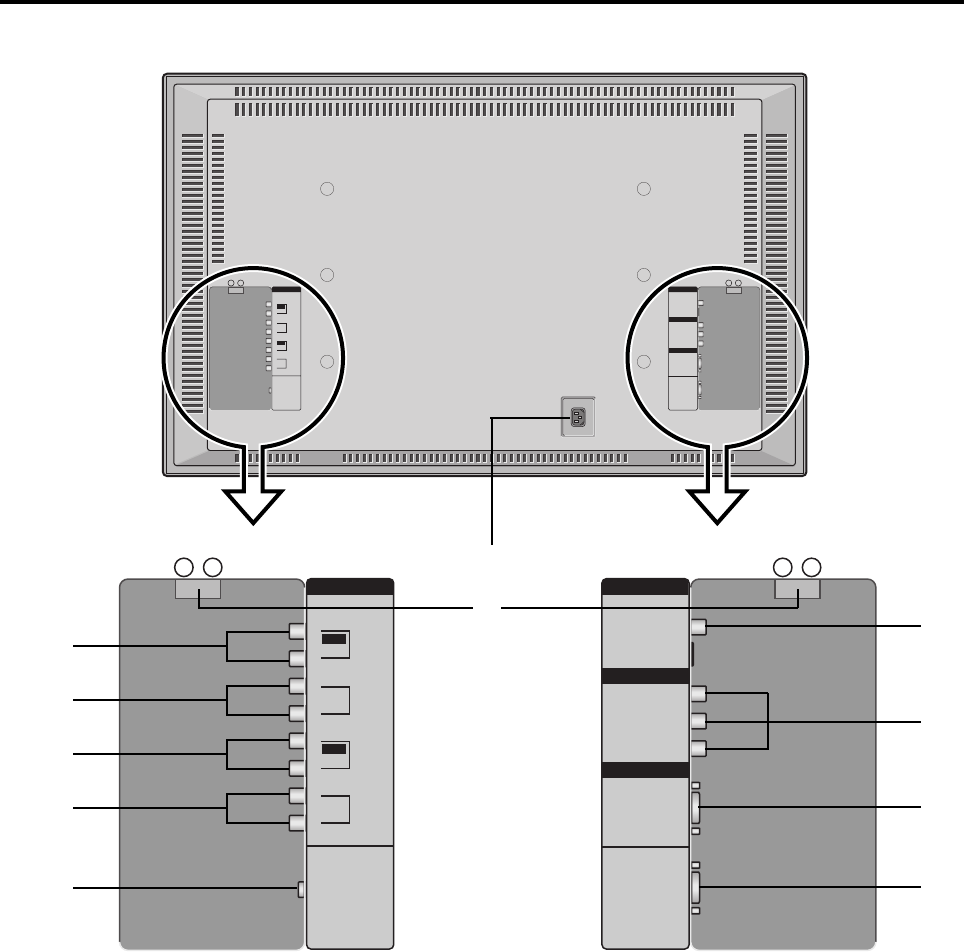

Rear View/ Terminal Board
AUDIO
VIDEO
IN
L
R
MONO
DVD/HD
IN
L
R
RGB
IN
L
R
MONO
AUDIO
OUT
(VARIABLE)
L
R
REMOTE
CONTROL
EXT SPEAKER R
+ –
EXT SPEAKER L
+ –
VIDEO
VIDEO IN
Y/Y
C
B/PB
CR/PR
RGB IN
S-VIDEO IN
EXTERNAL
CONTROL
DVD/HD
RGB
AC IN
F EXTERNAL CONTROL
This terminal is used when power ON/OFF, input se-
lection and AUDIO MUTE and other controls are oper-
ated externally (by external control). See also page 38
for external control.
G AC IN
Connect the included power cord here.
H EXT SPEAKER L and R
Connect speakers here.
H
B
A
C
F
G
A
B
C
D
E
A VIDEO IN/AUDIO IN
Connect VCR's, DVD's or Laser Discs, etc. here.
B DVD/HD (Y/Y, CB/PB and CR/PR) IN/ AUDIO IN
Connect DVD's, high definition Laser Discs, etc. here.
C RGB IN/ AUDIO IN
Connect Computer Source here.
D AUDIO OUT
Connect the external amplifier only for woofer.
The output level depends on the volume setting.
E REMOTE CONTROL
Connect the supplied remote cable here.
