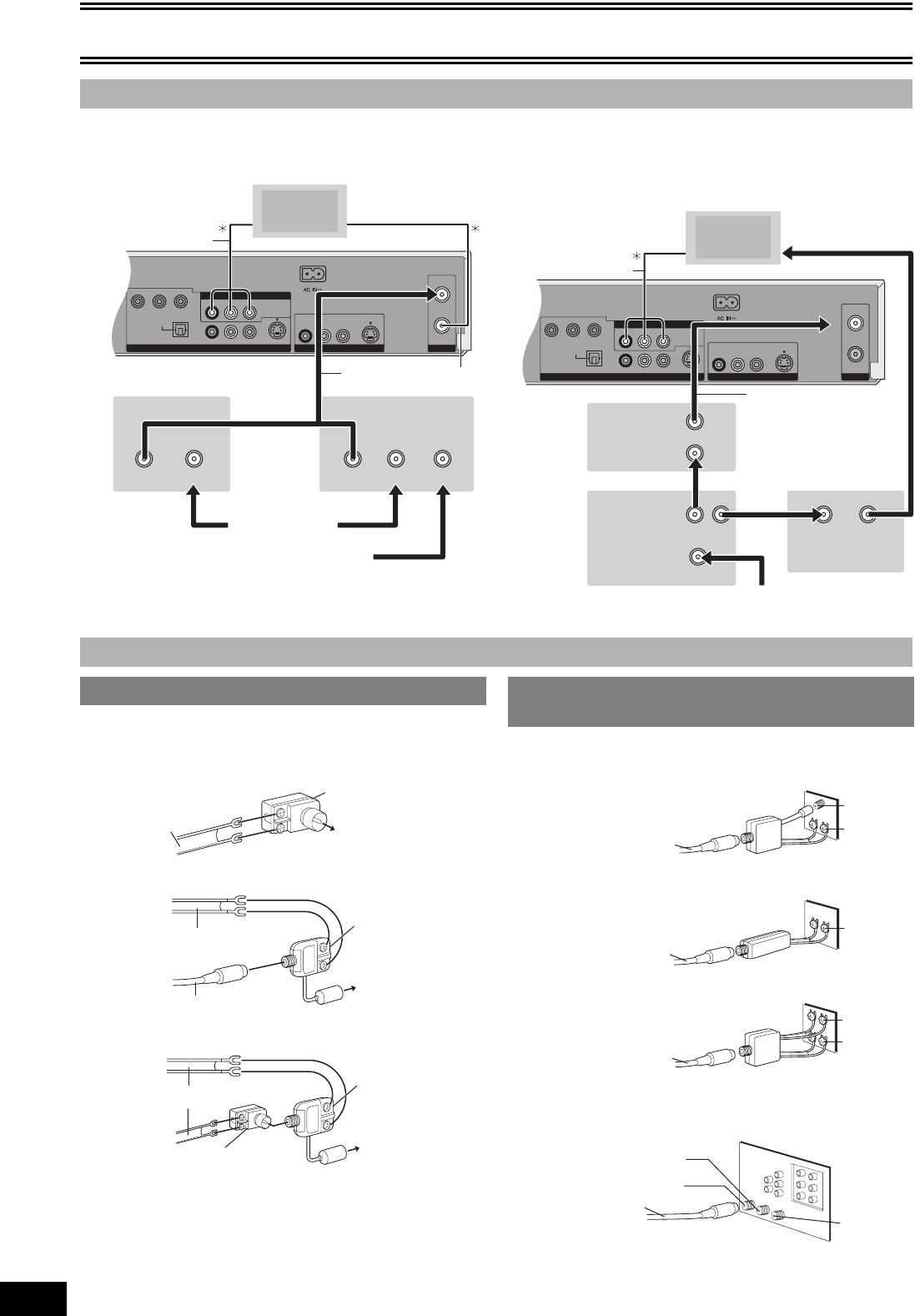

Getting started
14
VQT0N92
≥You need to subscribe to a cable TV or satellite TV service to enjoy viewing their programming.
≥Consult your service provider regarding appropriate cable TV box or satellite receiver.
≥You can enjoy viewing cable TV or satellite TV programming. ≥You can record and view scrambled and unscrambled channels
simultaneously if connections are made as shown in the diagram
below.
¢ For more information on connections (l 13)
Use one of the following connections to suit your antenna lead.
≥If your TV has both lead and coaxial VHF terminals, use the lead
connection to minimize signal loss.
∫A single twin lead
∫A twin lead and a coaxial cable
∫2 twin leads
Use one of the following connections to suit the antenna terminals on
your TV. Refer to the TV’s operating instructions.
∫A twin lead and coaxial plug terminal
∫A twin lead terminal
∫2 twin lead terminals
∫Multiple antenna terminals
≥ Connect to one of the ANT terminals, then change the TV’s setting
as necessary.
∫ Connecting a cable TV box/satellite receiver
RF IN
RF OUT
VHF/UHF
R - AUDIO - L
VIDEO
S VIDEO
IN 1
R - AUDIO - L
VIDEO
R - AUDIO - L
VIDEO
S VIDEO
DVD/VHS COMMON OUT
COMPONENT VIDEO OUT
(480p/480i)
YP
B
P
R
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
DVD OUT
OUT
IN
OUT
IN IN
Satellite receiver
75 ≠ coaxial cable
The unit
From antenna or
cable TV jack
Cable TV box
From satellite dish antenna
Audio/Video cable
TV
To AUDIO/VIDEO IN To VHF/UHF RF IN
or
RF IN
RF OUT
VHF/UHF
R - AUDIO - L
VIDEO
S VIDEO
IN 1
R - AUDIO - L
VIDEO
R - AUDIO - L
VIDEO
S VIDEO
DVD/VHS COMMON OUT
COMPONENT VIDEO OUT
(480p/480i)
YP
B
P
R
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
DVD OUT
OUT
IN
OUT
IN
OUT2 OUT1
IN
2-way
splitter
Cable TV box
The unit
From cable TV jack
75 ≠ coaxial cable
Audio/Video cable
TV
Cable TV
box
To AUDIO/VIDEO IN To VHF/UHF RF IN
∫ If the antenna connector does not match
1 Other antenna connections to the unit
300 to 75 ≠
transformer
from the antenna
(Flat) Twin lead
300 ≠ cable
To the unit’s
RF IN terminal
from the antenna
(Flat) Twin lead 300 ≠ cable
To the unit’s
RF IN terminal(Round)
75 ≠ coaxial cable
VHF/UHF band mixer
from the antenna
To the unit’s
RF IN terminal
300 to 75 ≠ transformer
(Flat) Twin lead 300 ≠ cable
VHF/UHF band mixer
1 Other antenna connections from the unit
to the TV
VHF/UHF band separator
TV
75 ≠ coaxial cable
VHF
UHF
75 ≠ coaxial cable
75 to 300 ≠ transformer
TV
VHF
or
UHF
75 ≠ coaxial cable
VHF/UHF band separator
TV
VHF
UHF
ANT 2
ANT 1
Split out
TV
75 ≠ coaxial cable
