Screen setting
How to set 78
1
Set TIME PERIOD A and TIME PERIOD B using
<TIME PERIOD SET> (P37).
Select "TIME PERIOD A" or "TIME PERIOD B" for
"MASK" under "SELECT TIME PERIOD".
The example uses "TIME PERIOD A".
2
Display the <SCREEN SET> screen as explained in
"Displaying the screen settings" (P74).
The cursor moves to "1. MULTI SCREEN".
3
Turn the J-dial, select "3. MASK", and then turn the
S-dial clockwise.
The "OFF" starts blinking.
4
Turn the J-dial, select "ON", and turn the S-dial
clockwise.
The cursor moves to "MASK SET".
5
Turn the S-dial clockwise.
The <MASK SET> screen appears and the cursor
moves to "T-1".
6
Turn the S-dial, and use the J-dial to select the
desired TIME PERIOD (example: T-2), and then turn
the S-dial clockwise.
The cursor moves to "01" (CH) of the MAIN MON. line.
7
Turn the J-dial to select the camera number
(example: 03) of the MAIN MON., and then turn the
S-dial clockwise.
8
Turn the J-dial, select "ON", and turn the S-dial
clockwise.
Repeat the procedure to turn the masking "ON" for all
desired cameras on MON.2 and on NETWORK.
9
Press the EXIT/OSD button.

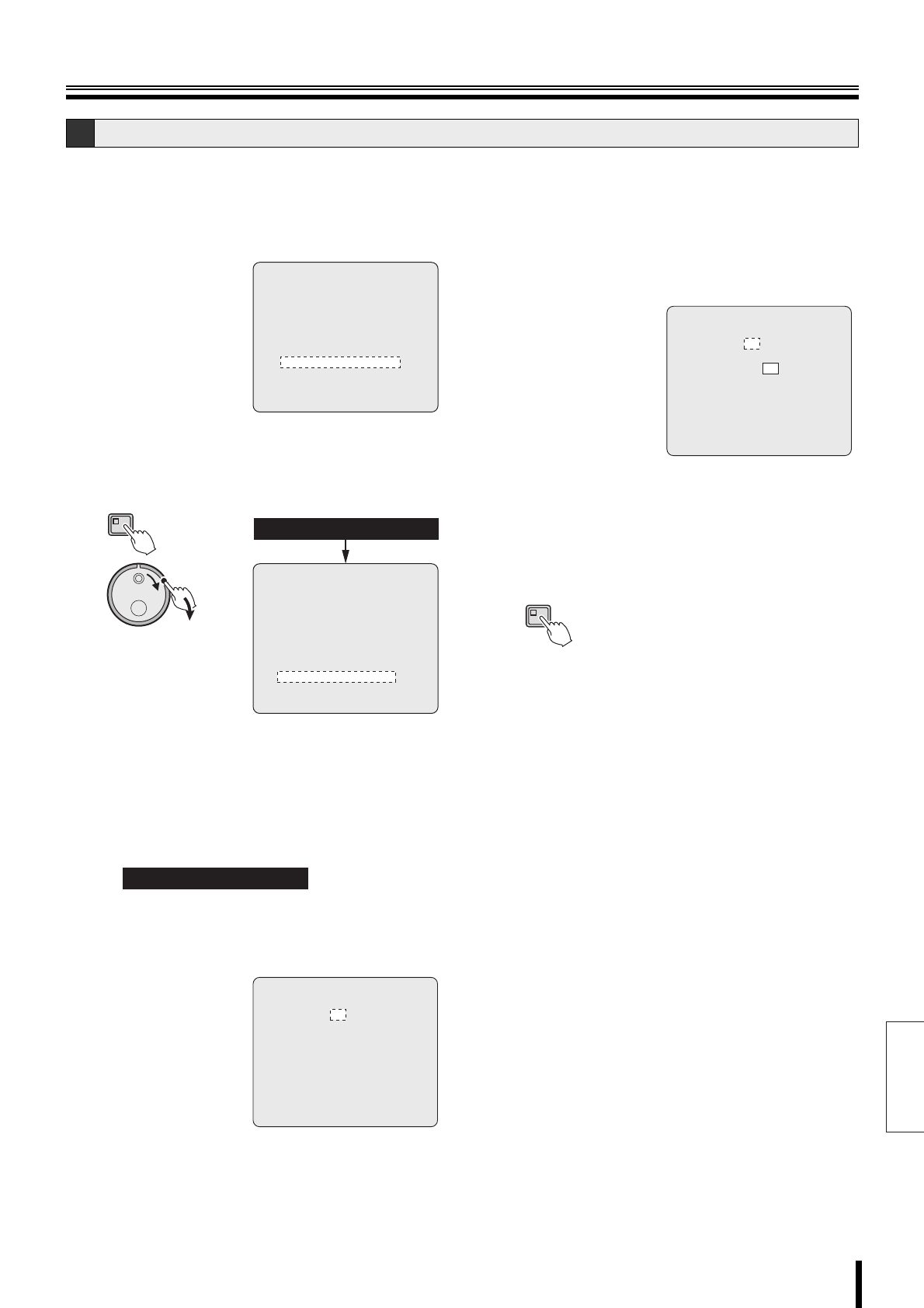

C Masking specific camera images
<TIME PERIOD SET>
TIME PERIOD T-1 T-2 T-3 T-4
TIME PERIOD A 06:00 11:30 13:30 18:00
TIME PERIOD B 06:00 08:00 14:30 20:00
SELECT TIME PERIOD
SEQUENCE TIME PERIOD A
MASK TIME PERIOD A
MOTION SENSOR TIME PERIOD A
<SCREEN SET>
1.MULTI SCREEN : CHANGE
QUAD POSITION SET ->
MULTI 9 POSITION SET ->
MULTI 16 POSITION SET ->
2.SEQUENCE : 1SEC
SEQUENCE SET ->
MAIN/MON.2 MONITOR SET ->
MASK SET ->
4.COLOR LEVEL SET ->
(S)
MENU
4.SCREEN SET
<MAIN MENU>
3.MASK : ON
MASK SET ->
<MASK SET>
CH 01 02 03 04 05 06 07 08
MAIN MON. OFF OFF OFF OFF OFF OFF OFF OFF
MON.2 OFF OFF OFF OFF OFF OFF OFF OFF
NETWORK OFF OFF OFF OFF OFF OFF OFF OFF
CH 09 10 11 12 13 14 15 16
MAIN MON. OFF OFF OFF OFF OFF OFF OFF OFF
MON.2 OFF OFF OFF OFF OFF OFF OFF OFF
NETWORK OFF OFF OFF OFF OFF OFF OFF OFF
TIME PERIOD : T-1 (06:00-11:30)
<MASK SET>
CH 01 02 03 04 05 06 07 08
MAIN MON. OFF OFF ON OFF ON OFF ON OFF
MON.2 OFF ON OFF ON OFF ON OFF ON
NETWORK ON OFF ON OFF ON OFF ON OFF
CH 09 10 11 12 13 14 15 16
MAIN MON. OFF OFF OFF OFF OFF OFF OFF OFF
MON.2 OFF OFF OFF OFF OFF OFF OFF OFF
NETWORK OFF OFF OFF OFF OFF OFF OFF OFF
TIME PERIOD : T-2 (06:00-11:30)
EXIT/OSD
