VIDEO OUT VIDEO IN
AUDIO OUT AUDIO IN
OUTPUT
INPUT
S-VIDEO
KEYBOARD
MOUSE
USB
LAN
VGA
BILL / COIN
RESET
CONTROL
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER, NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE
THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AUDIO Output
Audio L, R output terminals (1, 2).
Audio L, R input terminals for recording.
AUDIO Input
VIDEO Output
VIDEO IN
1
2
3
4
S-VIDEO Input
S-VIDEO Output
5
6
1
6
16
3
7
8 9 10
2 11
12 13 14
15
4 5
Composite video input terminal.
(Currently disabled)
S-Video video input terminal.
(Currently disabled)
S-Video video output terminal.
Composite video output terminals (1, 2).

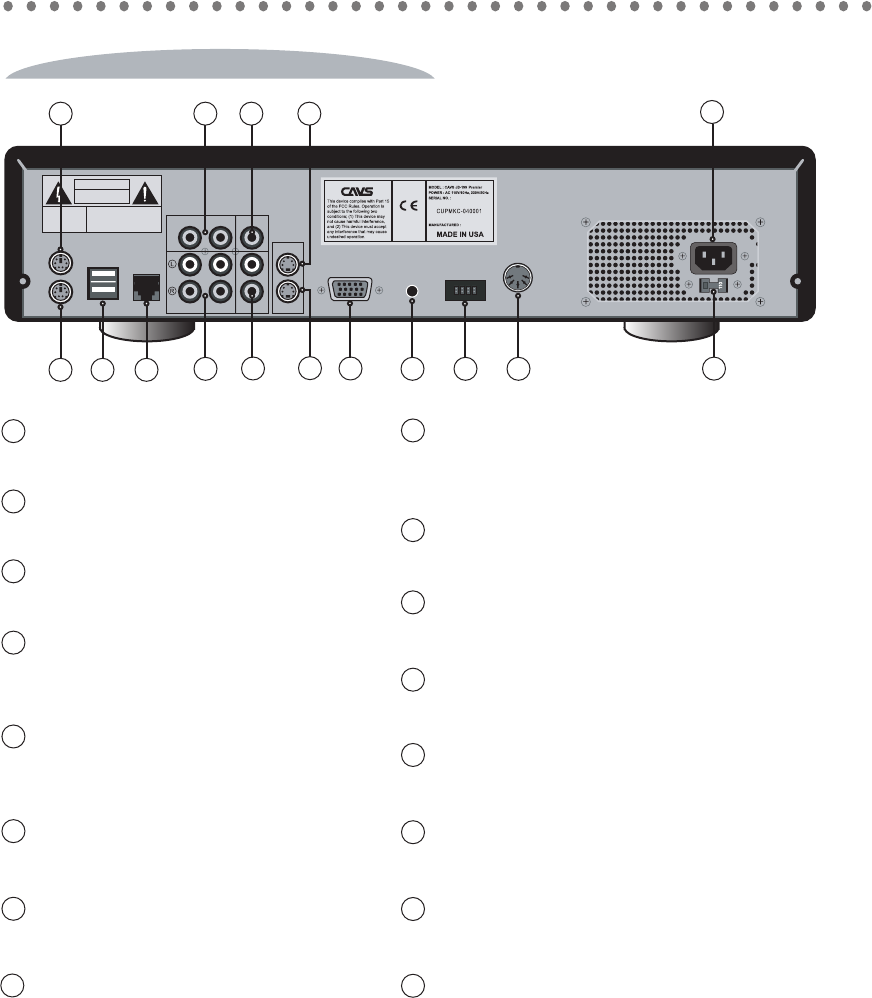

CONTROLS AND FUNCTIONS
REAR PANEL
8
14
7
10
9
13
12
USB 2.0
USB connectors (1, 2) for external disc drive,
hard drive, USB camera, DataStick, etc.
LAN (100/10 Mbps)
LAN connector for 100/10 Mbps LAN cable.
11
VGA
15-pin connector for PC monitor.
RESET
Press to restart JB-199 Premier.
CONTROL
Audio / video output control terminal.
BILL / COIN
OPDIN connector for bill, coin, or card acceptor.
15
16
POWER Selector
Select power input between 110V/60Hz and 230V/50Hz.
POWER Cord Plug
Plug for power cord.
KEYBOARD
Mini-din connector for PC keyboard.
MOUSE
Mini-din connector for PC mouse.
11
