Installation
Page 3 - 2 EchoStar DVR-7000 Viaccess
© 2002 EchoStar International Corporation
All rights reserved
.
2. CONNECT A DISH
It is possible to connect the different dish configurations with the use of RF coaxial cables.
Only the most common configurations are discussed. If in doubt, please ask the EchoStar
service department for advice.
1. On the dish installation, connect a RF cable (for detailed instructions, refer to the
manufacturer’s instructions).

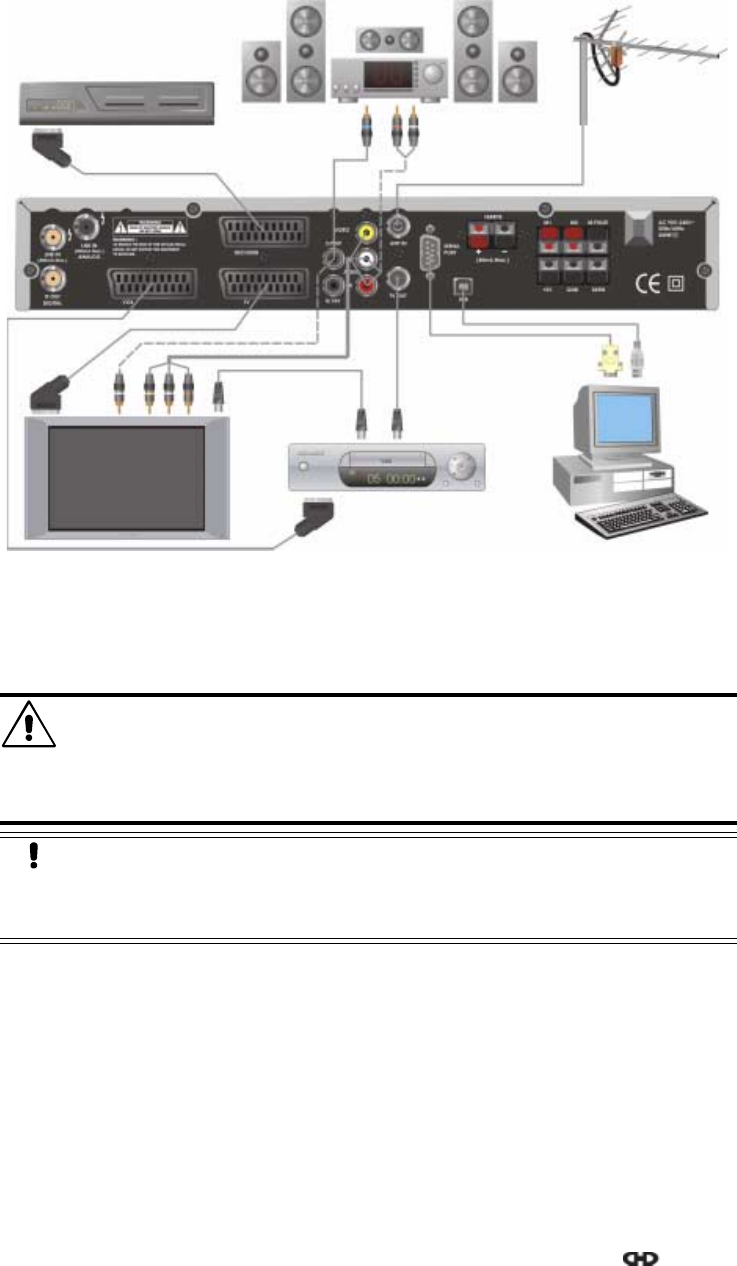

2. On the rear panel of the receiver find the LNB IN (digital), the IF OUT and the
LNB IN ANALOG connectors.
FIXED DISH INSTALLATION WITH LNB(F)
3. Install the F-connector (dish) to the LNB IN connector (receiver).
4. Install the delivered loop through cable between the IF OUT connector (receiver) to the
LNB IN ANALOG connector (receiver).
WARNING
ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY
ANDSWITCHEDOFF
.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION
TASK
.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE
TO EQUIPMENT
.
CAUTION
Tighten the cable connectors only by hand. Do not use any tools. You will damage
the connector pins if you overtighten the connector. This will result in loss of signal
quality, or even total loss of reception.
