Familiarization
Section 4
Digital Satellite Receiver Page 4 - 13
© 2002 EchoStar International Corporation
All rights reserved
4

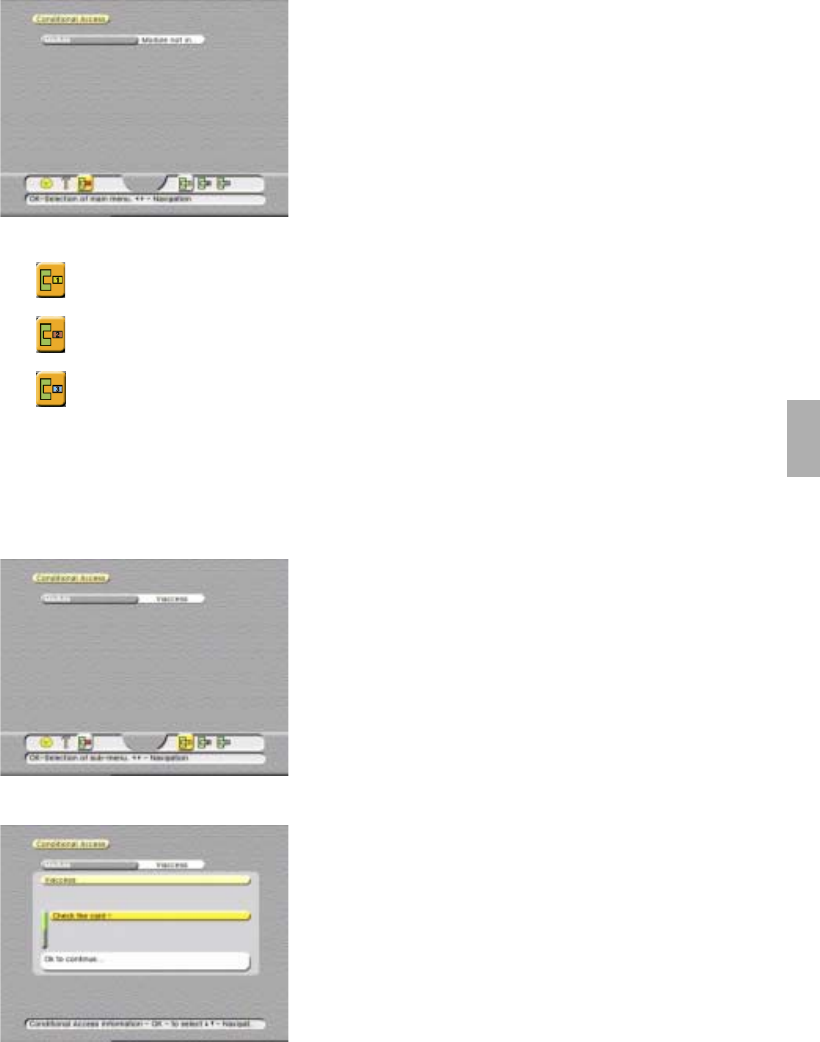

2.3. THE CI INFORMATION MENU
The button, that gives you access to the CI-module 1 information page;
The button, that gives you access to the CI-module 2 information page;
The button, that gives you access to the Viaccess smart card reader information page.
2.3.1. CI-MODULES
The CI-modules sub menu gives all the Information about the CI-module and related smart
card that is inserted. Note that the menu is dynamic which means that it changes with the
type of CI-module and related smart card inserted. The menus for slots 1, 2 and 3 are almost
identical, therefore only an example for slot 1 is shown. You can view:
CONDITIONAL ACCESS INFORMATION
This main menu has different sub menus that give
access to the pages where you can view the
CI-module and smart card settings.
Note that the sub menus are dynamic which means
that they change with the selections you make.
The conditional access information menu always
comesinviewwiththesystemsetupsubmenu.Inthe
menu bar the sub menus are shown at the right side.
The available sub menus are shown as icons which
become a highlighted button after selection. The sub
menus are accessible with:
■ Module
Gives information about which CI-module and
related smart card is inserted in the selected
CI-slot.
■ Viaccess Embedded (smart card reader only)
Gives information about which Viaccess
compatible smart card is inserted in the Viaccess
smart card reader.
■ As an example;
this page shows the additional information that is
available from the inserted CI-module and
smart card.
■ Note that this page can show differently for other
CI-modules and smart cards.
■ EchoStar has no control over the information
provided by the related service provider, therefor
no specific information is given.
