The S VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal. (Actual results depend on the television.)
COMPONENT VIDEO terminals can be used for either interlace or
progressive output (Ô page 49) and provide a purer picture than the
S VIDEO OUT terminal.
• Connect to terminals of the same colour.
If you have a regular television (CRT : cathode ray tube)
Use component output with progressive “Off” (Factory setting,
Ô page 40), even if it is progressive compatible, because
progressive output can cause some flickering. This is the same for
multi system televisions using PAL mode.
n Connecting to an amplifier with a digital input
terminal
• To enjoy multi-channel surround sound DVD-Video, connect an
amplifier with Dolby Digital, DTS and MPEG decoders.
“Digital Audio Output” in the Setup menu (Ô page 40)
• Before purchasing an optical digital audio cable, check the terminal
shape of the connected equipment.
• You cannot use DTS Digital Surround decoders not suited to DVD.
• Even if using this connection, output will be only 2 channels when
playing DVD-Audio.
n Connecting to a stereo amplifier
Other connections

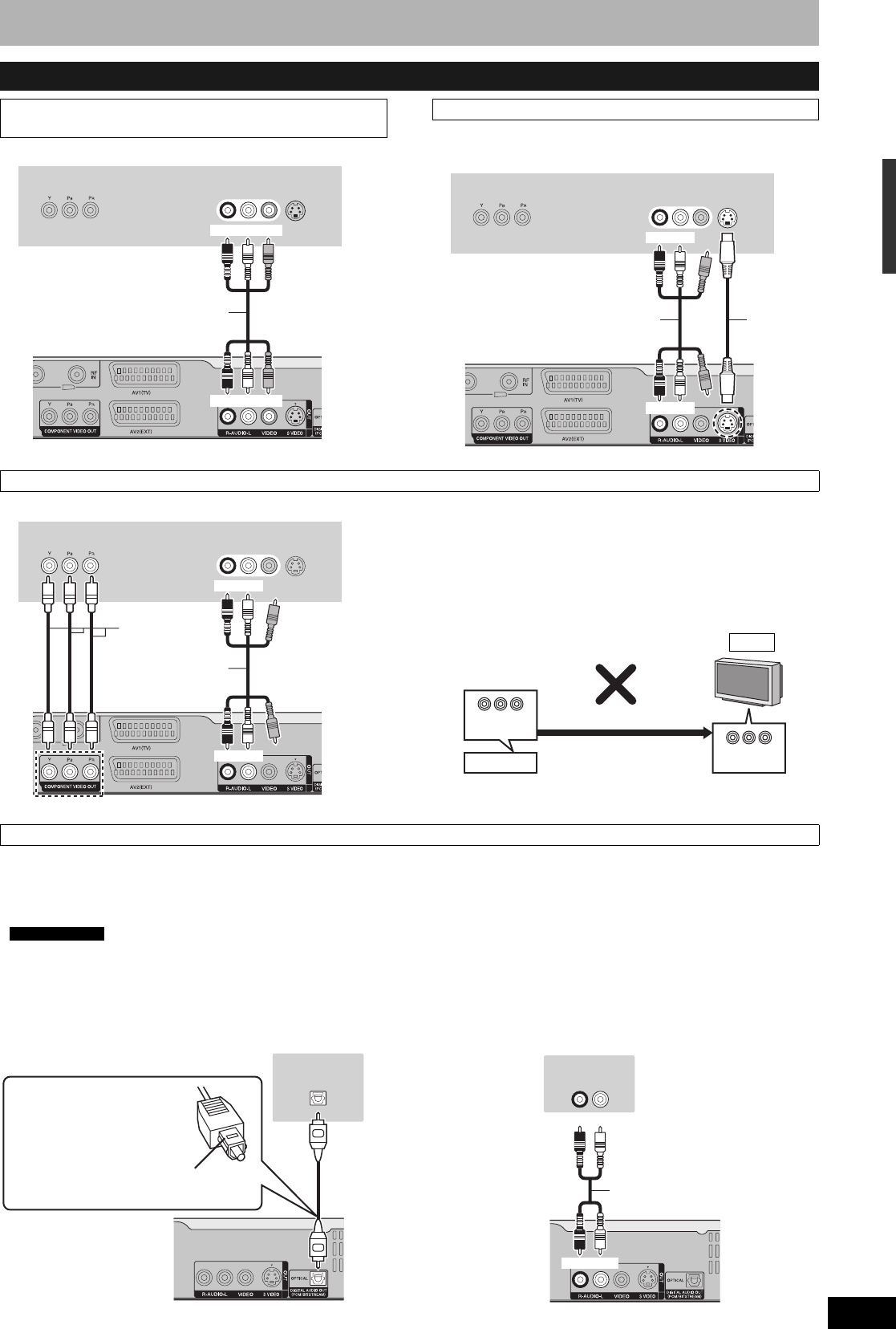

Connecting to a television with AUDIO/VIDEO
terminals
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
IN
Television’s rear panel
Audio/video cable
(included)
This unit’s rear panel
Red White Yellow
Red White Yellow
Connecting to a television with S VIDEO terminals
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
IN
Television’s rear panel
Audio/video cable
(included)
S Video
cable
This unit’s rear panel
Red White
Red White
Connecting to a television with COMPONENT VIDEO terminals
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
IN
Television’s rear panel
Audio/video cable
(included)
Video cable
This unit’s rear panel
Red White
Red White
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
This unit
Progressive output
CRT
Connecting to an amplifier or system component
Required setting
OPTICAL IN
Optical digital audio cable
Do not bend this cable sharply.
Insert fully, with this side facing up.
This unit’s rear panel
Amplifier’s rear panel
AUDIO IN
R L
Amplifier’s rear panel
This unit’s rear panel
Audio cable
Red White
Red White
Connection
