Chapter 2
Connections

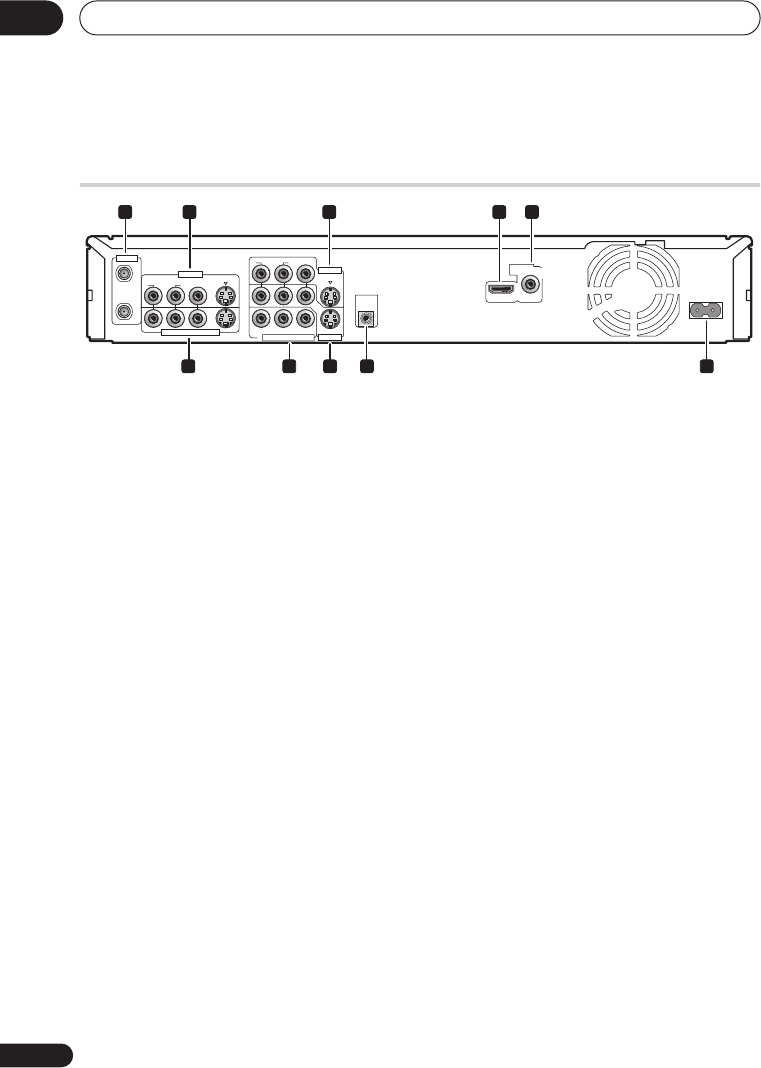

Rear panel connections
1 ANTENNA IN (RF IN)/OUT
Connect your TV antenna to the
ANTENNA
IN (RF IN)
jack. The signal is passed through
to the
ANTENNA OUT
jack for connection to
your TV.
2 INPUT 3
Stereo analog audio, video and S-video
inputs for connection to a satellite receiver,
set top box, etc.
3 OUTPUT 2
Stereo analog audio, video and S-video
outputs for connection to a TV or AV
amplifier/receiver.
4 HDMI OUT
HDMI output for high quality digital audio
and video.
5 DIGITAL AUDIO OUT (COAXIAL)
Coaxial digital audio jack for connecting to
an AV amplifier/receiver, Dolby Digital/DTS
decoder or other equipment with a digital
input.
6 INPUT 1/AUTO START REC
Stereo analog audio, video and S-video
inputs for connection to a satellite receiver,
set top box, etc.
7 COMPONENT VIDEO OUT
A high-quality video output for connecting to
a TV or monitor with a component video
input.
8 OUTPUT 1
Stereo analog audio, video and S-video
outputs for connection to a TV or AV
amplifier/receiver.
9 CONTROL IN
Use to control this recorder from the remote
sensor of another Pioneer component with a
CONTROL OUT
terminal and bearing the
Pioneer
mark. Connect the
CONTROL
OUT
of the other component to the
CONTROL IN
of this recorder using a mini-
plug cord.
10 AC IN – Power inlet
Connect to a power outlet using the supplied
power cable after making all other
connections.
