Connecting up
02
23
En
Connecting other AV sources
Connecting a VCR or analog
camcorder

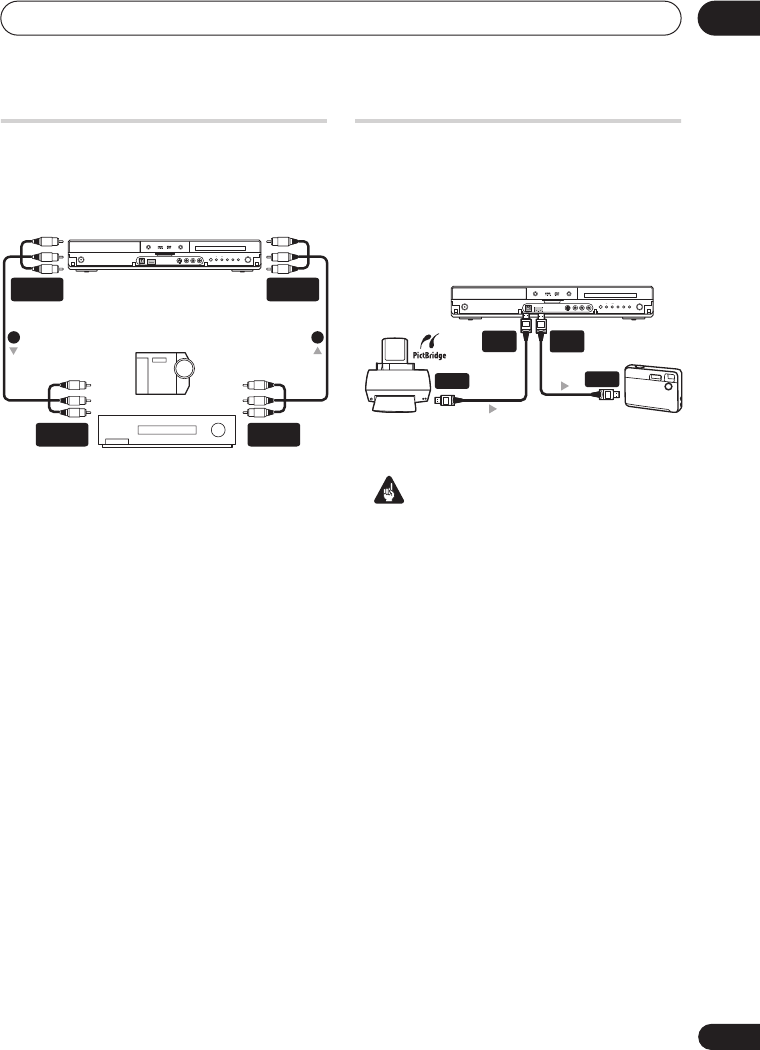

1 Connect a set of audio and video
inputs of your VCR or camcorder to a set
of outputs on this recorder.
This enables you to record from this recorder
to your VCR or camcorder.
• You can use standard video or S-video
cables for the video connection.
• Alternatively, you can use the
AV2(INPUT 1/DECODER)
SCART
connector for audio/video input and
output with just one SCART cable.
2 Connect a set of audio and video
outputs of your VCR or camcorder to a
set of inputs on this recorder.
This enables you to record tapes from your
VCR or camcorder.
• You can use standard video or S-video
cables for the video connection.
• The front panel connections make
convenient connections for a camcorder
input.
Plugging in
After checking all the connections, plug in
the recorder.
1 Use the supplied power cable to
connect this recorder to a power outlet.
Analog camcorder
VCR
HDD/DVD
ONE
TOUCH
COPY
STOP
REC
CH
OPEN/CLOSE
STANDBY/ON
ì REC
+–
(Rear panel) (Front panel)
AUDIO/VIDEO
OUTPUT
AUDIO/VIDEO
INPUT
1 2
AUDIO/VIDEO
INPUT
AUDIO/VIDEO
OUTPUT
