Connecting the Crystal
Series LCD to Source
Components
Connect your video sources to the Crystal Series LCD as shown and described in the
sections that follow.
HDMI Connections: The Crystal Series LCD has four HDMI inputs for connecting a
BD/HD-DVD/DVD player, DTV decoder, personal computer or any other device with an
HDMI or DVI output. Connect such devices as shown in
Figure 3-1.

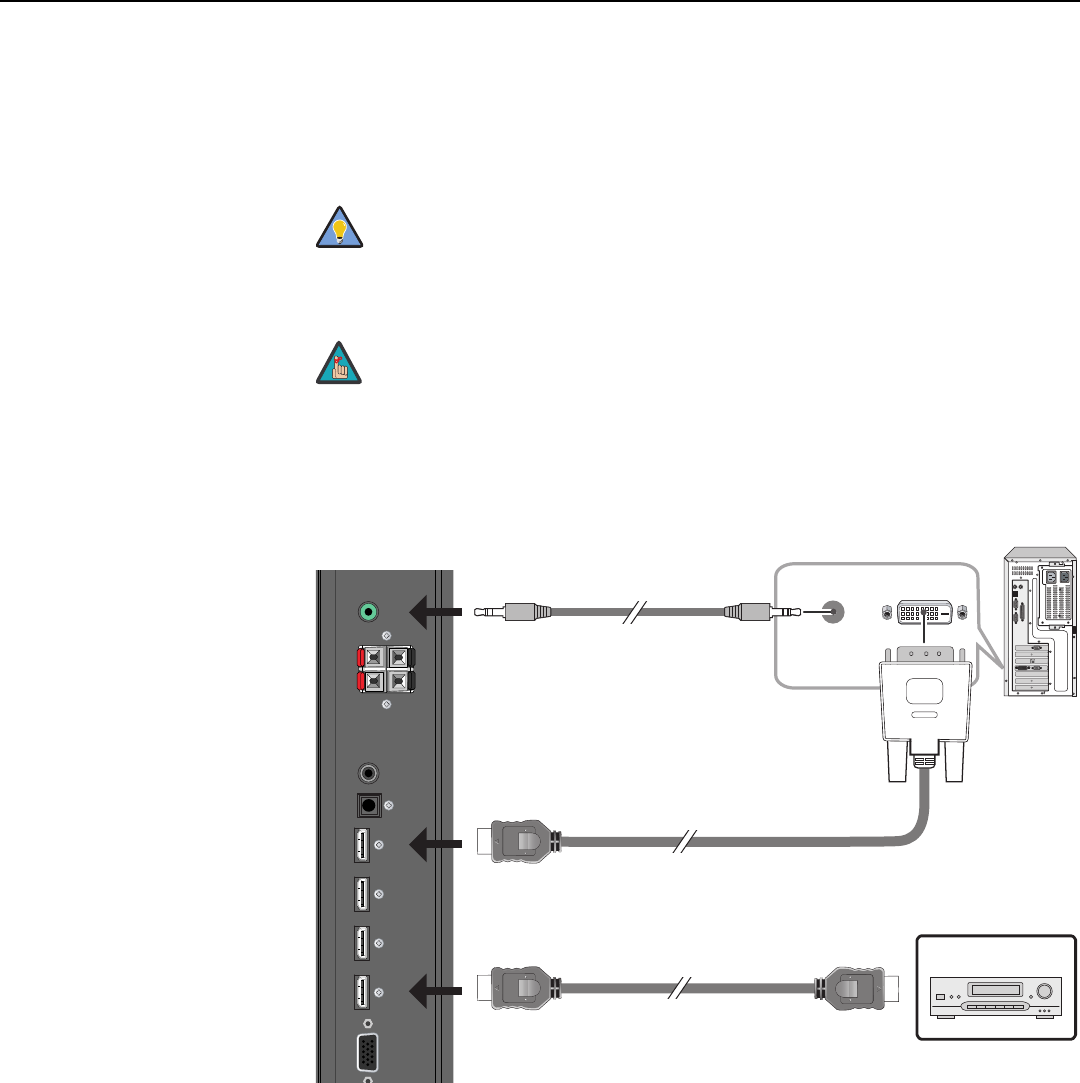

Figure 3-1. HDMI Connections
➤
Use the HDMI inputs whenever possible. This ensures the highest
video quality because the signal is carried in the digital domain
throughout the entire signal path, from source component output
into the display.
This Crystal Series LCD supports the VESA Display Data Channel
(DDC) standard. This standard provides “Plug and Play” capability;
the display and a VESA DDC-compatible computer communicate
their setting requirements, allowing for quick and easy setup.
In order for Plug and Play to work correctly, you must turn on the
display before you turn on the connected computer.
Tip
Note
RGB
PC
Audio In
Speaker Out
HDMI 4HDMI 3HDMI 2HDMI 1
SPDIF Out
IR
In
L R
–
+
HDMI or
DVI-to-HDMI Cable
(sold separately)
BD/HD-DVD/
DVD/DTV STB
DVI-to-HDMI Cable
(sold separately)
Audio Cable
(Sold Separately)
Rear of the PC
