Installation
CX-47HD/CX-OPAL47/CX-65HD Installation/Operation Manual 19
PRE
L
IMINAR
Y

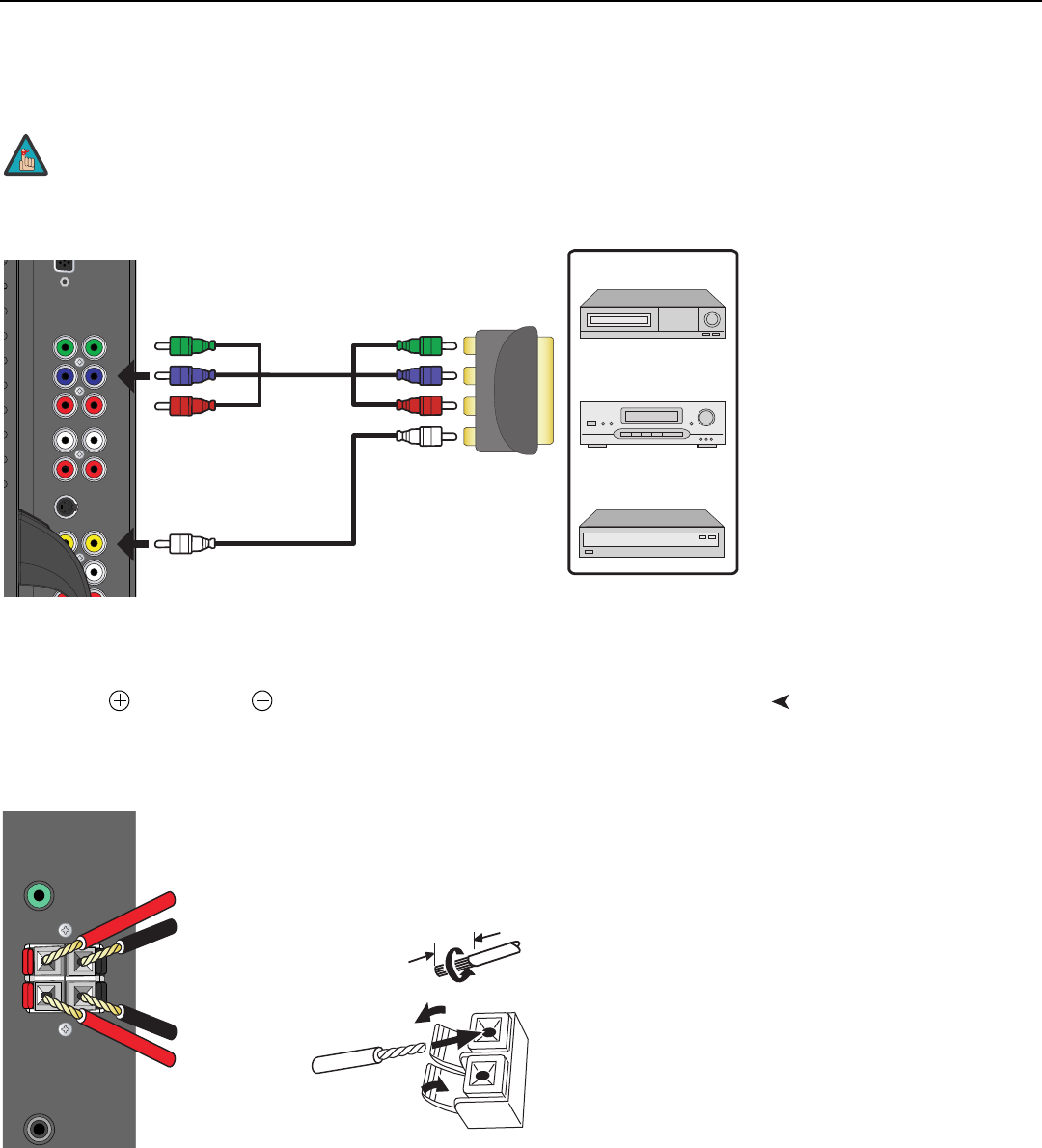

SCART Video Connections: Connect the green, blue and red outputs from your SCART
source to the Component
1 input on the Crystal Series LCD. Connect the sync output
from your SCART source to the Video
1 input on the Crystal Series LCD. See Figure 3-5.
Figure 3-5. SCART RGB Connections
Connecting External
Speakers (Optional)
Connect the (positive) and (negative) speaker wires to the SPEAKER-R and
SPEAKER-L terminals; see Figure 3-6. Maintain the correct polarity. For more
information, refer to the owner’s manual for your speakers.
Figure 3-6. External Speaker Connection
You must enable SCART connectivity in the Setup menu to use
SCART sources; refer to SCART on page 37.
Note
COMPONENT 1 Video 1
Video 2
Video 2/
S-Video
COMPONENT 2
COMP 1 Audio
COMP 2 Audio Video 2 Aud
L
L
L R
L R
Video 1 Aud
Gaming Console
VCR
DVD/DTV STB
Sync
SCART-RGBS
Adapter
Green
Blue
Red
Green
Blue
Red
Sync
PC
Audio In
Speaker Out
IR
In
L R
+
Left Speaker
Right Speaker
12 mm
Twist exposed
wire strands
together.
Push tab to the
open position, and
insert the wire.
Then, close tab firmly to
secure the wire in place.
