Installation
CX-47HD/CX-OPAL47/CX-65HD Installation/Operation Manual 21
PRE
L
IMINAR
Y
Connecting an External IR
Receiver
If infrared signals from the remote control cannot reach the display due to excessive
distance or obstructions such as walls or cabinet doors, you can connect an external IR
repeater system to the IR INPUT on the Crystal Series LCD to extend the range of the
remote control. See
Figure 3-8.

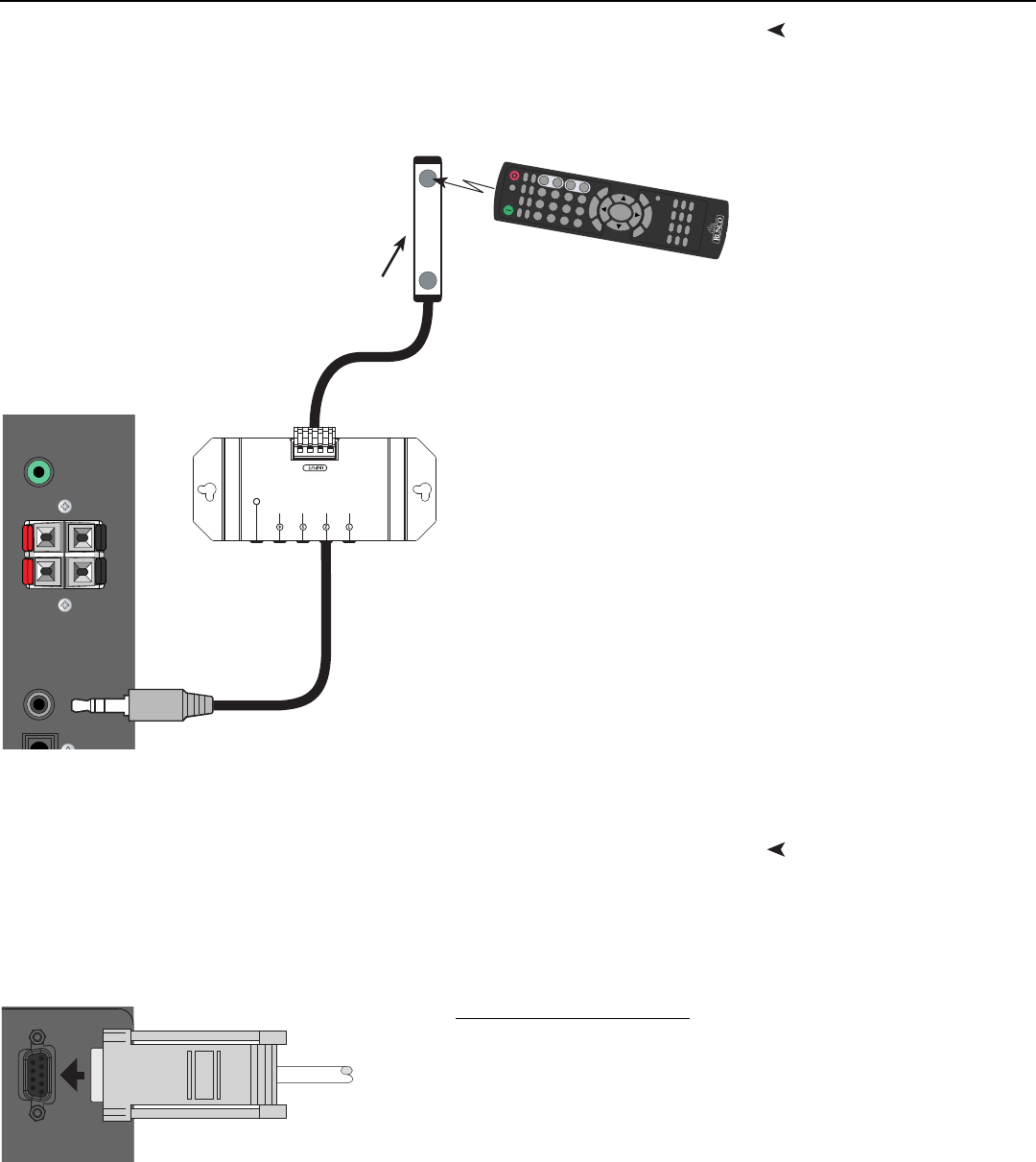

Figure 3-8. External IR Receiver Connection
RS-232 Controller
Connection
Use a straight-through RS-232 cable with a 9-pin male connector to connect a PC or
home theater control/automation system (if present) to the RS-232 port on the Crystal
Series LCD; see
Figure 3-9.
For more information about using this connection, refer to Serial Communications on
page 47.
Figure 3-9. RS-232 Control System Connection
PC
Audio In
Speaker Out
SPDI
IR
In
L R
–
+
RGB
16:9 4:3 LETTER V WIDE
TIMER
OFF
VO
L
-VO
L
+
E
N
T
E
R
M
EN
U
C
U
S
T
O
M
PIP
123+
456–
789+
100
0
MUTE
–
POSITION SIZE SWAP
HDMI 1 HDMI 2 HDMI 3 HDMI 4
COMP 1 COMP 2 VID 1 VID 2
BRIGHT
CONTR
PIP SRC AUDIO 1 AUDIO 2AUDIO 3
IS
F
D
A
Y
IS
F
N
IG
H
T
E
X
IT
IN
F
O
(3.5-mm, mini
phono plug)
IR Sensor
IR Repeater
Remote Control
RS232
To PC or
Automation/
Control
System
DB-9 Male
Connector Pin Assignments:
2 Receive Data
3Transmit Data
5Ground
1, 4, 6, 7, 8, 9 Not Connected
