Installation
18 CX-47HD/CX-OPAL47/CX-65HD Installation/Operation Manual
PRE
L
IMINAR
Y
Component Video Connections: If you have a DVD player, DTV decoder with a
component (YPbPr) output or other component video source, connect it to the
COMPONENT
1 or COMPONENT 2 input as shown in Figure 3-3.

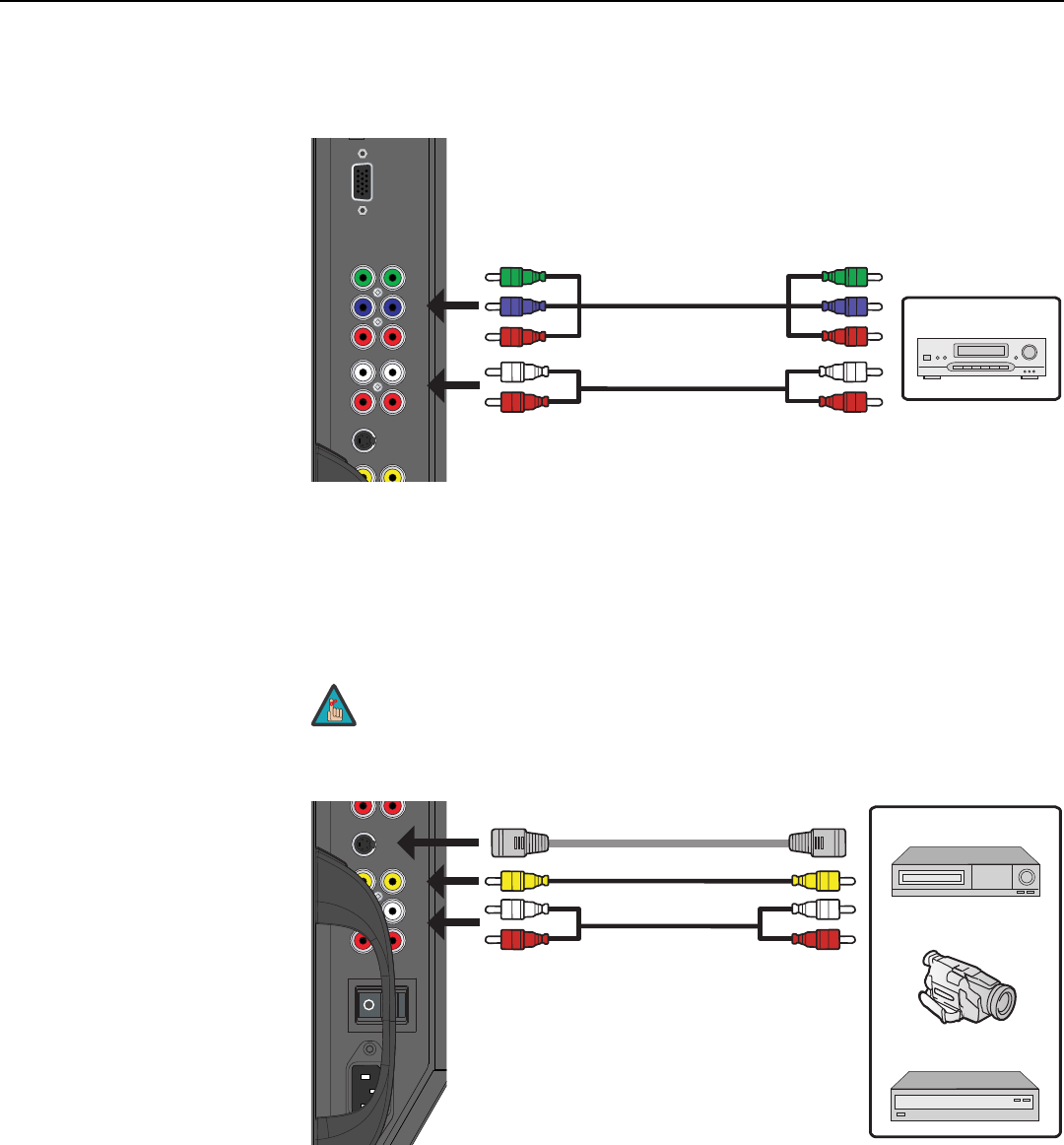

Figure 3-3. Component Video Connections
Composite/S-Video Connections: The Crystal Series LCD has two (2) Composite
video inputs and an S-Video input for connecting a VCR, camcorder, laser disc player or
DVD player; see
Figure 3-4.
Figure 3-4. Composite and S-Video Connections
If you connect an S-Video source to the Video 2 input, the
Composite input on Video
2 is inactive.
COMPONENT 1 Vide
o
Vide
o
Video 2/
S-Video
COMPONENT 2
COMP 1 Audio
COMP 2 Audio
L R
L R
RGB
DVD/DTV STB
Audio Cable
Video Cable
Note
Video 1
Video 2
Video 2/
S-Video
dio
dio Video 2 Audio
L R
L R
R
R
Video 1 Audio
Gaming Console
VCR
Camcorder
Audio Cable
Composite Video Cable
S-Video Cable
