Installation
20 Runco CinemaWall SP-42/-50/-60 Owner’s Operating Manual
PRE
L
IMINAR
Y

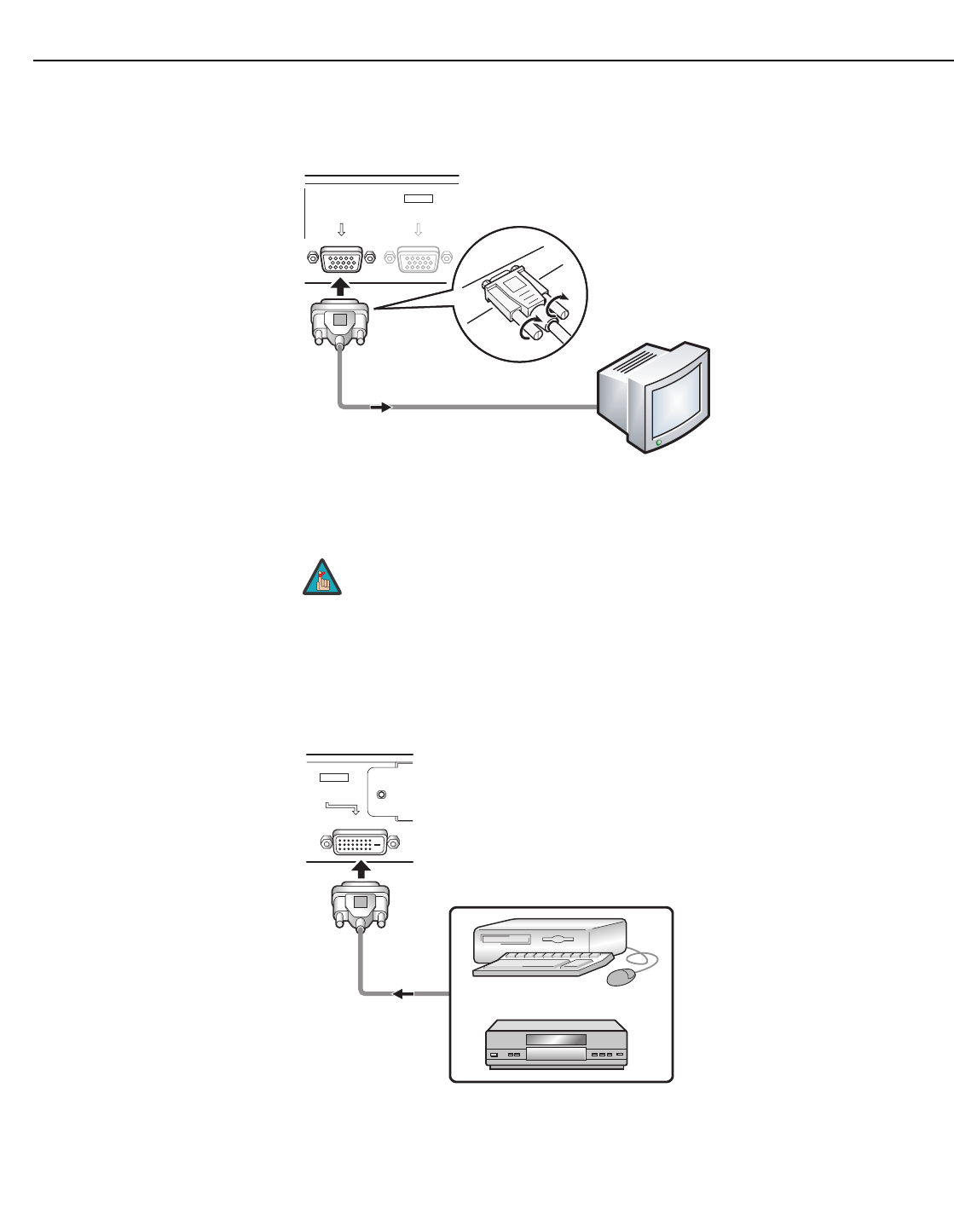

ANALOG RGB OUT (INPUT 1) Connection: The CinemaWall has an RGB output for
looping the signal received at INPUT 1 out to a second RGB display device. Connect the
second display device to the ANALOG RGB OUT connector as shown in
Figure 3-4.
Figure 3-4. ANALOG RGB OUT (INPUT 1) Connection
DVI-D (INPUT 2) Connection: The CinemaWall has a DVI-D input for connecting a
personal computer, DVD player, DTV decoder or any other device with a DVI output.
Connect such devices to INPUT 2 as shown in
Figure 3-5. Use a 24-pin, DVI-D (digital
only) cable.
Figure 3-5. DVI-D (INPUT 2) Connection
A video signal is not output when the CinemaWall is powered off or in
standby mode.
To external monitor
ANALOG RGB OUT
(D-Sub)
ANALOG RGB IN
(D-Sub)
INPUT1
Note
DIGITAL RGB
(DVI-D)
INPUT2
