Runco CinemaWall SP-42/-50/-60 Owner’s Operating Manual 23
PRE
L
IMINAR
Y
Audio ConnectionsAttaching the Ferrite Cores to the Audio Cables: Three (3), small ferrite cores are
provided with the CinemaWall. Before connecting your audio equipment, attach a ferrite
core to each audio cable as shown in
Figure 3-9. Doing so will reduce radio frequency
interference (RFI) emissions to a level that conforms to FCC regulations.
Wind the audio cable around the ferrite core once, then fasten the catch. If you are using
all five audio inputs and/or the audio output (see
Figure 3-11), obtain and install additional
ferrite cores as needed.

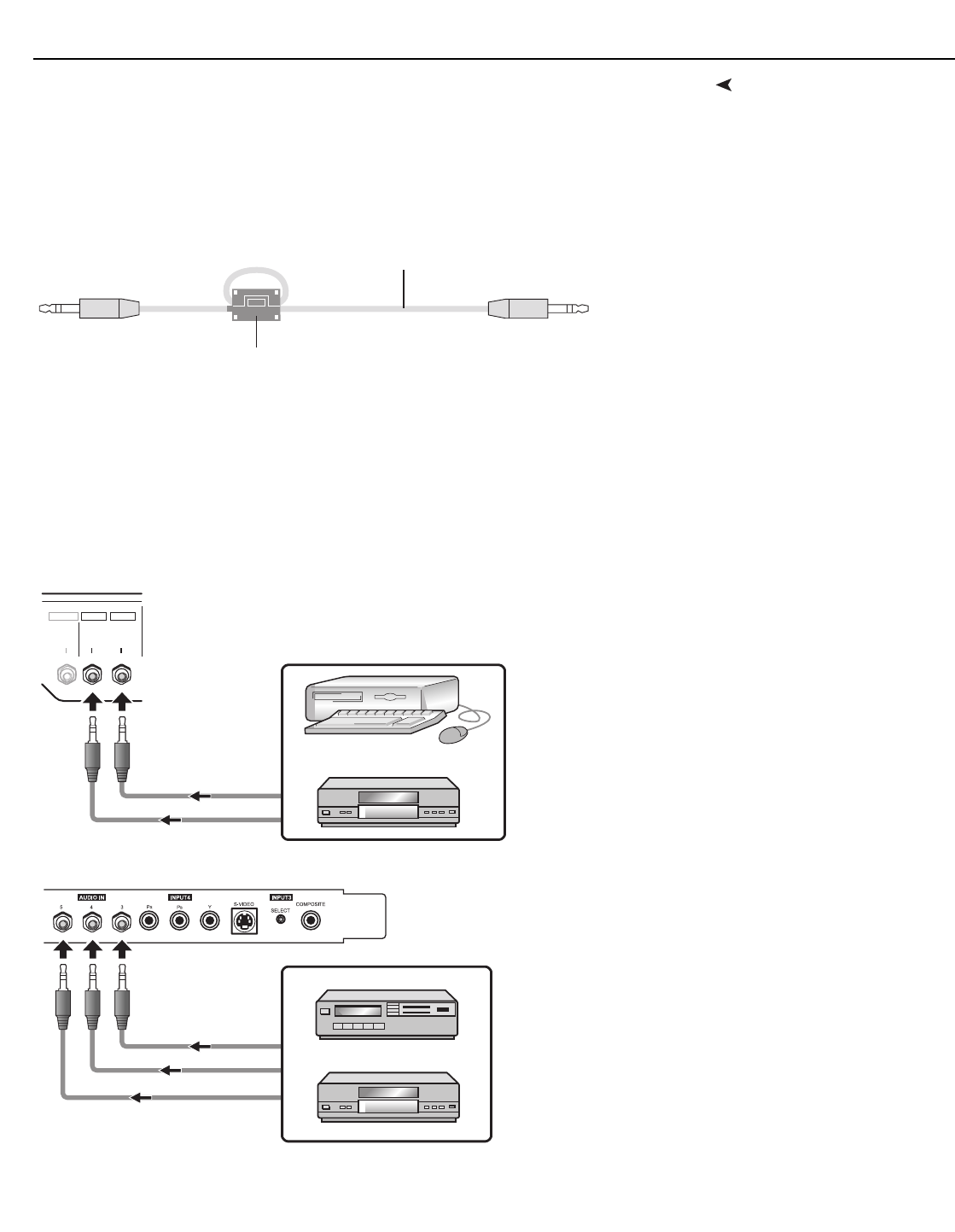

Figure 3-9. Attaching the Small Ferrite Cores to Audio Cables
Audio Inputs: The CinemaWall has five (5), stereo audio inputs; each one corresponds to
a video input.
Connect the audio outputs from your source components to these inputs using a cable
with a stereo miniplug at the CinemaWall end and the appropriate connector(s) (stereo
miniplug or dual RCA plugs) at the other end; see
Figure 3-10.
Figure 3-10. Connecting Audio Inputs
Small Ferrite Core
Audio Cable (not supplied)
AUDIO
INPUT1
AUDIO
INPUT2
AUDIO
OUTPUT
INPUT 1 / INPUT 2
INPUT 5 / INPUT 4 / INPUT 3
COMPONENT
