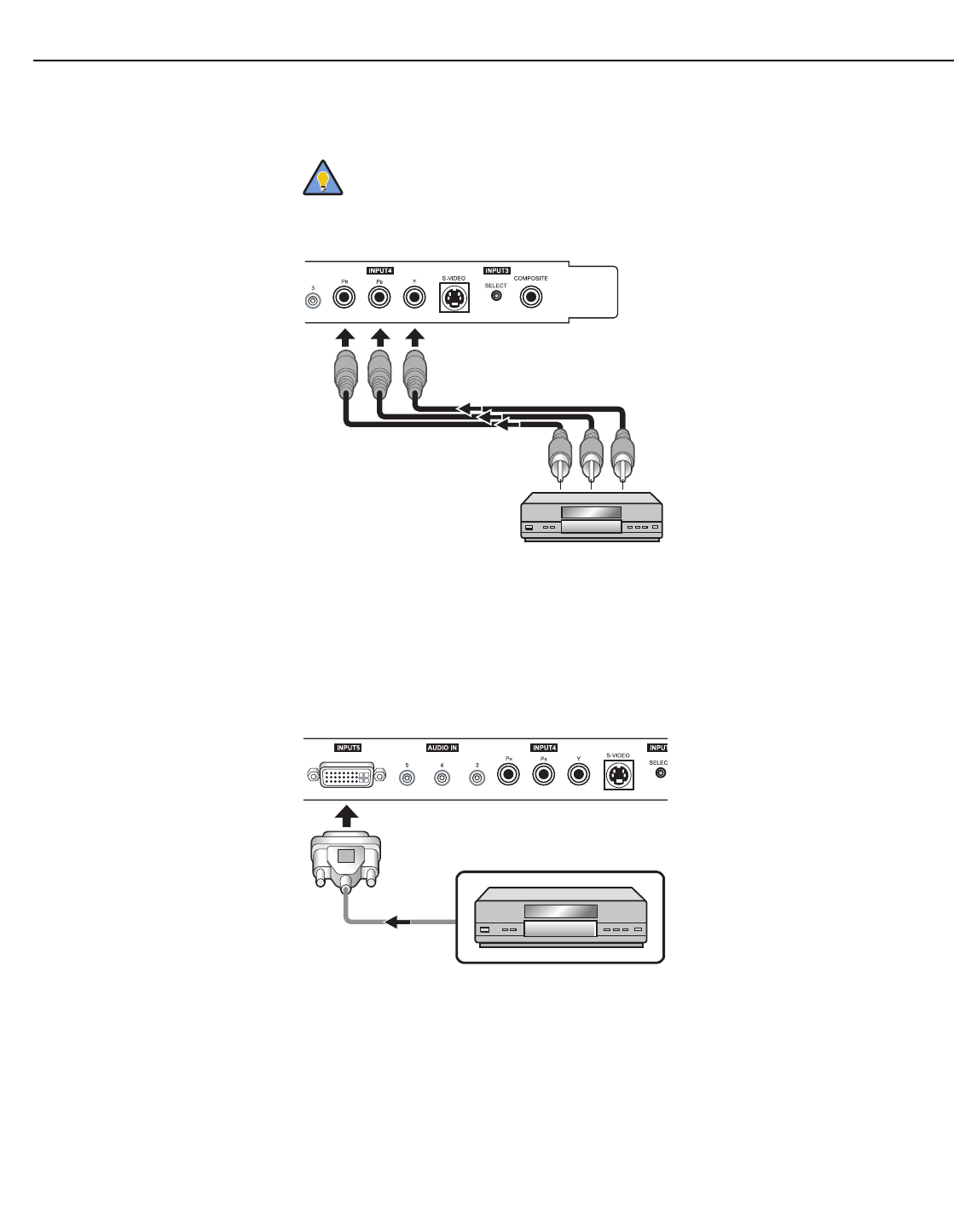

Component Video (INPUT 4) Connection: If you have a DVD player or DTV decoder
with a component (YPbPr) output, connect it to INPUT 4 as shown in
Figure 3-7.
Figure 3-7. Component Video (INPUT 4) Connection
DVI-D Video (INPUT 5) Connection: The CinemaWall has a DVI-D input for connecting
a DVD player, DTV decoder or any other device with a DVI output (computer signals are
not supported). Connect such devices to INPUT 5 as shown in
Figure 3-8. Use a 24-pin,
DVI-D (digital only) cable.
Figure 3-8. DVI-D (INPUT 5) Connection
For best results, use INPUT 4 for 480p and higher-resolution sources
only. (Use INPUT 3 for standard-definition (480i) sources).
Tip
COMPONENT
DVI VIDEO
COMPONENT
