A ANALOG AERIAL IN/OUT jacks
(18)
B LINE 2 OUT (R-AUDIO-L/VIDEO)
jacks (22, 25)
C LINE 1/DECODER jack (34)
D G-LINK jack (20)
Connect the set top box controller to this
jack.
E DIGITAL AERIAL IN/OUT jacks
(18)
F HDMI OUT (high-definition
multimedia interface out) jack
(22, 25)
G DIGITAL OUT (COAXIAL) jack
(25)
H AC IN terminal (27)
I LINE 3 – TV jack (22)
J LINE 2 OUT (S VIDEO) jack (22)
K COMPONENT VIDEO OUT
(Y, P
B/CB, PR/CR) jacks (22)

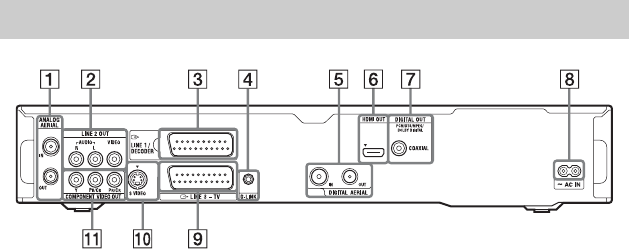

Rear panel
