Sony RDR-HXD890 DVD Recorder User Manual



35
Hookups and Settings
Connect a VCR or similar recording device to the LINE 2 IN jacks of this recorder. If the
equipment has an S-video jack, you can use an S-video cord instead of an audio/video cord.
z Hint
When the connected equipment outputs only monaural sound, connect to only the L(MONO) and VIDEO
input jacks on the front of the recorder. Do not connect the R input jack.
b Notes
Do not connect the yellow LINE IN (VIDEO) jack when using an S-video cord.
Do not connect the output jack of this recorder to another equipment’s input jack with the other
equipment’s output jack connected to the input jack of this recorder. This may cause noise (feedback).
Do not connect more than one type of video cord between the recorder and your TV at the same time.

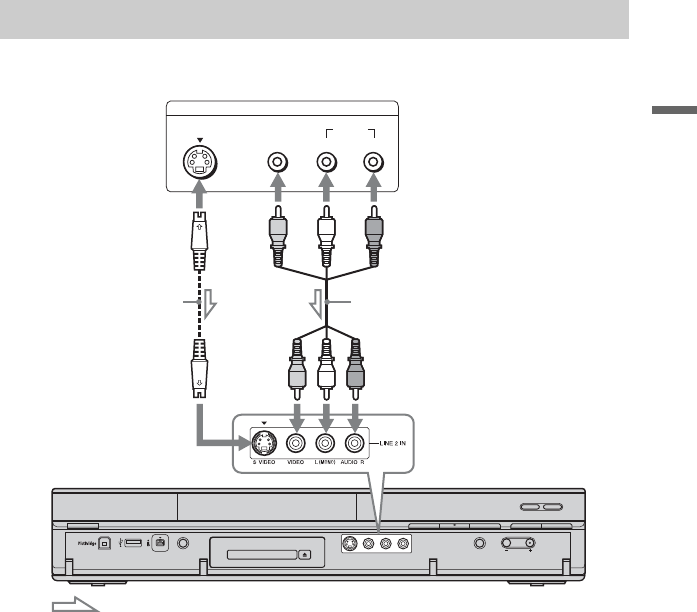

Connecting to the LINE 2 IN jacks on the front panel
OUTPUT
S VIDEO
AUDIO
LR
VIDEO
VCR, etc.
Audio/video cord
(not supplied)
S-video cord
(not supplied)
DVD recorder
: Signal flow
to LINE 2 IN
