Chapter 12
106
Connecting the Phone Line
Phone System Setup
You must also set up the receiver for your telephone system (touch tone or rotary), and set
a telephone number prefix, if you need a prefix to make an outside call.

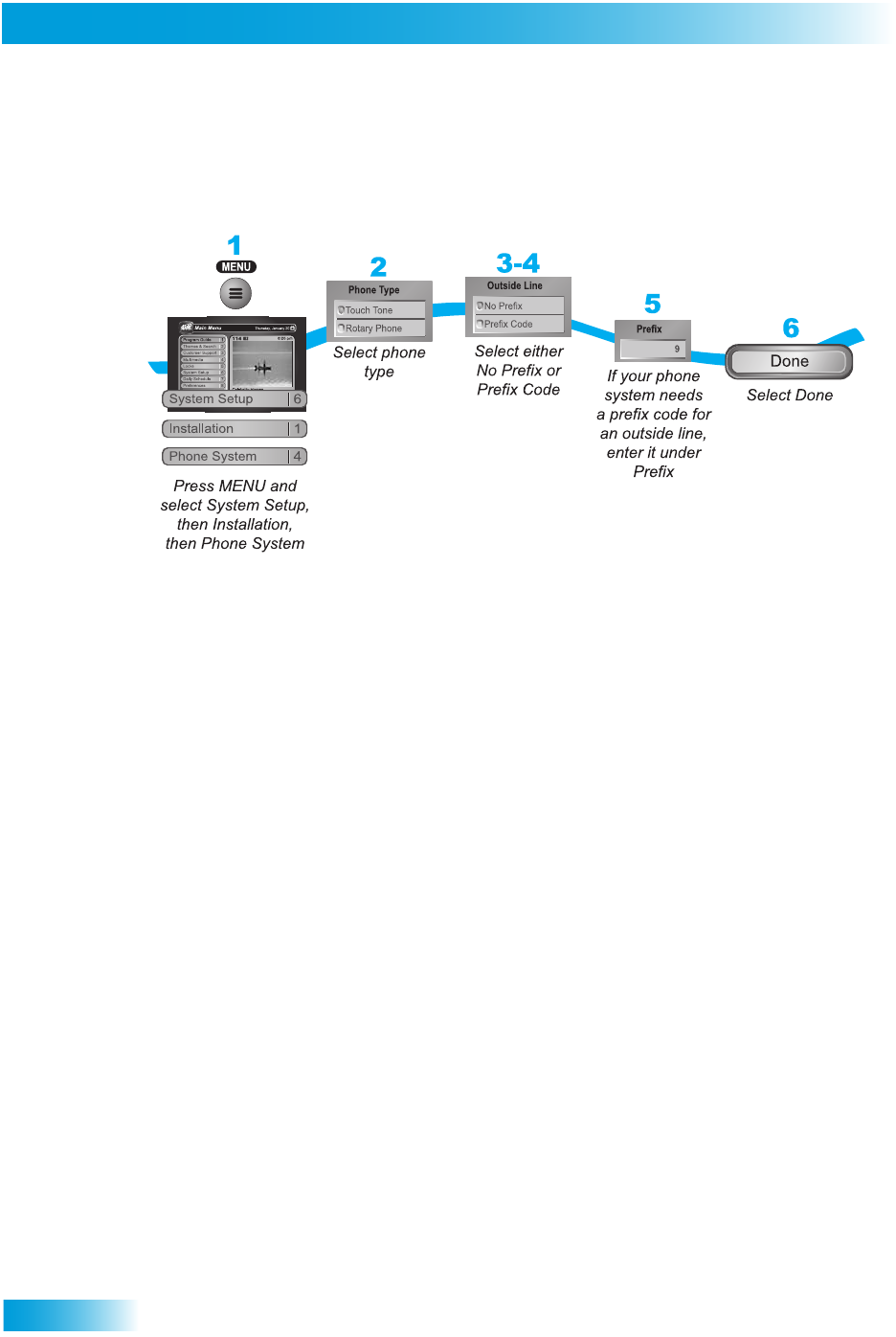

1 Pressing MENU, then select System Setup (6), Installation (1), and then
Phone System (4).
2 Select the Touch Tone or the Rotary Phone option in the Phone Type list.
3 Select either the No Prefix or the Prefix Code option in the Outside Line Prefix list.
Note: Usually, you need a telephone number prefix only for business installations. For
most residential installations, all you need to do is set the telephone system type. The
default setting of No Prefix will allow correct dialing. If this is the case, select the Save
option to save the above setting, and stop here. If you do need to set a prefix, then instead
of selecting the Save option, go on to step 5.
4 If you selected No Prefix, select Done.
5 If you selected Prefix Code, the receiver highlights the box where you must enter the exact
sequence you dial the phone to obtain an outside line.
6 Select Done.
Chapter 12 Two Color.fm Page 106 Tuesday, December 20, 2005 2:12 PM
