Using the remote controlDX-26L100A13

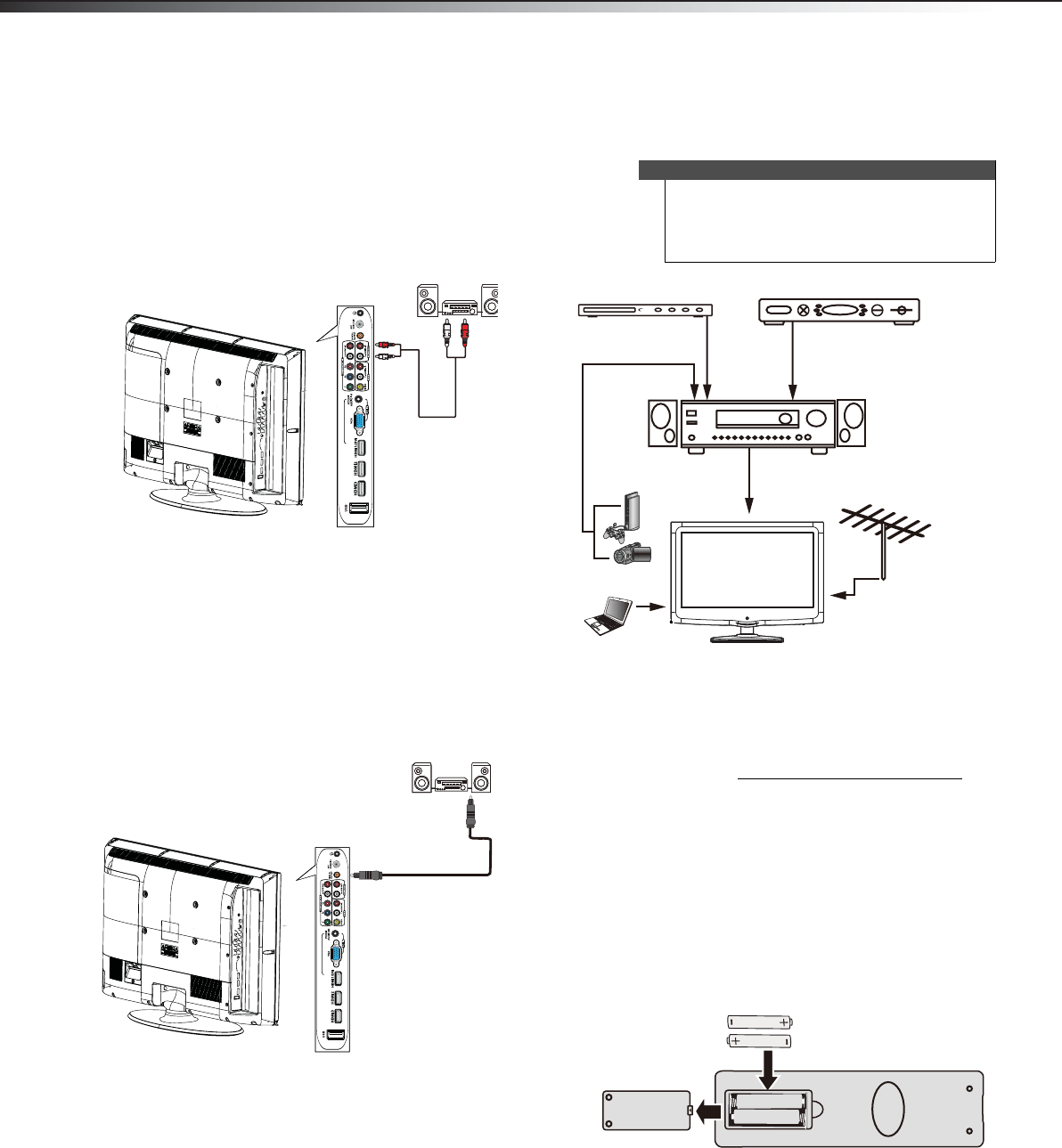

Connecting a basic home theater system
To connect a basic home theater system using analog
audio:
1 Make sure that your TV’s power cord is unplugged
and the home theater system is turned off.
2 Connect an analog audio cable (not provided) to the
L/R (audio out) jacks on the side of your TV and to
the AUDIO IN jacks on the home theater system.
To connect a basic home theater system using digital
audio:
1 Make sure that your TV’s power cord is unplugged
and the home system is turned off.
2 Connect a digital coaxial audio cable (not provided)
to the DIGITAL OUTPUT jack on the side of your TV
and to the DIGITAL AUDIO IN jack on the home
theater system.
Connecting a home theater system with
multiple devices
The connections you make depend on the video and
audio jacks available on your devices. Refer to the
documentation that came with your devices for
connection information.
Remember to use the best connection types available for
the best picture and sound. For information about
connection types, see “What connection should I use?
” on
page 7.
Using the remote control
Installing remote control batteries
To install the remote control batteries:
1 While pressing the cover release latch on the back of
the remote control, lift the cover off the remote
control.
2 Insert two AAA batteries into the battery
compartment. Make sure that you match the + and –
symbols on the batteries with the + and – symbols in
the battery compartment.
Side of TV
Home theater system
Analog audio cable
Side of TV
Home theater system
Digital coaxial audio cable
Notes
We recommend that you connect the AV receiver’s
HDMI OUT jack to one of your TV’s HDMI IN jacks.
Then, connect the AV receiver’s DIGITAL AUDIO
INPUT jack to your TV’s DIGITAL OUTPUT jack to
route Dolby Digital audio.
