Dynex DX-32L100A13 Flat Panel Television User Manual



Making connections
11
DX-32L100A13

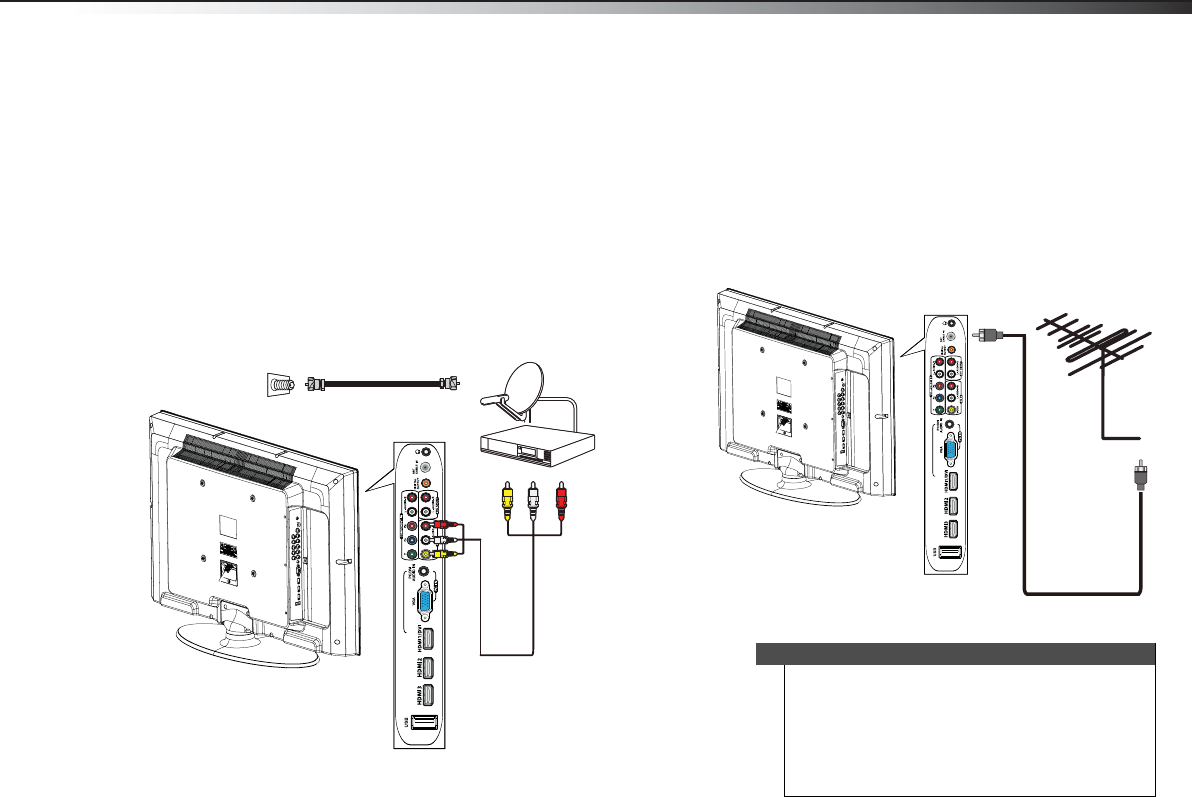

Using composite video (good)
To connect a cable or satellite box using composite
video:
1 Turn off your TV and all connected equipment.
2 Connect the incoming cable from the cable wall jack
to the cable-in jack on the cable or satellite box.
3 Connect a composite (A/V) cable (not provided) to
the VIDEO IN jack and L/R AUDIO jacks on the side
of your TV and to the composite video and audio out
jacks on the cable or satellite box.
4 Turn on your TV, then turn on the cable or satellite
box.
Connecting an antenna or cable TV (no
box)
To connect an antenna or cable TV (no box):
1 Turn off your TV and all connected equipment.
2 Connect a coaxial cable (not provided) to the
ANT/CABLE IN jack on the side of your TV and to the
antenna or cable TV wall jack.
3 Turn on your TV.
Side of TV
Cable or satellite box
Composite cable
Cables are often
color-coded to match
color-coded jacks.
75 ohm coaxial cable
Notes
Use a coaxial cable to eliminate interference and
noise from radio waves.
Do not bundle the coaxial cable with the power
cord or other cables.
If the antenna is not installed correctly, contact
qualified service personnel to correct the
problem.
Side of TV
Coaxial cable
