CONNECTION – Connecting to editing sytem –
BR-DV6000 is equipped with 2 remote terminals, for the JVC bus and RS-422A for editing pur-
poses.
Ⅵ When a JVC bus-compatible editing remote controller is used:
For the editing remote controller, use RM-G800 or RM-G805.

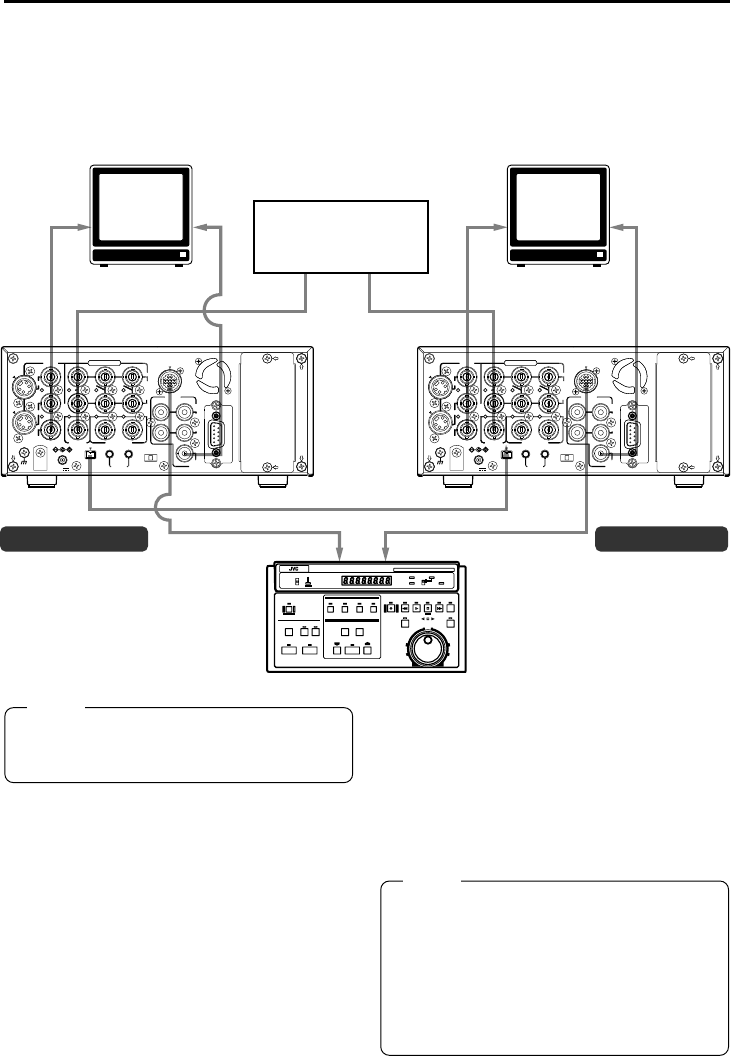

Example: BR-DV6000 as player and recorder for cut editing of digital signals.
Note
Before connecting the cables for remote ter-
minals, ensure that the power to the VCR is
turned off.
Ⅵ Remote extension cable
To extend the cables for the remote terminals,
use the extension cable VC-G8030U (3m) (sold
separately).
Ⅵ DV cable
Use VC-VDV204 (2 m, 4P-4P) or VC-VDV206
(2 m, 4P-6P) (sold separately).
Ⅵ Related VCRs
● VHS/S-VHS VCR
No input/output of DV signals is possible.
BR-S800 + (SA-N50)
BR-S500 (player) + (SA-N50)
● DV VCR
BR-DV600/A
MonitorMonitor
Synchronized
signal generator
DV cable (video/audio)
Remote cableRemote cable
Player Recorder
Note
● If RM-G800 is to be used, check whether the (x)
mark is printed on the label at the bottom of the
unit.
If there is no (x) mark, modification is required.
Consult your JVC service agent.
● For the use of RM-G800/G805, there are cer-
tain regulations regarding Electro-Magnetic
Compatibility (EMC). Consult your JVC service
agent.
