INTRODUCTION
PREPARATION WATCHING TV
USING FUNCTIONS OPERATING DVD
CONNECTING DEVICES
INFORMATION USEFUL TIPS
English

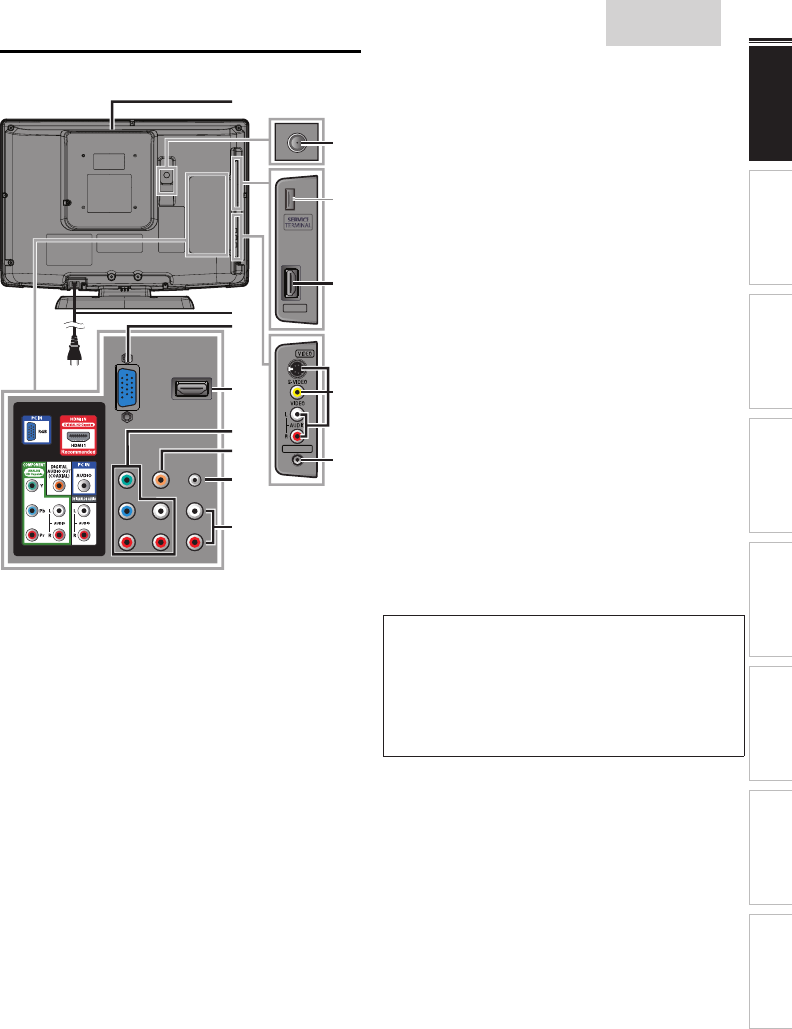

Terminals
HDMI 2
HDMI 2
TERMINAL
HEAD PHONE
HEAD PHONE
*
14
13
12
15
16
19
21
20
22
18
17
23
Side Panel
12 HDMI 2 Input jack
➠
p. 12, 34
13 S-Video / Composite Video / Audio (L/R) Input jacks
for VIDEO
➠
p. 34, 35
14 Headphone Audio Output jack
Headphone connection for personal listening.
Rear Panel
15 Antenna Input jack
➠
p. 12
16 Disc loading slot
➠
p. 29
17 AC power cord
➠
p. 12
18 PC (VGA) Input jack
➠
p. 35
19 HDMI 1 Input jack
➠
p. 12, 34
20 Component Video and Audio (L/R) Input jacks
➠
p. 12, 34
21 Digital Audio Output jack
➠
p. 35
22 Analog Audio (L/R) Input jack for PC connection
➠
p. 35
Mini-plug audio cable connection from PC.
23 Analog Audio (L/R) Input jacks for HDMI 1
➠
p. 34
Audio cable connection from a DVI device.
(For HDMI 1 Input jack only)
Note for service terminal
*
service terminal (service use only)
• Use this terminal only when a software update is necessary.
• User should not connect any devices to the service terminal such
as digital camera, keyboard, mouse, etc. (because these will not
work).
• The software update is, in most cases, handled by an authorized
service person or in some circumstances the user may be asked
to do the software update themselves.
