34
CONNECTING DEVICES
No supplied cables are used with these connections:
• Please purchase the necessary cables at your local store.
Before you connect:
Be sure other device is connected properly before plugging in
the AC power cord.

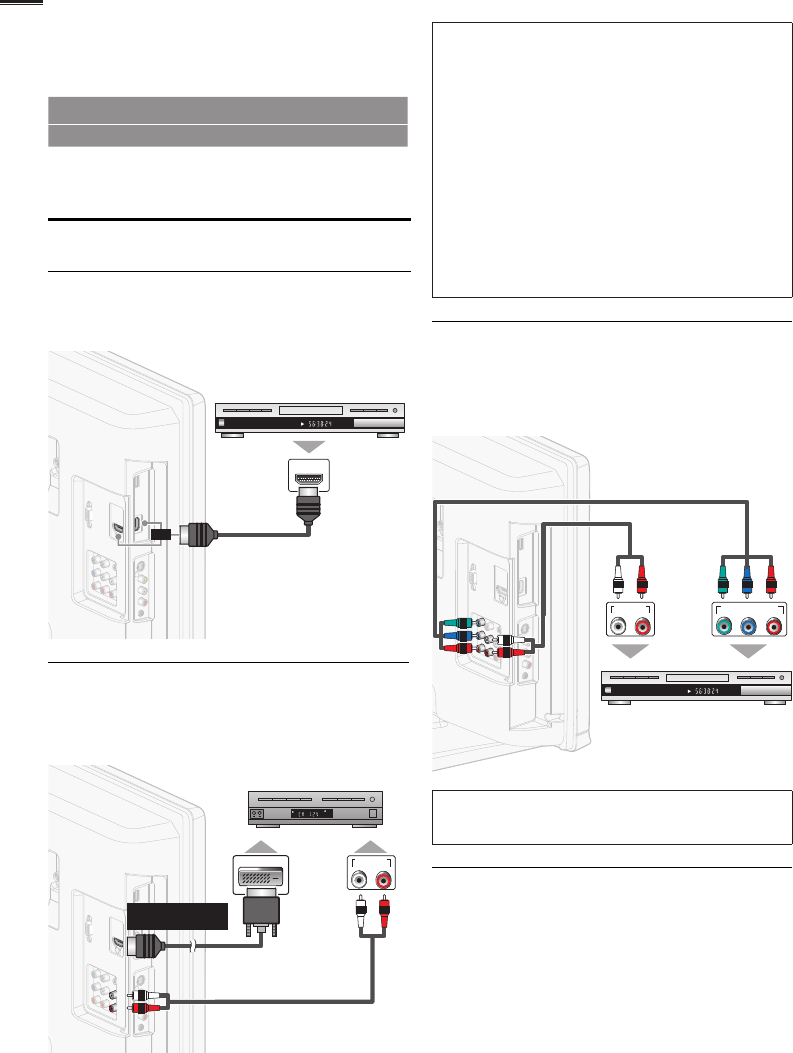

External Device Connection
HDMI Connection
HDMI connection offers the highest picture quality.
HDMI
(High-Defi nition Multimedia Interface) transports high defi nition
digital video and multi-channel digital audio through a single cable.
HDMI OUT
CHAPTER 15
REPEAT A-B
TITLE 5
BD/DVD recorderBD/DVD recorder
with the HDMI output jackwith the HDMI output jack
HDMI cableHDMI cable
or
HDMI-DVI Connection
Use an HDMI-DVI conversion cable to connect the unit to
external video devices equipped with DVI output jack.
(Use HDMI 1 Input jack only and Audio L/R below HDMI 1
Input jack on rear of TV.)
STEREO
PCM
DVI OUT
AUDIO OUT
RL
HDMI-DVI HDMI-DVI
conversion cableconversion cable
cable receiver or satellite box cable receiver or satellite box
with the DVI output jackwith the DVI output jack
audio cablesaudio cables
To HDMI 1 Input
jack only
Note
• Use an HDMI cable with the HDMI logo (a certifi ed HDMI cable).
High Speed HDMI cable is recommended for the better
compatibility.
For HDMI connection (use HDMI 1 or 2 jack)
• The unit accepts 480i, 480p, 720p, 1080i and 1080p 24/60 Hz of
video signals, and 32kHz, 44.1kHz and 48kHz of audio signals.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select "PCM" for the digital audio of the device you
connected or check the HDMI audio setting. There may be no
audio output if you select "Bitstream", etc.
• This unit accepts only signals in compliance with EIA861.
For HDMI-DVI connection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI connection requires separate audio connections as well
and the audio signals are converted from digital to analog.
• DVI does not display 480i image which is not in compliance with
EIA/CEA-861/861B.
Component Video Connection
Component Video connection offers better picture quality for
video devices connected to the unit.
If you connect to the unit’s Component Video Input jacks,
connect audio cables to the Audio L/R Input jacks right beside
the Component Video connector.
CHAPTER 15
REPEAT A-B
TITLE 5
COMPONENT VIDEO OUT
Pr/CrPb/CbY
AUDIO OUT
RL
(red)(red)(blue)(blue)(green)(green)
BD/DVD recorderBD/DVD recorder
with the component video output jackswith the component video output jacks
audio cablesaudio cables
component video cablescomponent video cables
(red(red
/ /
blueblue
/ /
green)green)
Note
• The unit accepts 480i / 480p / 720p and 1080i of video signals for
this connection.
S-Video Connection
S-Video connection offers good picture quality for video
devices connected to the unit.
If you connect to the unit’s S-Video Input jack, connect audio
cables to the Audio L/R jacks below the Video connector.
