Panasonic DMR-ES35V DVD Recorder User Manual



12
RQTV0136
STEP 1 Connection
Please read “IMPORTANT SAFETY INSTRUCTIONS”. (l 2)
Before connection, turn off all equipment and read the appropriate operating instructions.
Connect in the following order
(1) Aerial lead (not supplied)
(2) RF Coaxial cable (supplied)
(3) Audio/Video cable (supplied)
(4) AC mains lead (supplied)
Connect the unit directly to the television
If you connect the unit to the television through an AV selector or a video
cassette recorder, the video signals will be affected by copyright protection
and the picture may not be shown correctly.
When connecting the unit to a television with a built-in VCR, connect to
the input terminals on the television, not the VCR.
Connection examples with other equipment
For your reference
The equipment connections described are examples.
Peripheral equipment and optional cables are sold separately unless
otherwise indicated.
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. The unit consumes a small amount of power even when it is turned off.
Standby power consumption
When “Power Save” is set to “On”, the “Quick Start” function does not work.
Quick Start (l 59)
1 Sec. Quick Start for Recording on DVD-RAM
¢
¢
From the power off state, recording on DVD-RAM starts about 1 second after first pressing the [Í, DVD/VHS] and then sequentially pressing the
[¥, REC] (Quick Start Mode).

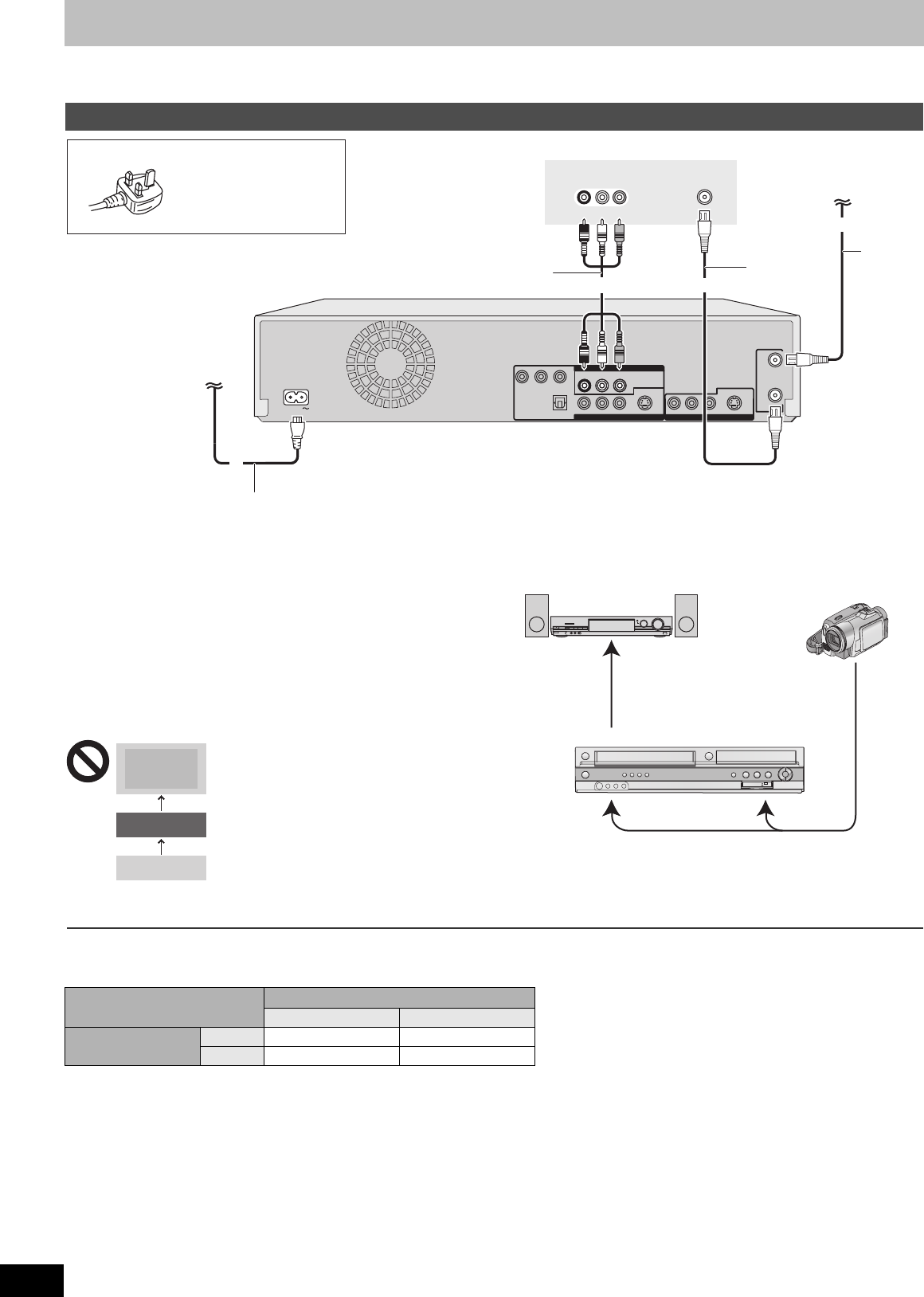

Connecting a TV
R-AUDIO-L
VIDEO
R-AUDIO-L
VIDEO
S VIDEO
Y
P
B
PR
OPTICAL
COMPONENT VIDEO OUT (NTSC: 480p /480i PAL: 576p /576i)
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
DVD/VHS COMMON OUT
RF
OUT
RF
IN
R-AUDIO-L
VIDEO
AV 1 IN
S VIDEO
AC IN
DVD PRIORITY OUT
A
VHF/UHF
RF IN
AUDIO IN
VIDEO
IN
RL
Red White
Red White
Yell
ell
owRed White Yellow
(1)
(2)
To RF IN
To
To
DVD/VHS COMMON OUT
DVD/VHS COMMON OUT
To
DVD/VHS COMMON OUT
Television
This unit’s rear panel
Audio/Video cable
(Supplied)
To RF OUT
To household
Mains socket
BE SURE TO READ
THE CAUTION FOR
THE AC MAINS LEAD
ON PAGE 2 BEFORE
CONNECTION.
AC mains lead
(Supplied)
Connect only after all other connections are complete.
Use the AC mains lead that matches the socket for your area you live in.
RF coaxial
cable
(Not
Supplied)
(Supplied)
Aerial
leadl
Cable from wall or
antenna signal
(3)
(4)
Red White
Red White
Yell
ell
owRed White Yellow
[For[Saudi[Arabia]
[For[the[Middle[East]
(AC 220 V to 240 V,
50/60 Hz)
(AC 220 V to 240 V, 50 Hz)
[For[Asia[and[the[Middle[East]
[For[Australia[and[New[Zealand]
TV
VCR
The unit
Amplifier (l 13) Video camera (l 50)
The unit
From the AUDIO/VIDEO OUT terminal
or the DIGITAL AUDIO OUT terminal
To AV2 input terminals (front) To DV IN input terminal (front)
FL Display (l 58)
Bright/Dim Auto
Quick Start (l 59)
On Approx. 7.0 W Approx. 6.8 W
Off Approx. 2.6 W Approx. 2.5 W
