Connecting and configuring a room control
system
Connect a computer to the room control input on the interactive flat panel to remotely select video
inputs, turn on orturn off your interactive flat panel and request information such as contrast, power
state and current settings.
Connecting a computer to an interactive flat panel
To connect a computer to your interactive flat panel

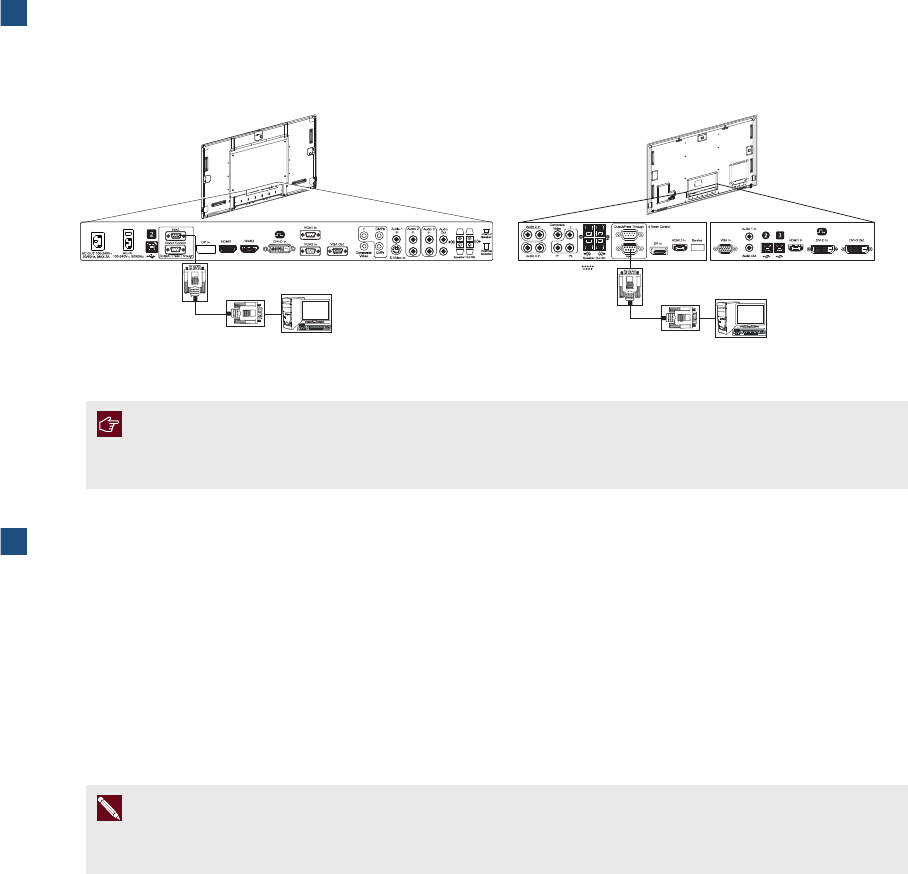

Connect an RS-232 cable from the serial output on your computer to the room control input on
the bottom connector panel.
8070i-G4-SMP 8084i-G4-SMP
I M P OR T A N T
Do not use a null modem cable. Use only a standard RS-232 cable.
To connect a computer to multiple interactive flat panels
1. Connect an RS-232 cable from the serial output on your computer to the room control input on
the bottom connector panel of the first interactive flat panel.
2. Connect an RS-232 cable from the room control output of the first interactive flat panel to the
room control input of the second interactive flat panel.
3. Connect an RS-232 cable from the room control output of the second interactive flat panel to the
room control input of the third interactive flat panel.
N OT E
Up to three interactive flat panels can be connected.
