62
10.1.4 Change the Record & Timer Properties Via the Network
Follow the instructions below to reconfigure the record and schedule recording settings via the
network.

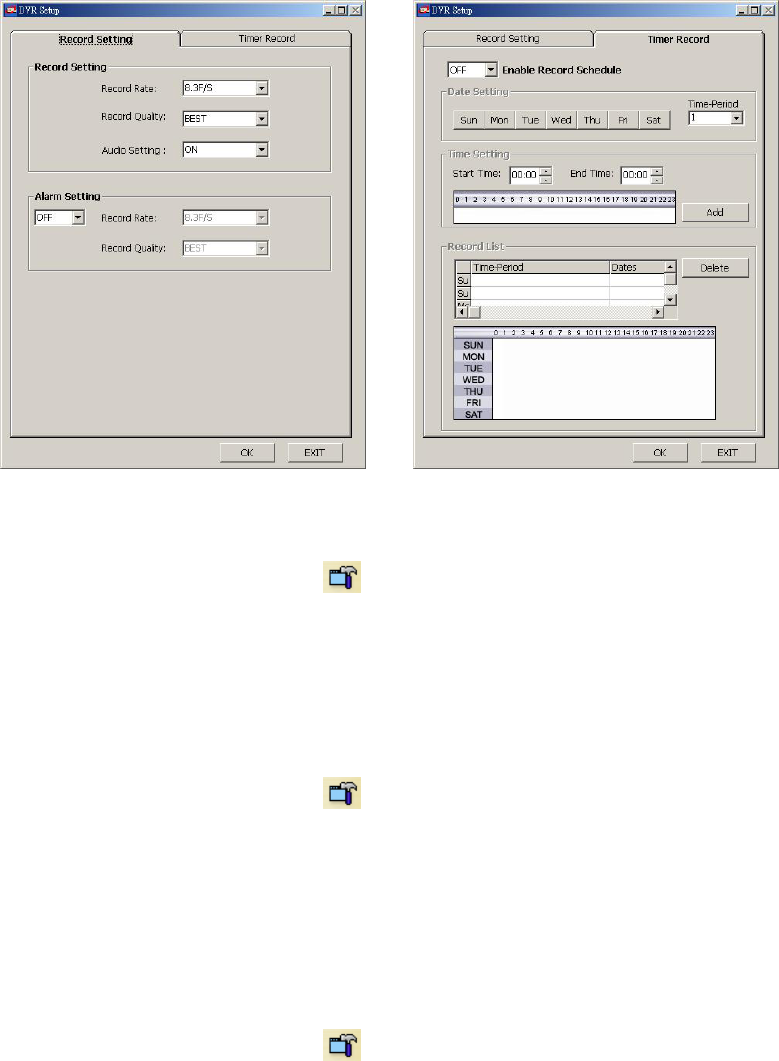

A. B.
Set the regular record settings
1. When in the single –device mode, click to enter the SETUP page. (See the sample screen as in
A above)
2. Select a desired recording rate and Quality from the corresponding drop-down list
3. Click the
OK tag to proceed.
Set the Alarm record settings
1. When in the single –device mode, click
to enter the SETUP page. (See the sample screen as in
A above)
2. Set the ALRM SETTING to ON to enable the drop-down list in the ALARM SETTING area.
3. Select a desired recording rate and Quality from the corresponding drop-down list.
4. Click the OK tag to proceed.
Set the Record Schedule
1. When in the single –device mode, click
to enter the SETUP page. (See the sample screen
as in B above)
2. Set the
Record Schedule to ON to enable the Record Schedule setting area.
3. Click the
Time-Period button to set the schedule for recording for each day. Go to both the START
TIME
& END TIME boxes, enter a specific Hour: Minute and click Add button to add to the Record
List
.
4. When all required settings are completed, click
OK to proceed.
