2. DESCRIPTION OF THE FRONT/REAR VIEW

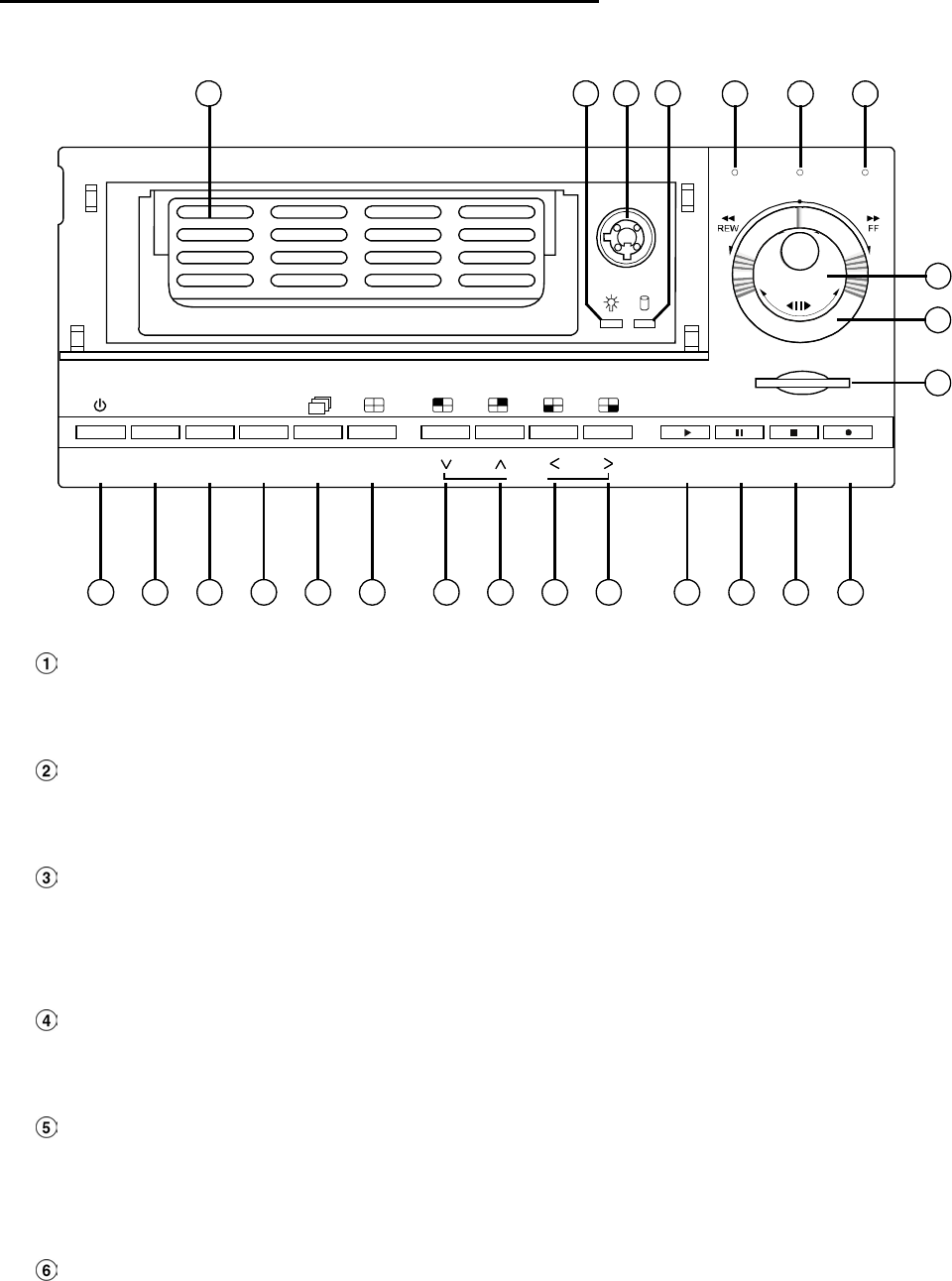

2.1 Front View
A-rec T-recDISK
1 223 24
Power
7
Search
10
Seq.
/Save
16
Setup
9 11 1413 12
Enter
15
Display
8
18
20
19
21
17
Play
4
Pause
3
Stop
5
SD Card
Rec
6
22
ZOOM
Hard-disk drive compartment.
This compartment houses the removable (hot-swappable) hard disk drive.
NOTE: The compartment must be locked before the hard drive can be used.
Hard disk compartment lock:
The key lock secures a hard disk in place. Unlock the compartment before you remove the hard
disk cartridge from the unit.
PAUSE button:
Press the PAUSE button to pause the video during playback. Pressing the PAUSE button while in
the PAUSE MODE will advance the video by one frame.
The green “PAUSE” LED will be illuminated.
PLAY button:
Press the PLAY button to play recorded video from the hard disk.
The green LED under the “PLAY” button will be illuminated.
STOP button:
Press the STOP button to stop the playing of video during playback, or stop recording during a
manual record.
The green LED under the “STOP” button will be illuminated.
REC button:
Press the REC button to start manually recording video onto the hard disk while viewing live
video display mode.
The red LED under the REC button will be illuminated.
