AXIS P7701 - Video & Audio
Video & Audio

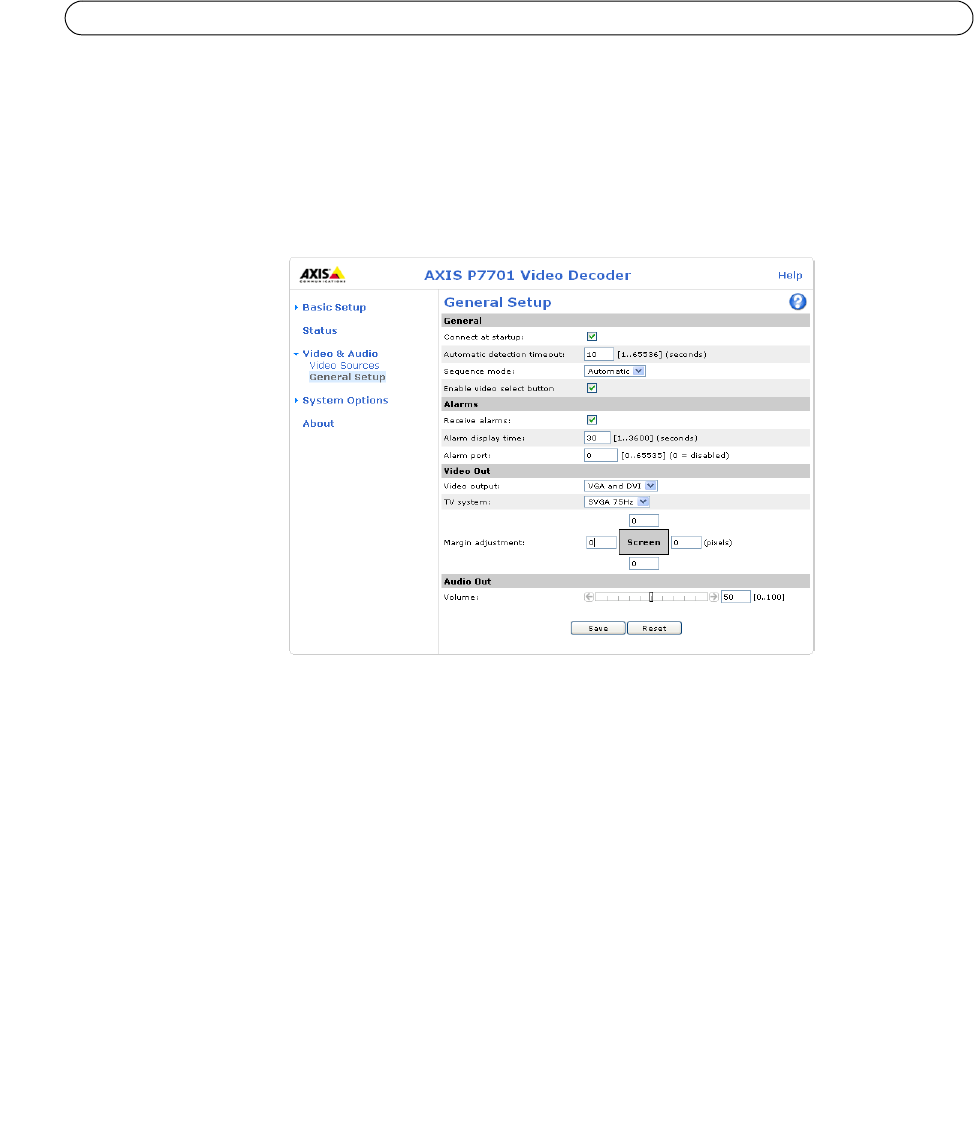

General Setup
This page provides settings for configuring the start up mode, alarm notification, video and audio output.
General
Connect at startup - When selected, the AXIS P7701 will automatically connect to the first video source in the video source
list at startup. When unselected, it will stay disconnected and wait for user input or alarms.
Automatic detection timeout - This defines how long time the decoder will wait for a video source to respond before it goes
to the next video source in the sequence.
Sequence mode - When set to Automatic, the AXIS P7701 automatically cycles through the video sources in the list on the
Video Sources page. In Manual mode, the next source is displayed when the video select button is pressed. See page 14 for
more information.
Video select button - Enables or disables the video select button.
Alarm
The AXIS P7701 can automatically switch to a video source that sends an alarm. See page 15 for more information.
Video Out
TV system - Select the TV system type to use. If you are using an analog monitor or television, most western European
countries use the PAL system, whereas the system in the United States is NTSC. For digital monitors and HDMI ready
televisions, the AXIS P7701 supports a resolution of up to 720p.
Consult the user documentation for your device to select a suitable resolution to set for TV system.
Video output - If you are using the RCA connector select Composite, otherwise select VGA and DVI if you are connecting
your device to the AXIS P7701 via the DVI-I connector.
