2. Installation requirements
185
12
1
1
0
210
1
6
0
A
B
C

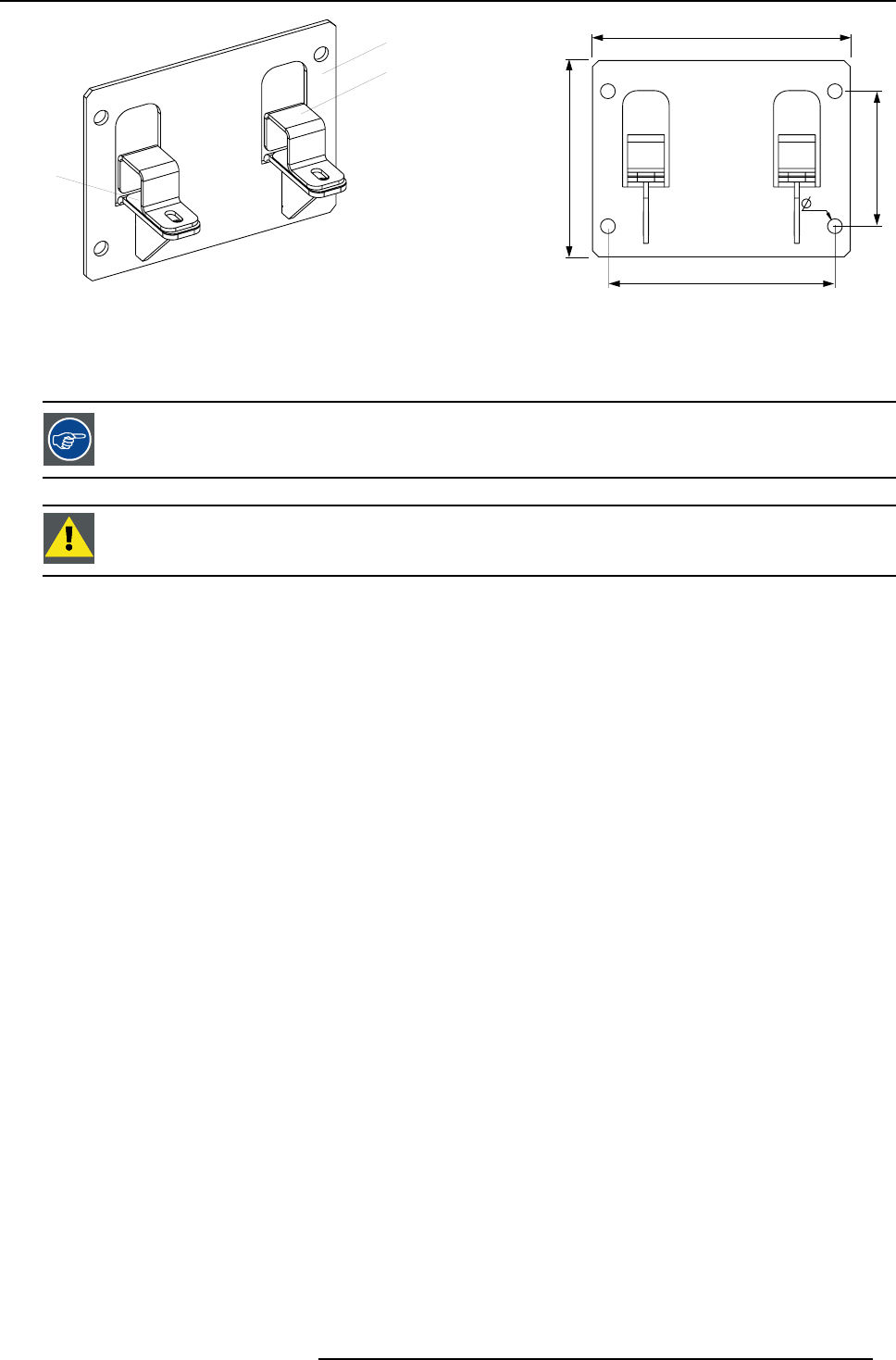

Image 2-2
Fixation plate with fixation brackets and shim plates (2 pieces: R9851450). Dimensions given in millimeters
.
A Fixation plate.
B Fixation bracket.
CShimplate.
It’s recommended to integrate a service platform in the support structure. Such a platform allows a fast and
easy intervention, if required.
CAUTION: A lot of energy is transferred into heat, which requires a certain amount of airflow at the rear of the
ILite display. For that sufficient free spaceshould be available be
hind the display toensure a good ventilation.
The higher the display the more free space is required.
R5976522 FIXED ILITE DISPLAY 17/11/2006 9
